RAM Adapter Round Base With Ball

20 Reviews 2 Answered Questions
$9.50/Each
Quantity
Add to Wishlist
Part# 11-07069
MFR Model# RAM-B-202U

Overview

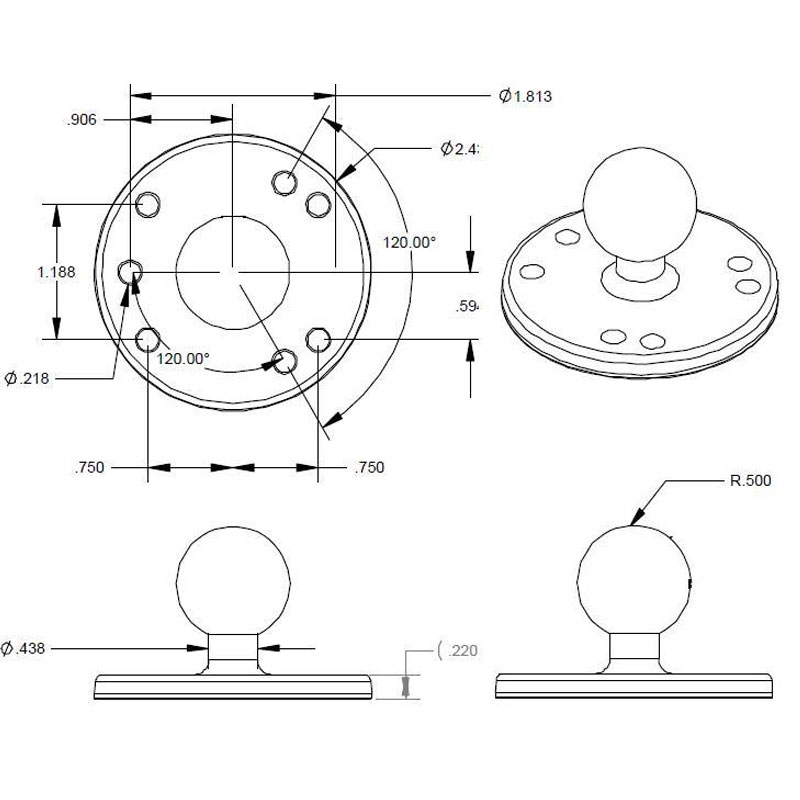

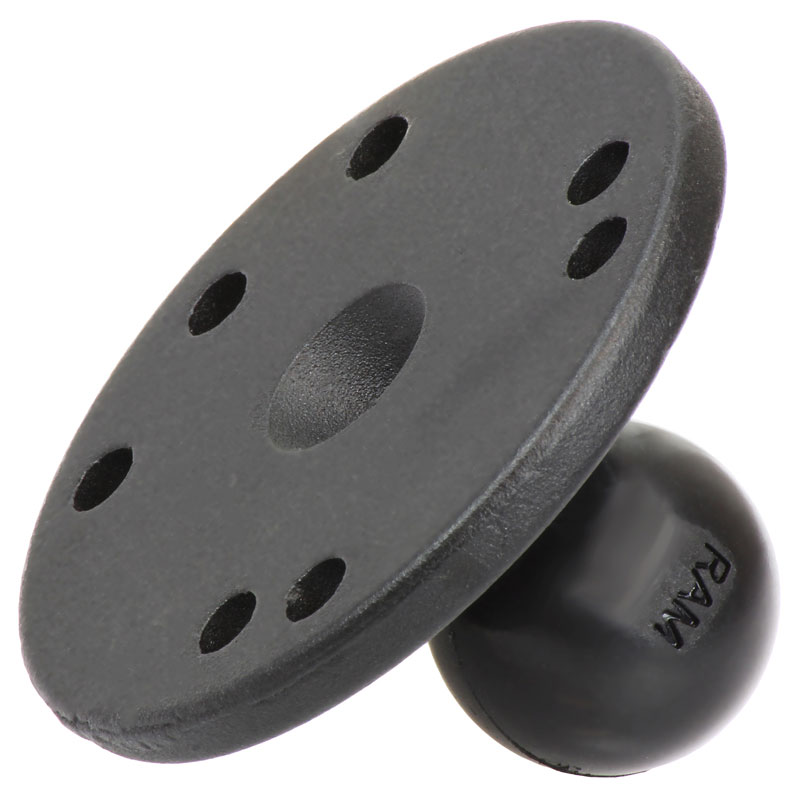

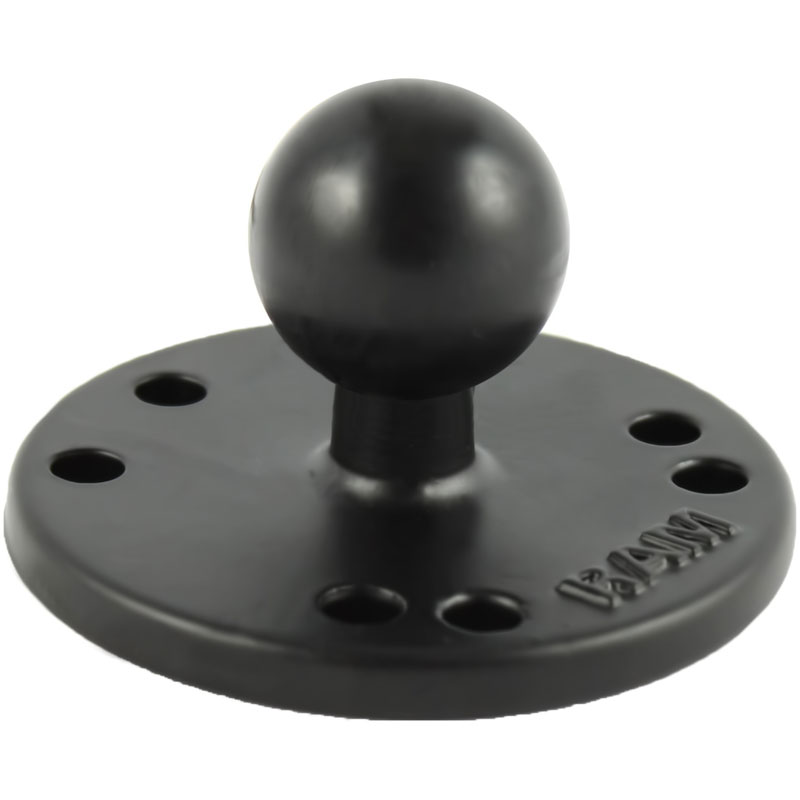

The (RAM-B-202U) RAM marine grade aluminum base contains a 1" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • Material: Powder Coated Marine Grade Aluminum
  • Ball Size: 1" Rubber Ball "B" Size
  • Note: Product packaged in poly bag. The RAM-B-202U will attach to any RAM composite cradle; however, the RAM-B-238U (part number 11-00471) is most commonly used.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Rickey S Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
November 30, 2022

Lindsey L Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
October 27, 2022

as described

Joe C Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
October 4, 2022

Brad W Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
March 16, 2022

Just what I needed to fit my XNAUT Cooling Pad to my panel.

Herbert S Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
January 21, 2022

Darren B Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
September 17, 2021

Very useful and sturdy

Valentine H Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
September 1, 2021

IPad yoke column mount, in conjunction with P/Ns 11-15889 and 11-01255, fast, easy installation. Ball attaches to cradle with 4 Phillip screws.

Lawrence L Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
August 19, 2021

Does the job - its a RAM!

D P Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
July 24, 2021

Gary B Verified Purchase

RAM ADAPTER 2-1/2" RND 1" BALL
June 28, 2021

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this come with the 4 mounting nuts and bolts?

No, this adapter does not come with the mounting hardware. Please see part # 11-04083 for the round base with mounting hardware.

Q: What ball size?

1 inch.
