AN526 MACHINE SCREWS
|
|
| Material | Thread | Length | Part No. | Phillips Price | Slotted Price | Sub-Total |
| Cad Plated | 4-40 | 1/4 | AN526-440R4 | $0.20 | - | |
| Cad Plated | 4-40 | 3/8 | AN526-440R6 | $0.07 | - | |
| Cad Plated | 4-40 | 1/2 | AN526-440R8 | $0.06 | - | |
| Cad Plated | 6-32 | 1/4 | AN526-632R4 | $0.05 | - | |
| Cad Plated | 6-32 | 5/16 | AN526-632R5 | $0.04 | - | |
| Cad Plated | 6-32 | 3/8 | AN526-632R6 | $0.06 | $0.14 | |
| Cad Plated | 6-32 | 7/16 | AN526-632R7 | $0.06 | - | |
| Cad Plated | 6-32 | 1/2 | AN526-632R8 | $0.06 | $0.11 | |
| Cad Plated | 6-32 | 9/16 | AN526-632R9 | $0.08 | - | |
| Cad Plated | 6-32 | 5/8 | AN526-632R10 | $0.07 | $0.54 | |
| Cad Plated | 6-32 | 3/4 | AN526-632R12 | $0.08 | $0.16 | |
| Cad Plated | 6-32 | 7/8 | AN526-632R14 | $0.05 | - | |
| Cad Plated | 6-32 | 1 | AN526-632R16 | $0.08 | $0.21 | |
| Cad Plated | 6-32 | 1-1/8 | AN526-632-R18 | $0.08 | $0.08 | |
| Cad Plated | 6-32 | 1-1/4 | AN526-632-R20 | $0.22 | $0.25 | |
| Cad Plated | 6-32 | 1-1/2 | AN526-632-R24 | $0.17 | - | |
| Cad Plated | 6-32 | 2 | AN526-632-R32 | $0.20 | - | |
| Cad Plated | 8-32 | 1/4 | AN526-832R4 | $0.08 | - | |
| Cad Plated | 8-32 | 5/16 | AN526-832R5 | $0.07 | - | |
| Cad Plated | 8-32 | 3/8 | AN526-832R6 | $0.07 | - | |
| Cad Plated | 8-32 | 7/16 | AN526-832R7 | $0.08 | - | |
| Cad Plated | 8-32 | 1/2 | AN526-832R8 | $0.07 | $0.46 | |
| Cad Plated | 8-32 | 9/16 | AN526-832R9 | $0.08 | - | |
| Cad Plated | 8-32 | 5/8 | AN526-832R10 | $0.08 | - | |
| Cad Plated | 8-32 | 3/4 | AN526-832R12 | $0.08 | $0.24 | |
| Cad Plated | 8-32 | 7/8 | AN526-832R14 | $0.09 | - | |
| Cad Plated | 8-32 | 1 | AN526-832R16 | $0.09 | $0.19 | |
| Cad Plated | 8-32 | 1-1/8 | AN526-832-R18 | $0.18 | $0.19 | |
| Cad Plated | 8-32 | 1-1/4 | AN526-832-R20 | $0.12 | $0.08 | |
| Cad Plated | 8-32 | 1-1/2 | AN526-832-R24 | $0.29 | - | |
| Cad Plated | 10-32 | 1/4 | AN526-1032R4 | $0.11 | - | |
| Cad Plated | 10-32 | 5/16 | AN526-1032R5 | $0.07 | - | |
| Cad Plated | 10-32 | 3/8 | AN526-1032R6 | $0.08 | - | |
| Cad Plated | 10-32 | 7/16 | AN526-1032R7 | $0.07 | - | |
| Cad Plated | 10-32 | 1/2 | AN526-1032R8 | $0.09 | $0.48 | |
| Cad Plated | 10-32 | 9/16 | AN526-1032R9 | $0.09 | - | |
| Cad Plated | 10-32 | 5/8 | AN526-1032R10 | $0.09 | $0.16 | |
| Cad Plated | 10-32 | 3/4 | AN526-1032R12 | $0.11 | $0.13 | |
| Cad Plated | 10-32 | 7/8 | AN526-1032R14 | $0.12 | - | |
| Cad Plated | 10-32 | 1 | AN526-1032R16 | $0.13 | $0.32 | |
| Cad Plated | 10-32 | 1-1/8 | AN526-1032R18 | $0.13 | $0.20 | |
| Cad Plated | 10-32 | 1-1/4 | AN526-1032R20 | $0.16 | - | |
| Cad Plated | 10-32 | 2 | AN526-1032R32 | $0.52 | - | |
| Stainless | 4-40 | 1/2 | AN526C-440R8 | $0.08 | - | |
| Stainless | 6-32 | 1/4 | AN526C-632R4 | $0.07 | $0.26 | |
| Stainless | 6-32 | 3/8 | AN526C-632R6 | $0.07 | - | |
| Stainless | 6-32 | 1/2 | AN526C-632R8 | $0.08 | $0.20 | |
| Stainless | 6-32 | 5/8 | AN526C-632R10 | $0.08 | $0.30 | |
| Stainless | 6-32 | 3/4 | AN526C-632R12 | $0.10 | $0.22 | |
| Stainless | 6-32 | 1 | AN526C-632R16 | $0.11 | $0.29 | |
| Stainless | 8-32 | 1/4 | AN526C-832R4 | $0.14 | - | |
| Stainless | 8-32 | 3/8 | AN526C-832R6 | $0.08 | - | |
| Stainless | 8-32 | 1/2 | AN526C-832R8 | $0.09 | $0.16 | |
| Stainless | 8-32 | 5/8 | AN526C-832R10 | $0.11 | $0.26 | |
| Stainless | 8-32 | 3/4 | AN526C-832R12 | $0.10 | $0.34 | |
| Stainless | 8-32 | 1 | AN526C-832R16 | $0.14 | $1.50 | |
| Stainless | 10-32 | 1/4 | AN526C-1032R4 | $0.38 | - | |
| Stainless | 10-32 | 3/8 | AN526C-1032R6 | $0.13 | $0.21 | |
| Stainless | 10-32 | 1/2 | AN526C-1032R8 | $0.13 | $0.24 | |
| Stainless | 10-32 | 5/8 | AN526C-1032R10 | $0.15 | $0.20 | |
| Stainless | 10-32 | 3/4 | AN526C-1032R12 | $0.16 | - | |
| Stainless | 10-32 | 1 | AN526C-1032R16 | $0.18 | $0.40 | |
| Stainless | 10-32 | 1-1/2 | AN526C-1032R24 | $0.24 | - | |
| Stainless | 1/4-20 | 1/2 | AN526C-420R8 | $1.57 | - | |
| Stainless | 1/4-28 | 1/2 | AN526C-428R8 | $0.28 | - | |
| Stainless | 1/4-28 | 3/4 | AN526C-428R12 | $0.42 | - | |
| Carbon Steel | 6-32 | 3/8 | AN526C-632-6 | - | $0.17 | |
Current Total
|
||||||
Click Add to Cart to add them to your shopping cart
or Add to Wishlist to store them for ordering later.
or Add to Wishlist to store them for ordering later.

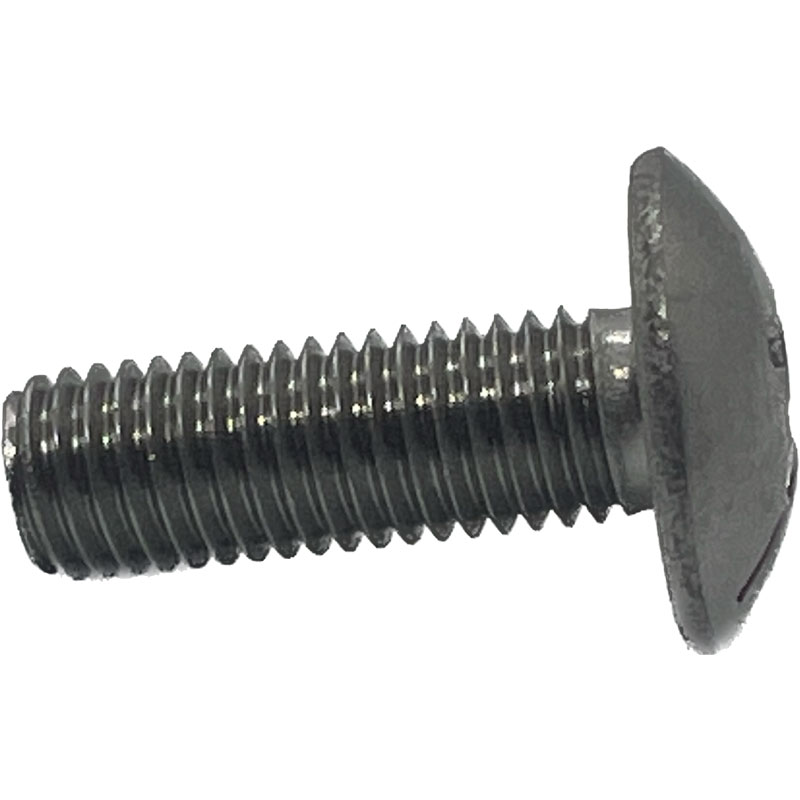

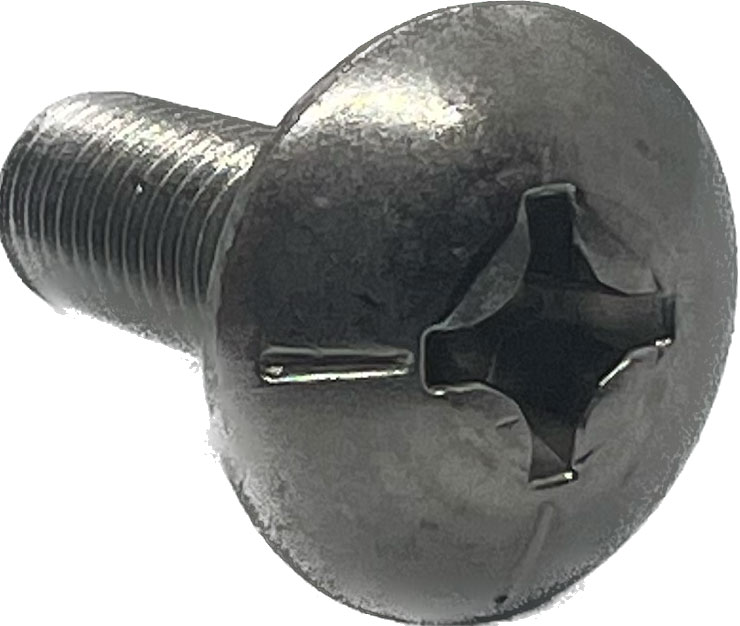

| Truss-head non-structural machine screws made of carbon steel, cadmium plated. Minimum tensile strength 55,000 PSI. Available in slot head or Phillips recessed head. |
|
Very good quality and finish. |
|
These seem like fine quality screws. I used them to replace the rusty old screws holding my Pitot Tube on. |
|
I ordered these screws before and have used them extensively on my homebuilt. The last batch I ordered are slightly different in shape and appearance from the shiny truss head SS screws I had been using. I wish they all matched. |
|
Great service |
|
Great project part for student projects. |
|
Problem with this order is it was incomplete ordered 24, got 15. Advised by phone and the missing 9 were sent immediately. I really appreciate the great service! |
|
Good quality, fast service |
|
Excellent quality, fast shipping. |
|
|
Great quality. Not for structural use as stated, so use them as they were intended and they work great. |
|
Exactly what I needed, quick, simple and no problems at all, as always! Thanks |
|
|
|
|
Screws were fine but I thought they would be polished SS instead of mill finished. Not exactly what I expected |
|
As luck would have it, I needed was 1 each 1 1/2 machine screws and all I had was 1 1/4 to finish mounting a cover, for my tail wheel strut access. |
|
Worked. Nice quality. |
|
Perfect size for student projects. |
|
good source for replacing hardware inventory. next day service is great. |
|
Good screws! |
|
Quality material delivered on time as promised. If needed, I would certainly purchase from them again. |
Are the lengths of machine screws measured by the length of the threaded portion not including the head?
Yes, they are measured from the bottom of the head to the end of the screw, the threaded portion.
The AN526C-440R8 is metric thread?
No, it is a standard 4-40 thread.
Are the AN526 machine screws fine (NF) or coarse (NC) thread?
Regarding Thread Sizes
Coarse Thread: 6-32, 8-32, 10-24, 1/4-20
Fine Thread: 6-40, 8-36, 10-32, 1/4-28
What do the numbers in the thread size column mean? ie 4-40. what does the 4-40 mean
The first number is the size, or diameter, and the dash number is the thread count per inch. A #4 screw is .112" diameter.
Regarding non-structural use of AN526 and AN365 hardware... What is the difference (reason for purchasing) stainless vs. Cad plated?
You may want to consult with your A&P for more details of which would be better for your application. We suggest using the hardware recommended in the aircraft parts and maintenance manuals.
