Overview
|

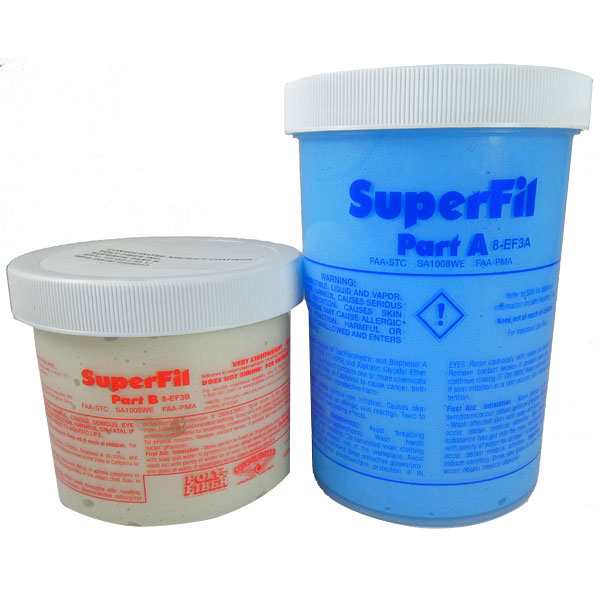

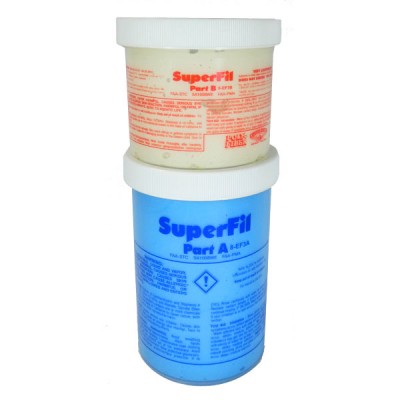

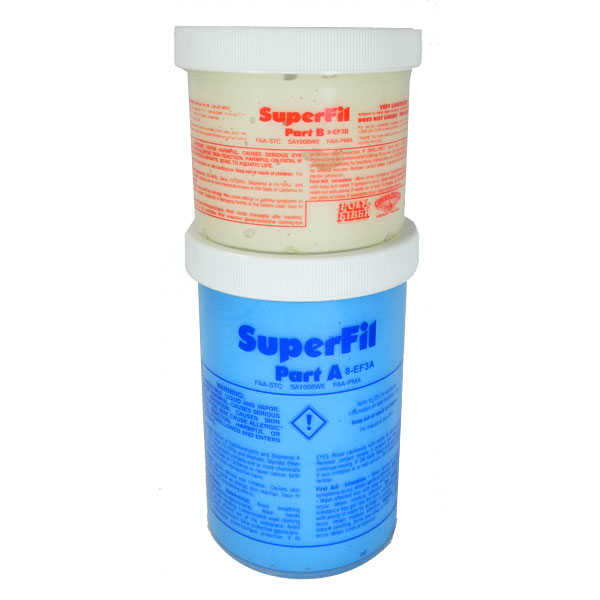

An ultra lightweight corrosion-inhibiting filler for aircraft, marine, and automotive use. Adheres to composites, bare aluminum, steel, and bare or varnished wood.
Epoxy resin with non-MDA hardener. Ships non-hazardous. Apply EP-420 Epoxy Primer directly over SuperFil. Superfil is an ultra-lightweight epoxy filler for rough fill and contouring. Comes in two containers. Mix, apply with a squeegee, and let dry overnight. More consistent than hand-mixed micros. Weighs only 3.8 lbs. per gallon. 1 Quart Kit (12 oz. Hardener + 20 oz. Resin) 3 Gallon Kit (1 gal. Hardener + 2 gal. Resin) HAZARDOUS |
Features
- Composite Filling:
- Use as you would an epoxy micro slurry. Mix by the weight for the best results. Scuff-sand smooth surfaces before application. Trowel or squeegee to desired thickness. After drying, sand to shape and finish. Works as an excellent filled material.
- Bare Aluminum:
- Scruff surface with a Scotch-Brite pad. Treat bare aluminum with E-2300 Conversion Coating prior to application. Apply EP-420 Primer directly over dried SuperFill.
- Bare Steel:
- Clean off all rust and oil, and wipe with C-2200 Meti-Sol.
- Varnished or Bare Wood:
- Scuff-sand and clean as necessary. EV-400 Epoxy Varnish may be applied directly over SuperFill.
Specifications
- By Weight (preferred): 2 parts A to 1 part B
- By Volume: 2 parts A to 1 part B.
- Thoroughly stir each individual container of part A and part B before combining. Resin or hardener can separate from fillers during storage. After combining parts A and B scape the sides of the Revision on 21 mixing container to insure a through blend. Mix o a consistent high color blue color.
- Cure: Allow to cure at 70° or above for best results. Lower temperatures will lengthen the cure time
- Dry Film Cure: 8 hours at 77°
- Cure to Sand: 12 hours at 77°
- Pot Life: One hour at 77°
- Clean Up: MEK before curing occurs
- Shelf Life: Twi years unopened. Avoid storage above 100°. Resin will separate from filler during storage. Remix thoroughly.
Documents
Reviews
Used this to simulate the windshield gasket on a Stinson SR-9. Works very well and very easy to sand. Should be great on fillets. Much easier to sand and manipulate than epoxy and micro balloons. A bit hard to measure out, so using a scale would be the best way to do that. Would be nice for modelers if it were sold in smaller portions.
A great product and very good service.
great, easy to use product
Product worked just as described.
Repeat customer on this product as it does a great job.
Poly-SuperFil sure is one good product . I use it for model airplane fillets and more. Also on woodwork, as I do general painting as my work. This stuff I tried on concrete some time ago still holding firm,sands ok also.Again, good stuff.
Works well with styrofoam, sands to a nice feathered edge.
Lightweight product that is easy to work with, has a slow drying time and very smooth sanding qualities. Used it to make repairs to my Stinson to fair out where hard points and fabric meet and crack over time.
Excellent fill and sand ability properties.
Easy to mix, apply, and sand. Extremely lightweight. Adheres well to any surface. Works great for filling dents. Im very pleased with the result. I believe it can be easily used for may applications, not just aviation use.
Q&A
We have added the MSDS sheet to the "Documents" tab of this web page. Please review it there.
Yes. It is an epoxy base filler and adheres very well to aluminum, wood, and composites.
Superfil is an epoxy base material and will not shrink or crack over time like polyester base fillers. The manufacturer does not list a max depth.
This is an epoxy base filler and adheres to many surfaces, but a slightly abraded surface is recommended for the best bond.
No, it is not necessary to remove the paint. Just be aware the Super-Fil will stick to the paint, so if the paint chips off the structure, so will the Super-Fil on it.
Yes, It will work on clean metal.
Per Vendor: It can be used as filler on metal, sure, but it should be primed over to seal it.
It is not normally used as an adhesive, so we have no data as to how well it will work.
This material has a 2 year shelf life in an un-opened container.
It should go underneath the varnish. The varnish should seal the superfil.
Per Poly-Fiber: We do not recommend thinning or diluting this product.
