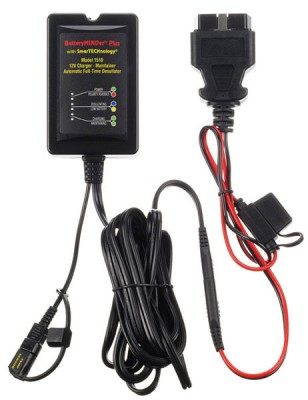

BatteryMINDer Plus 1510-Obd2 12V 1.5A With Smartechnology + Obd2Sae

0 Reviews 0 Answered Questions
$85.95/Each
Quantity
Add to Wishlist
Part# 11-14489
MFR Model# 1510-OBD2

Overview

BatteryMINDer® Model1510OBD has an OBD2 Connector to plug into your Vehicle's OBD2 Port On Board Diagnostic port (OBD) . It includes a full-time automatic high frequency pulse desulfation (not high voltage), which helps extend the life of a battery up to four times over its normal life. Unit can maintain up to four 12 Volt batteries at one time when connected in parallel by using SmarTechnology™ Y-Connectors (part# 210AY) or customer supplied 18-Gauge insulated wire.

Featuring a 10 Year Warranty!

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • SAE to OBD2 Connector. Enables you to keep your battery maintained via your vehicle’s onboard OBD2C Connector.
  • Installed ambient temperature sensor for 0°F–130°F operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes.
  • Extends battery life up to four times when compared to new batteries not being properly charged-maintained over their lifetime.
  • Maintains up to four batteries at a time (6 or 12 Volt batteries connected in parallel) Requires use of Y-Connectors 210AY (sold separately) or customer supplied 18-Gauge insulated wire.
  • FCC Certified.
  • Worldwide 100-240 VAC 50/60 Hz input.
  • Recovers weak batteries.
  • Automatic Full-Time high frequency (not high voltage) pulse type desulfation.
  • Reverse polarity, short circuit and over temperature protection.
  • Energy Star rated, which means it meets strict energy efficiency guidelines set by the US Environmental Protection Agency and the Department of Energy.
  • Certified by the California Energy Commission as meeting the current efficiency standards.

Specifications

  • Volts: 12V
  • Amps: 1.5A
  • Power Source: Power Source
  • Temperature Compensation: Yes: -20°C / -4°F
  • 50° / 122°
  • Multiple Batteries (#): 4
  • Warranty: 10 Year
  • Connector: OBD2 & Battery Clips

Documents

In The Box

  • Ambient Temperature Sensor (installed)
  • 12ft. power cord
  • BC-2410: 2' Battery Clip Cord Set with Quick Connector
