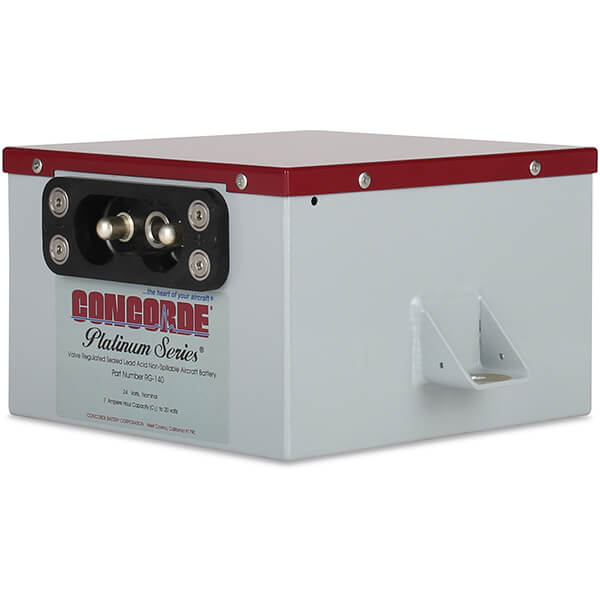

CONCORDE RG-140 AIRCRAFT BATTERIES

$2271.00/Each
Quantity
Add to Wishlist
Part# 11-11694
MFR Model# RG-140

Overview

Avionics Battery for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde's Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.
Test Temperature @ 23C (74F) = C1 is 2.0 Ah
Test Temperature @ -18C (0F) = C1 is 1.3 Ah
Test Temperature @ -30C (-22F) = C1 is 0.9 Ah

Recombinant Gas - The RG Series are low resistance, valve regulated lead acid (VRLA) batteries.
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG Series batteries ship non-HAZMAT
  • Internal 115 VAC, 400 HZ Internal Charger

Specifications

  • Primary Aircraft Purpose: Emergency Aircraft Battery
  • Voltage: 24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 2.00
  • Max Weight: 6.80 lb / 3.1 kg
