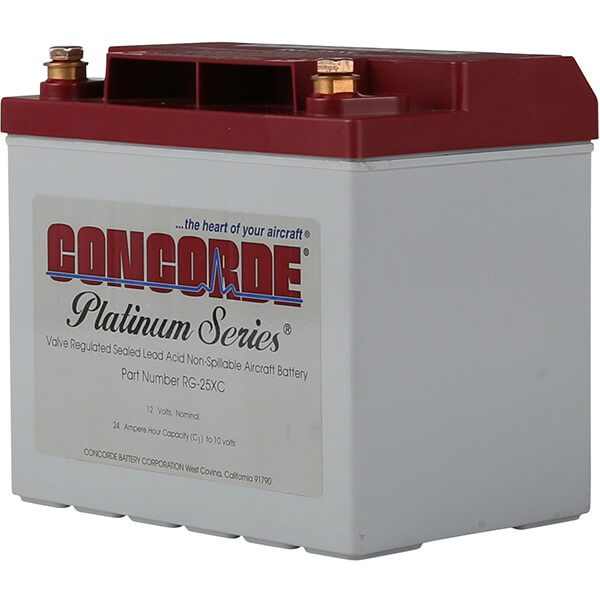

Concorde RG-25Xc Platinum Series Sealed Lead Acid Aircraft Battery

$346.00/Each
Quantity
Add to Wishlist
Part# 11-03880
MFR Model# RG-25XC

Overview

RG-25XC has the highest cranking power and capacity in the 25 Group.

  • Recombinant Gas - The RGŪ Series are low resistance, valve regulated lead acid (VRLA) batteries.
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RGŪ Series batteries ship Hazmat Exempt

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

*NOTE* - The STC for some aircraft is available at an additional cost please call 877-4-SPRUCE (777823) if applicable to your aircraft.

Battery Type
Voltage
Ampere Hours
Max. Weight
Our P/N
Battery Diagram PDF
RG-25XC
Sealed, Extra Cranking
12
24
23.5 lbs.
11-03880

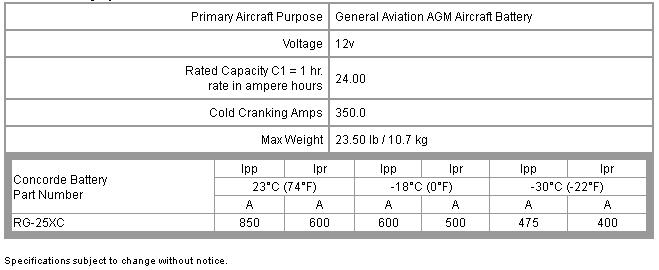

Specifications

  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Good battery works well

Jeff T Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

January 13, 2022

Shipped same day, arrived quickly and well packaged. These batteries last me approximately 10 years.

Darryl O Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

January 6, 2022

This is the second RG-25XC Ive purchased for my Cessna 172, The previous battery lasted 6 years and was still functioning when it was replaced.

Frederick A Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

January 5, 2022

Havent installed yet! The last one lasted almost 6 yrs. Seems to be a good battery. Doesnt Leak nor does it need servicing.

Greg E Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

January 4, 2022

I ordered a new Concord RG-25XC Battery for my Robinson R44 helicopter. Battery shipped from Aircraft Spruce West and arrived on schedule as planned. No damage or issues with the new battery. Installed and everything is working fine. Thanks Spruce for an uneventful experience and delivering my battery without any issues.

Richard F Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

January 2, 2022

all good

Bill C Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

January 1, 2022

This battery replaced an identical unit that was 4 years and six months old. The new one cranks better, engine starts faster. Five years is a good replacement interval.

Eric L Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

January 1, 2022

arrived promptly, fully charged. we are always very happy w/products and service.

Roy S Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

December 21, 2021

Good item, very reliable

Thomas C Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

December 18, 2021

Exactly what I needed.

Reggie G Verified Purchase

CONCORDE SEALED BATTERY RG-25XC

December 18, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between Concorde RG-25 and RG-25XC?

The RG-25XC has extra cranking power. It is simply a more powerful battery for any instance you need more power (bigger engine, weather, etc.)

Q: What are the specifications of the RG-25XC battery? CCA?

We have added the specs to the "Specifications" tab of this web page for your review. Cold cranking amps is 350.0.

Q: Can the Concorde RG-25 be used for the Cessna 150 aircraft?

Yes, this is the correct replacement battery for the Cessna 150 aircraft.

Q: Will this Concorde RG-25XC battery fit my Piper PA 28-180?

Yes, RG-25 / RG-25XC replaces original battery P/N 450-030.

Q: How long is the warranty on the RG 25XC?

Concorde has a limited warranty on their units. The RG25XC has a 24 month limited warranty. Details are on the Concorde web site for your review.

Q: Which battery charger is recommended for the Concord RG-25XC?

P/N# 11-14349 is recommended as a battery charger/maintainer for a RG-25XC battery.

Q: Is this a Concorde RG25XC a replacement for a Piper Cherokee 140?

Yes, the RG-25 and RG-25XC are common replacement batteries for the Cessna 140. Please confirm originally installed battery to be sure this will work in your specific application.

Q: For orders over 500.00 the shipping is free, is there any extra charges for shipping batteries?

Our new free shipping minimum is orders over $350 to USA zip codes in the lower 48 and Alaska. There are no additional fees for batteries with free ground shipping.

Q: Just want to confirm that the Concorde CB-25XC will fit into my Cessna 150G.

Yes, the RG-25XC is the recommended Concorde replacement battery for the Cessna 150G.

Q: Will this battery fit a BE58 Baron?

Yes, this is on the replacement list for the Beech 58.
