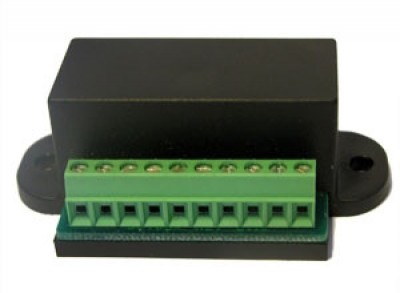

Tosten Relay Deck

$79.95/Each
Quantity
Add to Wishlist
Part# 11-10512

Overview

Two axis relay deck to be used for both elevator and aileron servos.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the maximum AMPS the relays can handle?

Per the manufacturer, the maximum AMPS the relay deck can handle is 10 AMPS.

Q: Were can I get a wiring diagram of the Tosten relay deck?

Yes, we have added the wiring diagram PDF to the web page.

Q: What are the dimensions of the relay deck? A dimensioned diagram would be useful in planning component placement.

The dimensions are 2.5 X 1 X 1 inches

Q: Can I connect the hat switches of both the control sticks to one relay deck?

You must follow the wiring diagram provided by the manufacturer.

Q: My Zenith CH 650 has electrically actuated flaps. Will I need a second relay deck?

You may need a second relay, please check the Aircraft Spruce website for the wiring Diagram.
