- Photo may represent series and not specific product
- SHARE

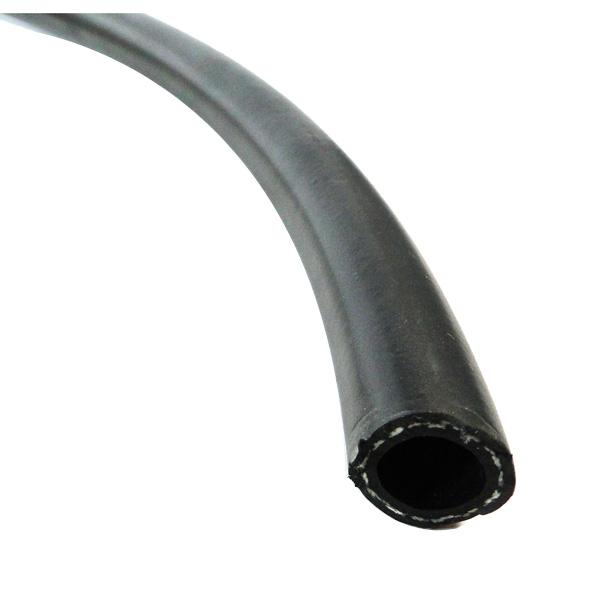

Rotax 912 12.5MM Oil Cooler Hose
MFR Model# 836-8
FREE Shipping
Overview
|
912 Oil Cooler Hose 12.5mm high heat hose for 912-914 oil coolers. Sold by the foot. ID: 1/2" OD: 3/4" |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Media: Petroleum base hydraulic fluids and lubricating oils
- Maximum Working Pressure (psi): Up to 400
- Hose I.D. Maximum (inch): 3/4
- Maximum Working Pressure (MPa): Up to 2,8
- Minimum Working Temperature Oil (F): -55
- Maximum Working Temperature Oil (F): +302
- Minimum Working Temperature Oil (C): -48
- Maximum Working Temperature Oil (C): +150
- Maximum Working Temperature Air (F): +212
- Maximum Working Temperature Air (C): +100
- Maximum Working Temperature Water (F): +185
- Maximum Working Temperature Water (C): +85
- Material - Cover: PKR neoprene, blue, MSHA accepted
- Material - Hose Inner Tube: PKR
- Compatible Fittings: 82 or HY series
- Material - Hose reinforcement: One fiber braid
Reviews
Hose fit perfectly on Rotax fittings.
Verified Purchase
13MM Oil Hose
Sorry to say I havent reached the point of using it. It looks to be of excellent quality, as good or better than the hose I just removed as part of my condition inspection. Sorry not to be able to add more at this time.
Verified Purchase
13MM Oil Hose
Exactly what I required. Always good service from ACS.
Replaced oil lines on Rotax 912.
Just the right size for the metric fittings found on Rotax engines.
Its a perfect hose and quick delivery. Wish the wall was bit more stiffer to ensure that it wont collapse at bends. Hope it gets harder over time.
Q&A
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The OD of this hose is approx 3/4 inch. The ID is 1/2 inch.
Maximum Working Pressure (psi): Up to 400
836-8
Yes this hose works for the suction and pressure lines on the rotax engine
The Penix fittins are not designed to be used with the rotax hose. They are all speced in SAE sizes as well, not metric.
This is a one fiber braid with an inner tube material of PKR.
