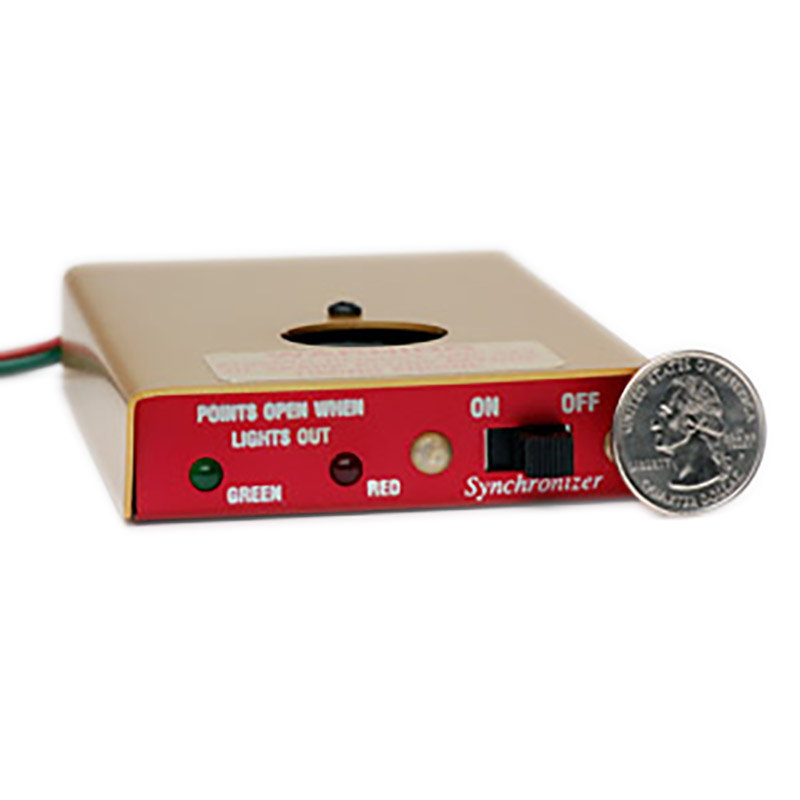

ATS Magneto Synchronizer Aviation Deluxe

$112.75/Each
Quantity
Add to Wishlist
Part# 12-05282
MFR Model# LED52

Overview

Deluxe aviation model with dual channel and audible tone. Designed specifically for aircraft magneto synchronization and engine timing. Eliminates all guesswork and provides a greater safety factor by creating perfect timing quickly and reliably. Simply attach three clips to the magneto, and adjust until the illuminated LED turns off (extinguishes) and the tone sounds.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Deluxe model features dual channel (left & right), plus audible tone.
  • Sounds a different tone when left-in-sync, right-in-sync, and/or both-in-sync.
  • Uses electronic inductance to accurately signal when points break.
  • Very compact form factor: 3.125" (79mm) wide x 5.5" (140mm) long x .75" (19mm) high.
  • Completely safe as it does no use any high voltages (4.5V max test voltage).
  • Comes ready to use with a 9V battery.
  • Specifically designed for aircraft use.

Specifications

  • 1 lbs (0.5Kg) shipping weight.
