Proven to be a trouble-free mechanical pressure pump. Original equipment on numerous airframe installations and adaptable to most applications with one of three dual diaphragm types. Overboard vent of this design provides operating assurance throughout all flights.
Takes gasket 60096 which is not included. (See Accessories)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

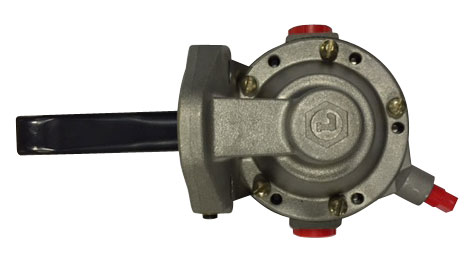

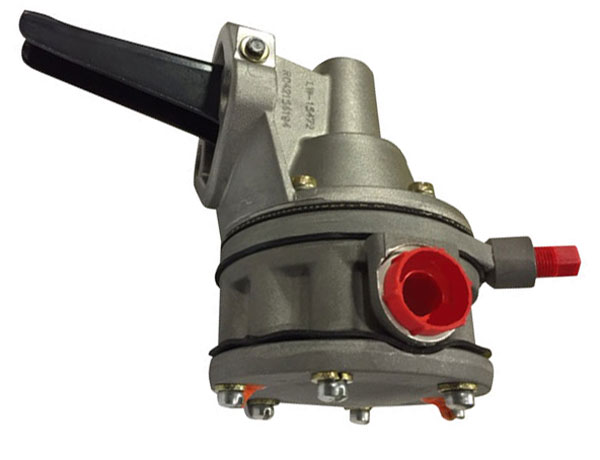

LW-15472 LYCOMING NEW FUEL PUMP-DUAL DIAP.-LOW PRESS
An actual 40295 pump is required for O-360 with side draft HA6 carburetor. LW-15472 does not fit.
wrong item sent. Wanted an electric fuel pump, but received a mechanical fuel pump. return was easy. Thanks!
This pump is listed as a drop in replacement for the 25-30 psi LW-15473 pump. This is supported by Lycoming SL L255A. However, the 62B26931 pump is a higher pressure pump 30-35 psi. Operationally OK by Lycoming but triggers a high pressure alert on my fuel pressure system requiring either a new 15473 pump tr a trip to the factory for my electronic indicating system.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer: No, it is not recommended.
Standard Lycoming warranty is 1 year.
Facing the fuel pump as attached to the engine. The OUTLET side of the pump in on the Left. The INLET side of the fuel pump is on the Right.
The fuel pump Vent is .125-27 (NPSF) straight pipe thread.
We have them on our website as "lycoming fuel fittings." Part number 07-00783 for example.
