Super Hc Powerband Prop Drive V-Belts

Select Size:
25 Inch26.5 Inch29 Inch30 Inch
Select Band:
Single BandPowerband
Quantity
Add to Wishlist

Overview

Reduction Drive Belts are available in:

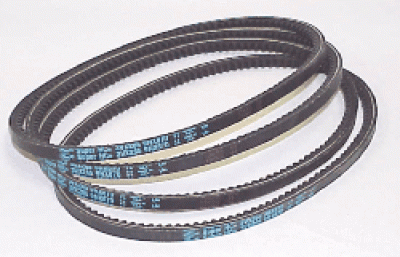

single band (Super HC®) or

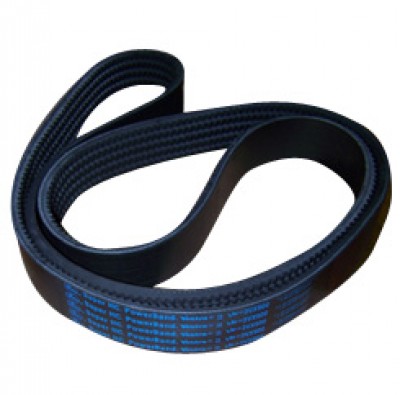

quad band (Super HC®PowerBand®)

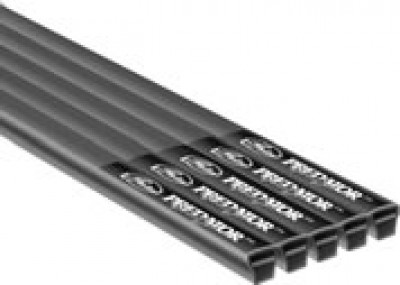

PowerBand® belts were developed by Gates for drives subjected to pulsating loads, shock loads or extreme vibrations where single belts could flip over on the pulleys. A high-strength tie band permanently joins two or more belts to provide lateral rigidity. This keeps the belts running in a straight line in the pulley grooves.

PowerBand constructions is offered with Gates Predator® Hi-Power® II, Super HC® and Super HC Molded Notch Belts

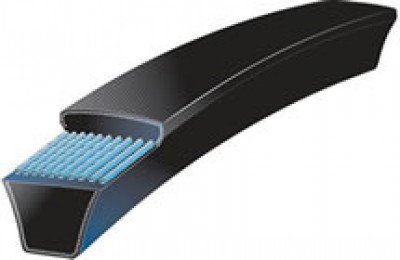

Super HC® Molded Notch V-Belts / Cross Sections: 3VX
Super HC® Molded Notch belts are made with Gates exclusive EPDM construction for higher heat resistance and smoother running. They have specially designed notches and lateral rigidity to support the cord with precision-machined sidewalls for better length control, product uniformity and consistency. Gates molded notched V-belts, also referred to as cog belts, can save you up to 3% in energy savings compared to wrapped belts due to increased flexibility and reduced bending stress.

Both Super HC® and Super HC® molded notch V-belts are part of the Gates V80 matching system. Both lines resist the effects of oil, heat, ozone, sunlight, weather and aging.
They meet RMA standards for static conductivity and are available in both single strand and PowerBand® “joined” belt configurations.
