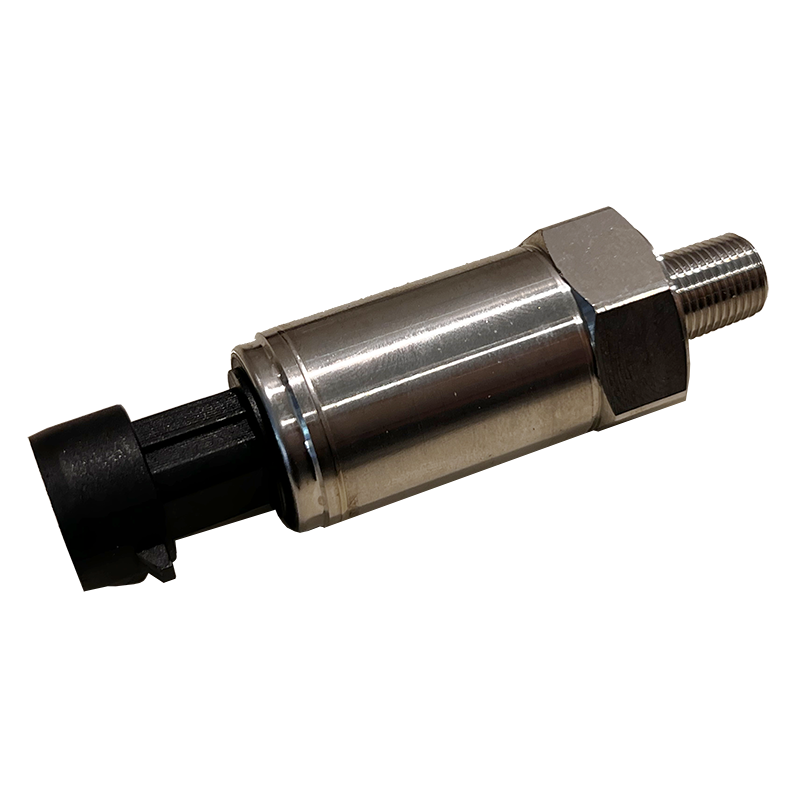

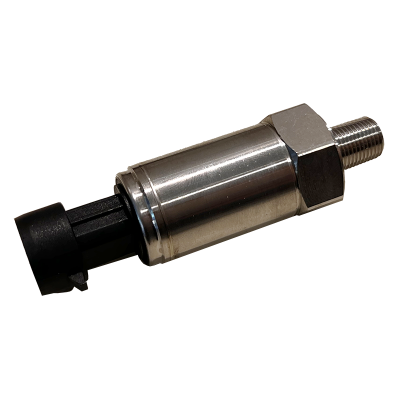

RADIANT FUEL PROBE SYSTEM 1/8 INCH PROBES

$218.95/Each
Quantity
Add to Wishlist
Part# 10-05866
MFR Model# FPS-018

Overview

The Belite liquid level / fuel probe is designed to sense fuel or liquid level of any type and provide an electrical indication to instrumentation along a range of 0 to 5 volts. The unit is not TSO’d or PMA’d. Use only in appropriate aircraft as a backup to certified instruments and pilot calculations. Ideal for monitoring level of liquid in many other applications, such as agricultural spraying.

Patent pending.

Features

  • Stainless steel construction, 304L.
  • High precision pressure sensor, accurate +/- 2% absolute.
  • No moving parts. Based on MEMS technology.
  • Designed to be immune to temperature, shock, and vibration.
  • Will not fail if water is present in fuel (unlike capacitive probes).
  • Compatible with any tank size or depth to 48”; other options available.
  • Long term stability 0.5% per year.
  • Operating temperature range -40 to 100 degrees C (Probe Only).
  • Compatible with 9 to 14 volts input power.
  • Provides linear output of 0.0 to 5.0 volts (empty / full).
  • Built in exceptional slosh filtering and optional G filtering.
  • Includes five point calibration for empty, ¼, ½, ¾, and full tank.
  • Custom calibrations available. Contact factory.
  • Alarm output active if <25% full. Contact factory for other alarm options.

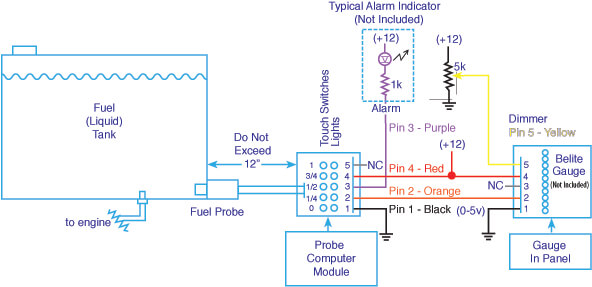

Functionality

  • Provides liquid level indication between empty and full, for any tank with a minimum height of 6 inches (150mm) and a maximum height of 48 inches (1200mm); other options available.
  • The electrical output of the product varies between 0.0 volts and 5.0 volts.
  • Asserts “ALARM” when the tank is filled to less than 25% of calibrated capacity.
  • Provides active low current sink to 15 ma.
  • Includes an electrical slosh filter with an approximate time constant of 40 seconds.
  • NOTE: if a tank was quickly evacuated due to a gross rupture or failure, the system may require up to two minutes to fully reflect an “empty” condition.
  • Parts included are Liquid Probe with pigtail, Probe Computer Module & 9V connector.

Technical Design

This product incorporates the following technical elements:
  • Microprocessor with RAM & firmware
  • Input A / D converter
  • Output D / A converter
  • Slosh Filter
  • G sensor (optional)
  • Highly stable voltage supply for probe
  • Very low power consumption – approximately 10 milliamperes total consumption, with 7 milliamperes in the fuel probe

Applications

  • Fuel level
  • Liquid level in many other applications such as agricultural spraying
  • Misfueling monitor
  • Motorcycles
  • Industrial

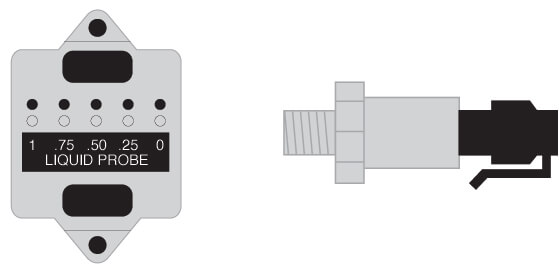

In The Box

  • Stainless steel liquid level probe with wiring harness for attachment to Probe Computer Module.
  • Probe Computer Module with five point calibration.
  • Power pigtail to Module, with 9V connector for testing.
