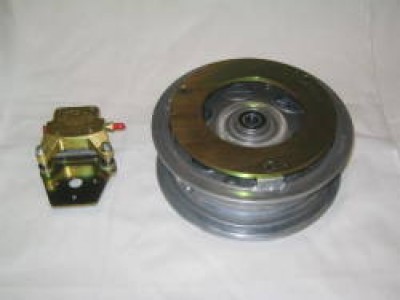

The W80CC-Z is a 8.0 inch wheel with 5 inch width with an additional 1.85 inch caliper spacing. Bearing spacing is 3.12 inches and axle spacing is 0.7 inches. The total weight of this wheel and brake assembly is 8.75 pounds. The bearing axle diameter is 0.625 inches.
Performance The W80CC-Z is designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS
Maximum Accelerate/Stop Kinetic Energy: 93441 ft-lb
Torque Rating (@450 PSI): 1988 in-lb
Product Comparison Table
