Part# 01-06700
MFR Model# BGF HG-64
SizePart No.
3" Width 58 Warp, 17 Fill01-06700

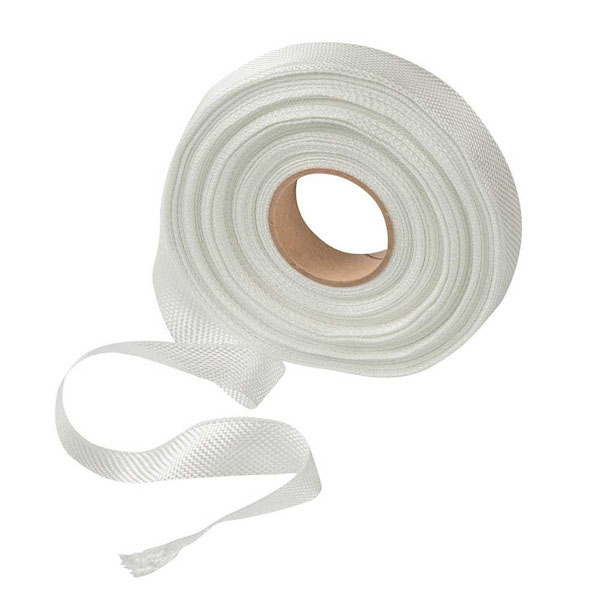

Tapes are woven from 8.7 oz./sq. yd. fiberglass cloth, .012" thick, into narrow widths with non-raveling selvage. Perfect for glassing seams, corners, edges fan for repair jobs. Sold in 50 yd. rolls.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.


Fiberglass on a roll, no creases and glass well packed and works very well . Wets out really good without white I get when I buy from West Marine.

Ronald R
July 26, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Fibreglass E Tape Bi-directional (ie at 45 deg) Tape? Regarding Part # 01-06600

This fiberglass tape is Bi-Directional, but is woven at a 0/90 deg., not at 45 deg.

Q: How heavy are these tapes (in ounces per Square yard)?

Tapes are woven from 8.7 oz./sq. yd. fiberglass cloth.

Q: What is the unit of measure? it looks like 50yd rolls...

Correct, these are priced and sold in 50 yard rolls.

Q: Would this be the product to use to transition the seam between the fiberglass tips and the aluminum stabilizer?

In short the answer is yes, it can be used to lay-up between two parts, but so can any of the fiberglass cloths we offer. Using a fiberglass tape can be convenient and save time if the correct width is selected for the specific application.
