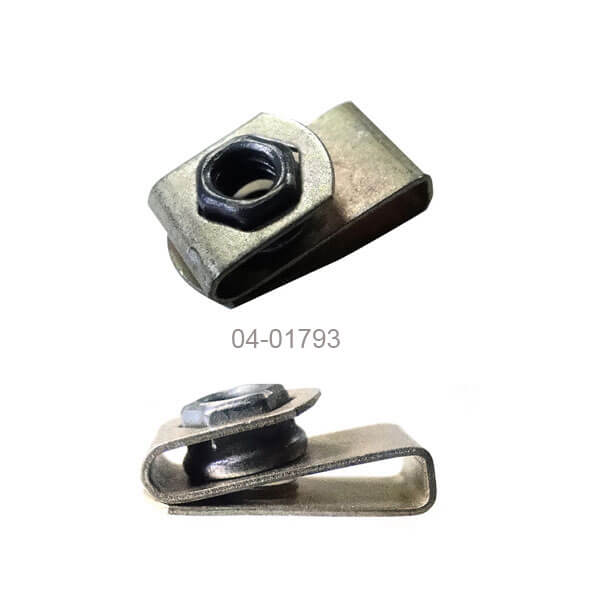

FLOATING CLIP NUT 4972-6-82

$1.83/Piece
Part# 04-01793
MFR Model# 20478-5
Part No.Thread SizePanel ThicknessEdge MarginClip WidthDescription
04-017938-32.020-.1250.3750.437FLOATING CLIP NUT 4972-6-82

Overview

LESS 20%, ALL NUTS THIS PAGE, IN LOTS OF 100 PER SIZE.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Worked fantastic. They come with the threads oblong so there is a lock nut action.

Ben Verified Purchase

FLOATING CLIP NUT 4972-6-82

November 27, 2022

Works as designed.

Edwin S Verified Purchase

FLOATING CLIP NUT 4972-6-82

November 17, 2021

Over the last few months I have purchased at least a couple of every size floating clip but (both LHA & Monadnock).

David S Verified Purchase

FLOATING CLIP NUT 4972-6-82

September 26, 2021

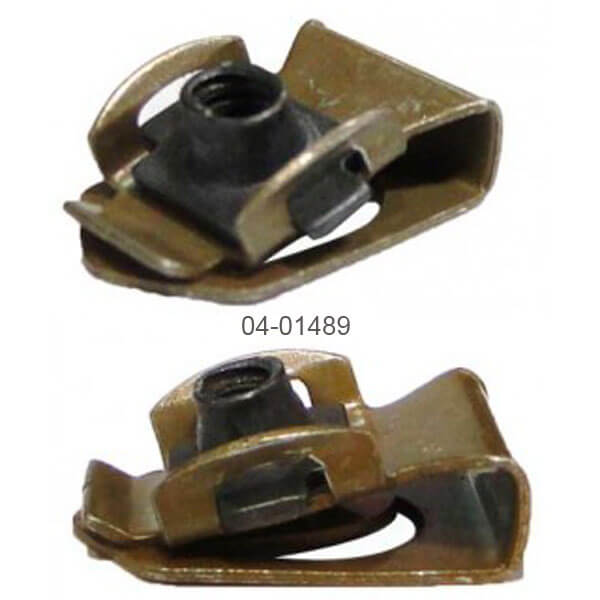

There really needs to be a chart that combines data for the LHA4972 & Monadnock clip nuts. e.g.: P/N | ScrewSize | LHA v Monadnock | PanelThicknessRange | C-Max (CtrOfHoleToEdge) | Price. 04-00151 | 6-32 |M| .030-.051 || .180-.120 | 3.95 . 4972-5-62 | 6-32 |L| .030-.062 || .281 | 2.27 . 04-00152 | 8-32 |M| .020-.090 || .310-.500 | 2.15 . 4972-6-82 | 8-32 |L| .020-.125 || .375 | 1.59 . 04-00153 | 10-32 |M| .020-.090 || .350-.500 | 1.88 . 04-01489 | 10-32 |L| .020-.090 || .385 | 2.25 .

David S Verified Purchase

FLOATING CLIP NUT 4972-6-82

September 10, 2021

Great quality Hardware!

Westwood A Verified Purchase

FLOATING CLIP NUT 4972-6-82

September 9, 2021

They work as advertised.

Bob
February 3, 2021

Very good alternative to the tinnerman style clips typically used in factory installations with sheet metal screws for things like attaching the glare shield or even securing covers on instrument panels. Cost more, works much better, lasts much longer, and you dont have pointy sheet metal screws behind the panel to rip the flesh of unsuspecting mechanics. Less bloodshed is good :-)

Ben
November 30, 2020

Excellent service from the US stores. Wish I could had the same from the European one

Pavlos F
March 16, 2020

Over the last few months I have purchased at least a couple of every size floating clip nut (both LHA and Monadnock) that Spruce sells. On every single one, the nut seems to have been crushed to elongate the threaded hole. As a result, excessive effort is required to both install a screw AND remove it. I dont know if this elongation is a defect, or if it is part of the design. Where I use them, the screws need to be removed periodically. This elongation is problematic because the extreme tightness frequently causes the screw head to get bunged on removal. It is possible to re-tap the nuts to the specified size to facilitate later removal of the screw. If you are buying new clip-nuts only because the old ones are holding the screws too tightly, the new clip-nuts may not solve your problem.

David S Verified Purchase

FLOATING CLIP NUT 4972-6-82

September 26, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the dimensions for length and width?

The dims for part number LHA4972-1032 are as follows: width: .447" total length: .670" edge to cnter hole length: .385"

Q: On the 10-32 plate, what is the max thickness of material is it designed for?

.020" - .090" material thickness range.

Q: What is the edge to hole center distance for part number 4972-5-62?

The edge to hole center distance is 0.281".

Q: Are these made of stainless steel?

No, they are cad plated steel.

Q: Are these locking nuts? If so which 832 clip nuts do you have that are non locking.

These threaded nutplates can be used for structural / non-structural applications. Tinnermans are for sheet metal screws.
