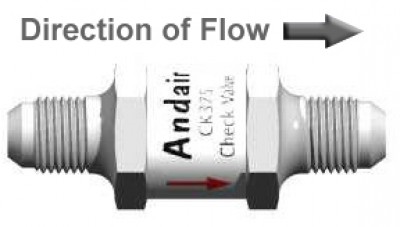

Built from aircraft grade Aluminum and anodized for corrosion protection this lightweight and compact unit is excellent. The check valve is ideal for tank vents and high pressure fuel pump bypass lines. Its extremely light weight internal shuttle operates with the slightest pressure yet the internal O-ring seals allow the unit to be used up to 50 PSI.
Other qualities include break out pressure less than 1 PSI, great flow characteristics around shuttle, and bleed allows shuttle to weep off pressure in the event of a blocked line. Features AN-6 (3/8") fitting on bottom. Valve measures 5/16" dia. x 2.75" long.

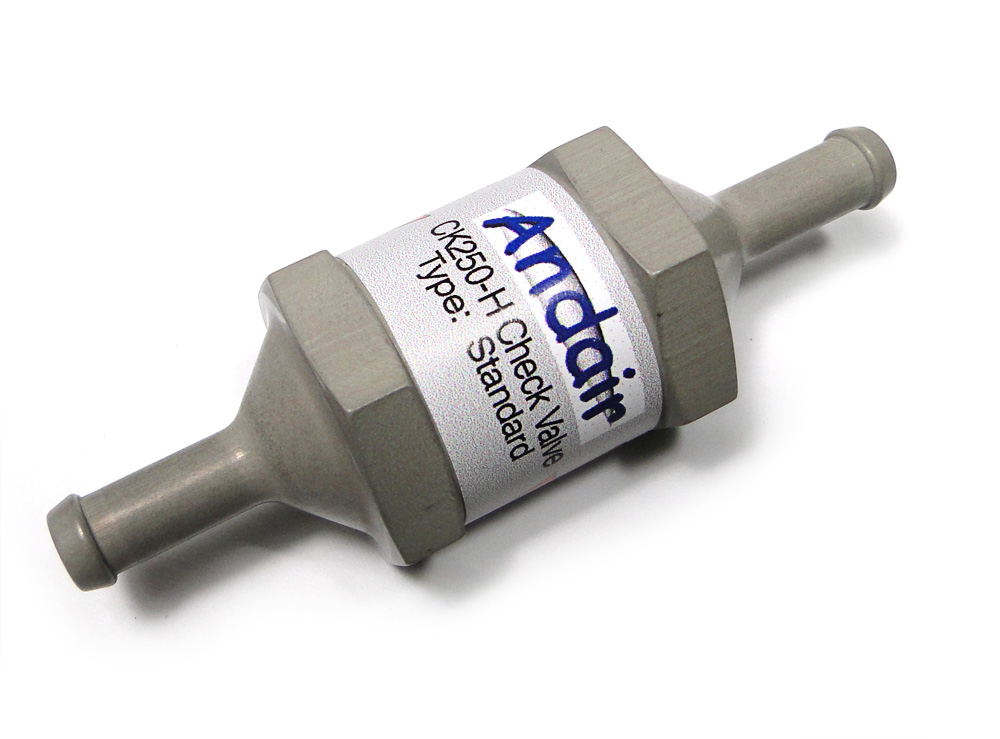

I like this check valve but no matter what type of hose clamp I tried, I could not get the super flex hose to grip the inlet or outlet fittings. In every case I was able to pull the hose off with the clamp in place. A barbed fitting would have been more useful. I wasnt able to use this check valve because the attachment security was suspect to me.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer: Yes it is designed to go in the vent line to allow air in and prevent fuel escaping from the tanks....provided it is connected the correct way round!......always get it checked by your aircraft engineer for correct installation.
Per the supplier: Optionally a bleed can be fitted to the valve, here the internal shuttle has been drilled with two small holes. This allows for bleed back to occur. This particular valve is useful in the vent line of a fuel system where allowance for fuel expansion is necessary.
Approx 0.75 lbs.
The arrow would need to point in the direction of flow. So it would point away from the tank.
Yes, this can be used in any position.
