SAE NUT AND SLEEVE ASSEMBLY 61SM-04

$2.30/Piece
Part# 05-12245
MFR Model# 61SM-04
DescriptionTube O.D.ThreadPart Number
61SM-04 - Nut And Sleeve Assembly1/4"7/16-2405-12245

Overview

Brass compression fittings to be used with standard or high pressure NSR hose.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

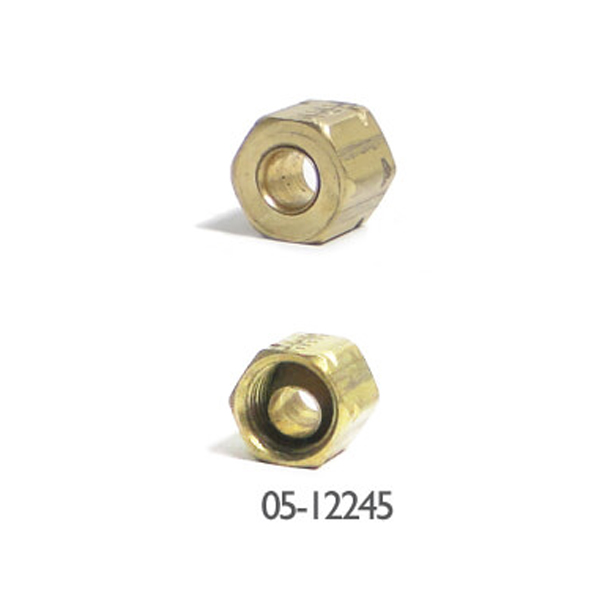

Q: Are the compression sleeve and nut one part? The picture makes it look like this?

Yes they are one part.

Q: For use with nylon NSR tubing there is supposed to be a brass insert in the end of the tube so the compression fitting doesnt collapse the tube. Does this insert come with the fittings?

These do not come with an insert and we do not carry a brass one. We carry nylon 259-N inserts.
