Part# 05-13084
DescriptionUsable Fuel
Tank Size
Part Number
RV RV-720 Gal.05-13084

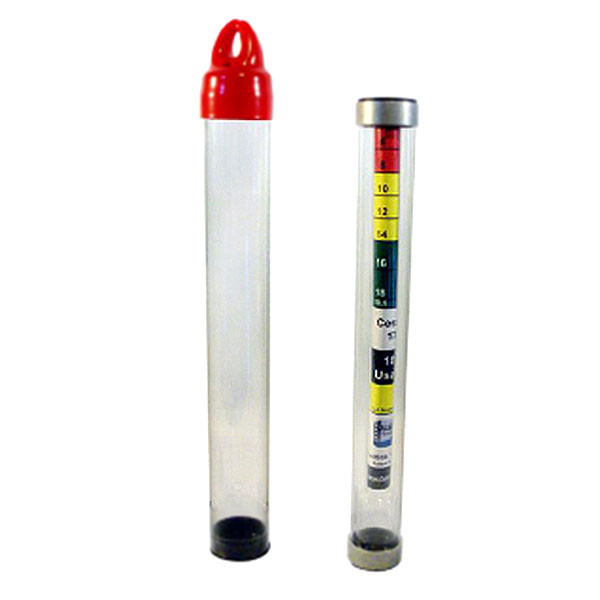

Extremely light, high impact plastic tubing with aluminum rings resist damage. Available "Aircraft Specific Scales" Can be downloaded and printed from the website. Can easily be calibrated to any tank using the "Universal" scale. A worksheet, written instructions and even an instructional video are available at the website. We will generate an "Aircraft Specific Scale" from your calibration It's shipping tube doubles as a "Vented Storage Tube". This allows any remaining fuel to evaporate between uses, provides a protection for the life of the unit and reduces manufacturing waste. It's design gives consistent readings even when the fuel in the tank is sloshing around. It's upper and lower rings aide in handling. Large Easy-to-Read numbers observed outside the tank. Quantities given in both Gallons and Pounds! Color coded sections represent approx. 1/3 cruise consumption. It's not limited to your aircraft. Works in tractors, small motors, etc. Will not fall into fuel tank on most aircraft.

100% Made in the USA

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.


  • Device Size- 10 3/4 In (273 mm) X 1 1/4 in (32mm)
  • Shipping Tube size- 12 5/8 (320 mm) X 1 1/2 (38 mm)
  • 38g Device Only, 82 g with shipping tube/ documents
  • Construction: Fuel Resistant Plastic, Aluminum
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Al D
October 10, 2019

Works as advertised. However, they dont tell you that the range is only 10-21 gallons.

Fred M
August 29, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Why is this sold as RV specific if it has to be calibrated? All RV models are the same (ie all RV-8 tailwheel). How is it better than a marked rod I make myself? Not to mention I would need to cross-reference a document for the actual fuel quantities. What am I missing?

These do not need to be calibrated, they are pre calibrated for the specific aircraft when ordered. You can change the scale out in these though to use them with different aircraft, those scales would need to be calibrated.

Q: Is there a metric version calibrated litres?

No there is not.
