|Fitting Type||Size||Black Polyethylene |

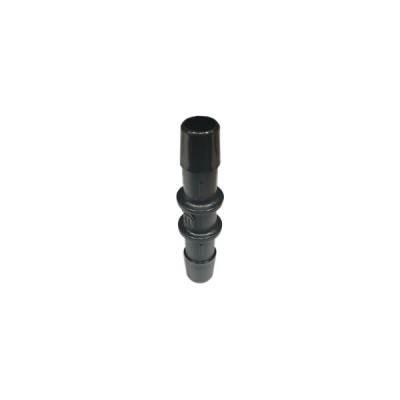

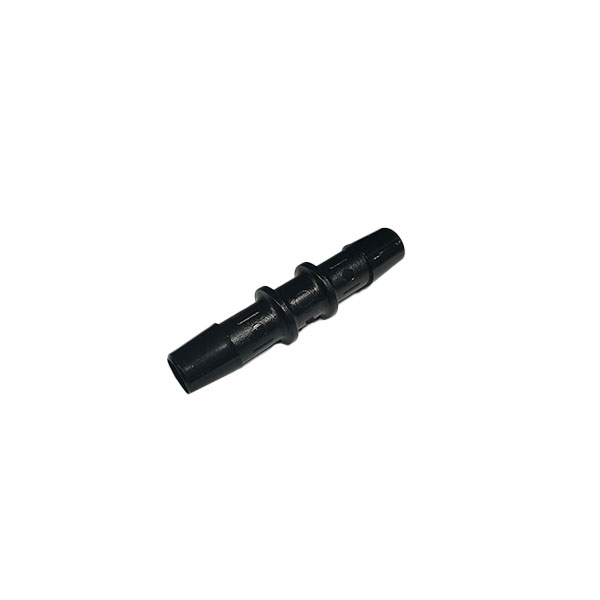

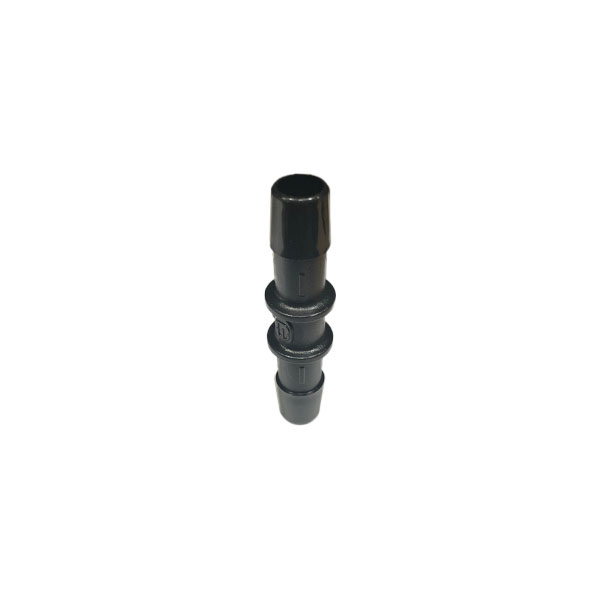

|Connector Tube to Tube||3/8T x 3/8T||0705-020||0706-020|
|Hose and tubing Insert Fittings are available in high density Black Polyethylene or White Nylon. Use polyethylene fittings with Tygon, nylon or soft rubber tubing to assemble low pressure instrument lines such as airspeed pitot and static lines. Use Nylon fittings in gravity-feed fuel lines and engine breather lines.|
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov
The nylon tube fittings (connectors) worked as advertised. They arrived when I expected them. I used them to connect lengths of one quarter inch inside diameter polyurethane tubing.
great products and super prices, Thank you! Bruce
The Black Polyethylene fittings break easily: the 1/8 NPT x 3/8 barbed is VERY weak next to the hex nut portion. I broke two of them just installing them. The first one (used for the bottom fitting of a sight tube) broke without my realizing it during installation, causing a slow fuel leak that flooded the interior of my wing. The second, (at the top of the sight tube) broke while bending the tube during the replacement of the first fitting. Not sure why AS&S sells the polyethylene version, but theyre quite unsuitable for aircraft use. Advice is to use the nylon version.
I installed these in my pitot-static system. The fittings break easily. I am switching to all brass/aluminum fittings.
I installed tee all tube P/N 0715-015 fittings in my pitot-static system. After one year two of them broke at the same time causing erroneous indications (speed). Dangerous thing, highly not recommended.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This would be the inside dimension of the tube.
We offer a few 1/4" I.D. rubber hoses that can be used. Aeroquip 306-4 & Tygon 05-00944 are just a couple common ones.
Yes, the pipe thread on these fittings are called out as NPT.
There are a few, it depends on material and tubing size. 0710-153, 0711-153,0710-158, and 0711-158.
