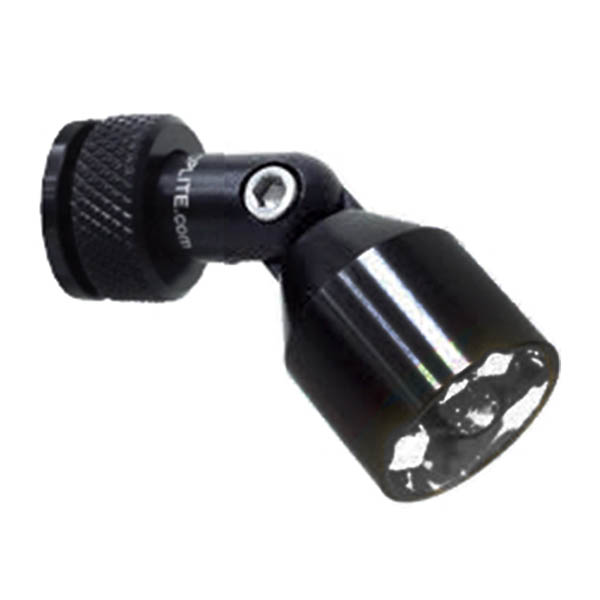

FAA-PMA SINGLE COLOR 4 LED MAPLIGHT WHITE 24V

$199.00/Each
Add to cart for current price
Part# 11-13851
MFR Model# MAP4-W24

Overview

Certified For Eligible Cessna Aircraft.



Easily installed, dimmable, unobtrusive and efficient, the LED Maplight 4 series consists of four LEDs of the same color that illuminate simultaneously. The LED Maplight 4 series is compatible with all dimming systems. Each LED Maplight 4 is manufactured and tested in accordance with FAA-PMA-approved protocols for quality assurance and customer satisfaction.

Precision CNC Machined • Mil-Spec Anodized
• 20,000 Hours LED Life


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • 12-volt model; maximum 15 volts DC 30 milliamps
  • 24-volt model; maximum 30 volts DC 15 milliamps
  • Fully adjustable in two directions
  • Total installed height when extended is 2.125 inches
  • Mounts in 15/32” thru hole; surface mount adapter available
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there an on/off switch on the light or does this use the original on/off switch on the Cessna door post cover?

This would be wired into the factory dimmer system, it does not have an on/off switch on the light.
