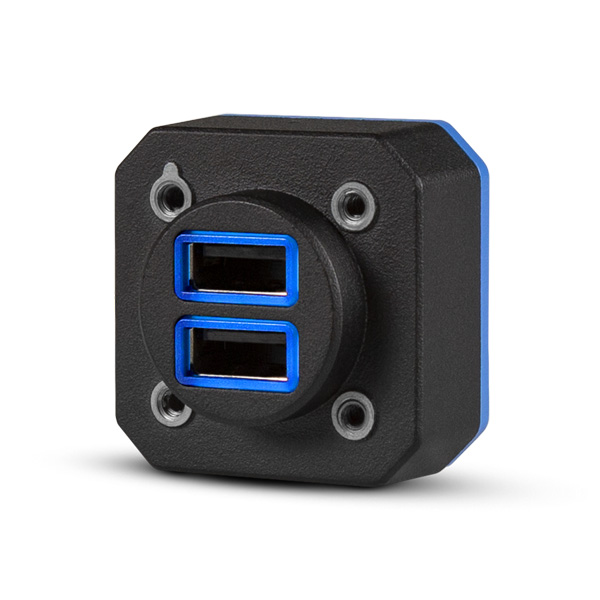

Garmin is pleased to introduce GSB 15, a small, lightweight USB charger
designed specifically for aircraft installations. GSB 15 includes two powerful
USB Type-A charging ports capable of charging at up to 3A or 18w per port
simultaneously. A single GSB 15 is capable of charging two full-size tablets
while pilots or passengers use them at full backlight. Compatible with 14v or
28v power systems, GSB 15 has built-in protection against circuit and
temperature overloads. There is also configurable halo lighting around the
exterior of the USB ports to allow pilots and passengers to easily connect their devices to GSB 15 during nighttime conditions.

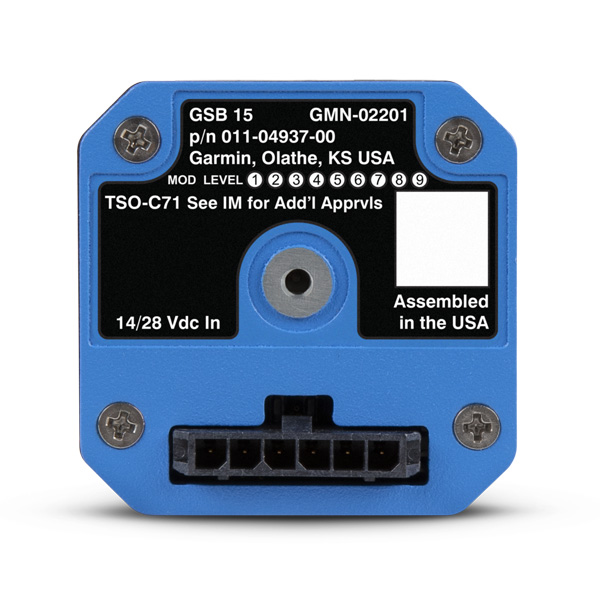

Two versions of the GSB 15 are available and allow for easy installation in spaceconstrained areas. One version contains a connector on the back of the unit, which is perfect for panel mount installations. A second variant has a connector on the bottom of GSB 15 and is ideal for installations in depth-constrained areas, such as near cabin sidewalls. Installation can also be simplified as GSB 15 can take the place of an existing aircraft instrument hole with an optional adapter plate. A slim, lightweight design makes it suitable for installation in any cockpit or cabin. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Fantastic, I used to slowly deplete my iPad battery and could not keep foreflight up for a full 4 hr flight. With this panel mount charger, my iPad stays 100% charged the whole way.
Solid, stable power. Very pleased so far
Garmin GSB 15 Vertical USB Charger
fast shipping
Garmin GSB 15 Vertical USB Charger
Garmin GSB 15 Vertical USB Charger
Garmin GSB 15 Vertical USB Charger
Garmin GSB 15 Vertical USB Charger
This is Garmin quality all the way. Comes with everything needed to use it. Get it now cause Garmin is running out. My avionics shop was out because of the supply chain. A.S. Still had them.
Garmin GSB 15 Vertical USB Charger
Nice power supply with the added benefit that it can be connected to eligible avionics and used for data transfer. I however will just use it to charge my phone.
Garmin GSB 15 Vertical USB Charger
We use these USB for a Mercedes Sprinter Executive, it is from a client of mine. He and we were delighted with this product. first of all because it is made in the USA secondly because they are perfect
Garmin GSB 15 Vertical USB Charger
Very nice compact unit. It si designed to fit the same hole has cigarette lighters. Do not be concerned about deactivating the light feature. It is not very bright at all. The pins that are required to be crimped onto the cable are very small. I did have a small crimper that almost worked. I had to lightly solder the wire after the crimp. I bench tested it and it works fine at 12 volts, no problem charging an iPhone and ipad.
Garmin GSB 15 Vertical USB Charger
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 11-17434 can fit into a cutout 1" or its available with two optional plates that allow for installation in 2.25" hole P/N 11-17437 OR 3.125" hole P/N 11-17438.
Yes, this unit is FAA Approved under TSO-C71.
Yes, the GSB 15 Connector Kit (model 011-05044-00 | Part# 11-17491) is included in the box with the charger.
Do not connect for backlight ON (nighttime visibility). Ground connection for backlight OFF.
The manuals can be downloaded and printed from https://support.garmin.com. Enter the product name or your serial number to access the manuals.
No, it is not FAA STCd. It is FAA TSO Approved.
Charge two full-size iPad. tablets or similar smart devices while using them at full brightness.
There is no 8130 in the box. The charger itself is marked with the TSO approval. An export 8130 form can be furnished for this item if requested at the time of order (additional charges will apply).
No, this is simply a charger for the iPad.
Yes this will charge the iPad Pro.
