Home / Avionics / Auto Pilots / BendixKing /xCruze 100 Autopilot Computer - 2 Round
Main Image

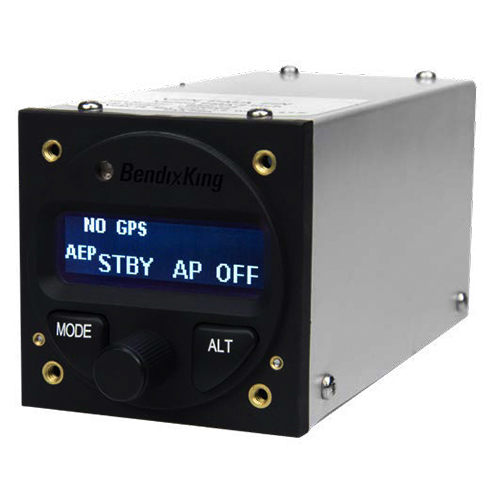

xCruze 100 Autopilot Computer - 2 Round

0 Reviews 2 Answered Questions
$1178.00/Each
Quantity
Add to Wishlist
Part# 11-17916
MFR Model# 8000-164

Overview

  • The xCruze 100 is an affordable and flexible digital autopilot system for the experimental aircraft cockpit. Designed to interface with popular experimental EFIS solutions, the xCruze 100 provides seamless integration with the xVue Touch as well as a variety of other manufacturers.
  • Emergency autopilot level button helps to bring the aircraft to a wings-level position. Connects to either hand-held GPS or IFR panel mount GPS systems. When connected to hand-held GPS, follows programmed flight plans When connected to panel-mount GPS, autopilot follows roll steering commands to fly complex flight plans. Similar to lane assist in automobiles, the AEP stand-by mode monitors aircraft bank angle. Autopilot corrects the bank angles greater than 45 degrees by automatic roll command.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Connects to either handheld GPS or IFR panel mount GPS systems
  • Emergency autopilot level button helps to bring the aircraft to a wings-level position
  • Handheld GPS connection follows programmed flight plans
  • Panel mount GPS connection autopilot follows roll steering commands to fly complex flight plans
  • Autopilot corrects the bank angles greater than 45 degrees by
  • automatic roll command
  • AEP stand-by mode monitors aircraft bank angle
  • Track select, GPS Nav, GPS steering, VS select, Vertical GPS steering modes
  • Two standard servos
  • Built-in ground track DG
  • Altitude select and pre-select
  • Control wheel steering
  • Pitch trim annunciation
  • Automatic pitch trim
  • Altitude hold

Specifications

Round
Dimensions - 2.5 × 2.5 × 5.5 in
Cut out - 2 in. round
Voltage - 12-28 VDC
Flat
Dimensions - 1.6 × 4.3 × 6.1 in
Bezel - Flat Pack
Voltage - 12-28 VDC

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this BendixKing autopilot include the two servos that it mentions in the description?

Part # 11-17916 is just the computer, for a kit including servos, computer, pushrods, and connector kits, you will need to see the xCruze kits for specific aircraft.

Q: I already have a digitrac AP and Alt hold with the servos. Can I use the sane servo with xcruse? Can I use nemea connection?

In experimental applications, the existing DigiTrak and Altrak servos have been used with the BendixKing xCruze, however specific installation guidance would be unavailkable and at the expertise and discretion of the installer. Bendix King recommends servos are replaced with the new autopilot install. Yes, the xCruze decodes NMEA-0183 (and Garmin Aviation Format) at 4800 or 9600 baud.
