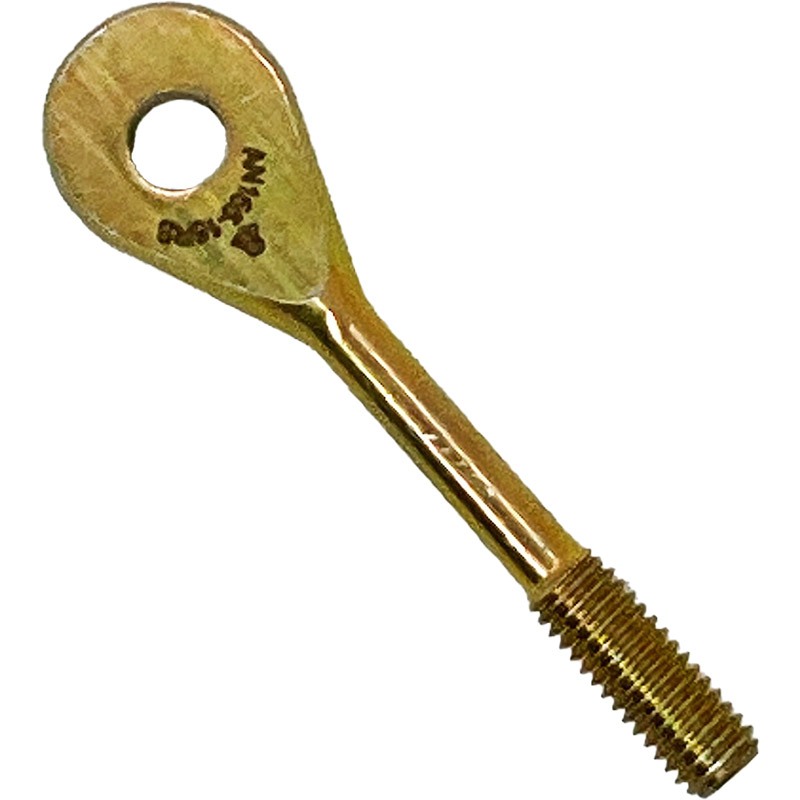

Turnbuckle Pin Eye AN165-16Rs

$15.95/Piece
Part# AN165-16RS
MFR Model# AN165-16RS

Overview

The "R" or "L" following the dash number designates "right" or "Left." The "S" or "L" (2nd letter following dash number) indicates "short" or "long." AN 161 Fork and AN 170 Cable Eye are available with either right or left-hand thread.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

This is a beautiful part, works perfectly for my application. Im securing sections of large, custom maple horns together, and these eyelets allow me to use 1/4 grade 8 bolts. Im extremely pleased with the outcome.

John I
March 26, 2018

Well made, smooth rotation into the barrel. Does the job, if I need more, these are the ones I shall buy

William
October 26, 2017

3.5 stars. Beautiful craftsmanship, but seems exorbitantly expensive. Cest la vie for airplane parts!

David S
June 29, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the length of pin eye an165-22RL from center of eye to end of shank?

From the center of the eye to the end of the shank this measures to 2.57".

Q: What is the length of pin eye AN165-61RL from center of eye to end of shank?

The AN165 specification has been canceled for years, but has been superseded with MS21252. The AN165-61RL equivalent is MS21252-8RL, and the center of the eye to end of thread length is 3.188" per the MS data sheet.

Q: does the an 165 accept the ms21256 locking clip?

No. These are not notched for the locking clip.

Q: I have a MS21251-B5S turnbuckle barrel. What is the cable eye part number to fit this barrel?

MS21255-5RS.
