(Hover to zoom | Use mouse wheel for +/-)

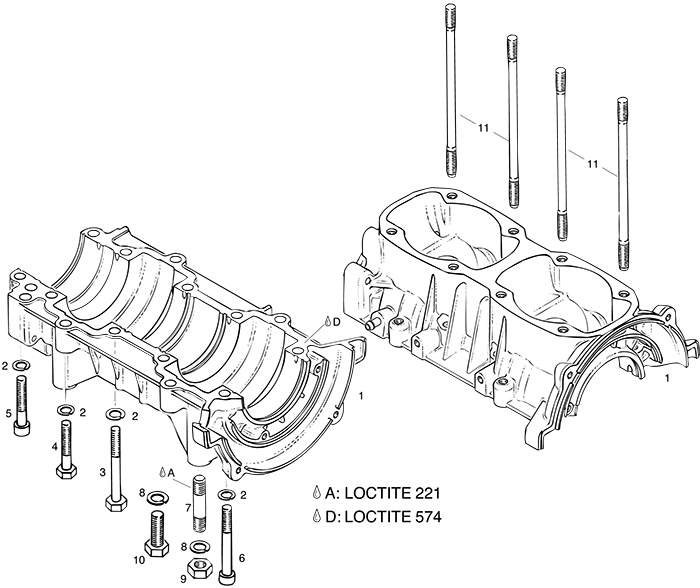

No. | Part Number | Description | Qty Req | PN | Price | Buy |
---|---|---|---|---|---|---|
2 | 945-752 | LOCK WASHER A8 | 14 | 15-03360 | $0.13 | |
3 | 841-201 | HEX. SCREW M8X70 | 6 | 15-01163 | $1.71 | |
4 | 940-631 | HEX.SCREW M8X45 DIN 931 | 4 | 15-03211 | $1.10 | |
5 | 640-611 | ALLEN SCREW M8X45 | 2 | 15-00664 | $1.11 | |
6 | 841-841 | ALLEN SCREW M8X65 DIN 912 | 2 | 15-01214 | $1.49 | |
7 | 940-190 | STUD M10X29/20 | 4 | 15-03173 | $2.99 | |
8 | 945-753 | LOCK WASHER A10 | 4 | 15-03361 | $0.19 | |
9 | 242-091 | HEX. NUT M10 | 4 | 15-00207 | $0.79 | |
11 | 840-556 | STUD M8X173,5 | 8 | 15-01127 | $12.65 |
Explanations of symbols and statements in part number charts:
![]() |
