Rotax 912 iS Sport Intake Manifold | Airbox | Throttle Body Socket

From $0.57 to $23.95

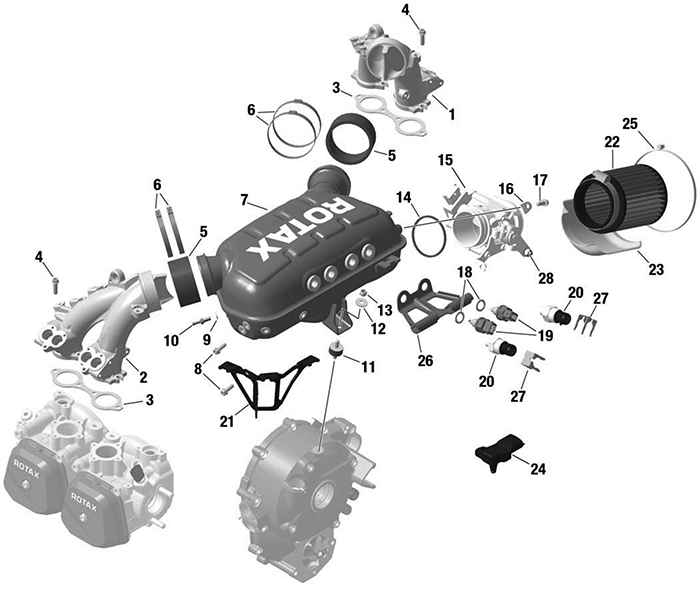

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req PN Price Buy
4440-207HEX./TORX-FLANGE SCREW M6X20-SW8/T30 /TORQUE. 10 NM/90 IN.LB.E. 6 NM/55 IN.LB.8
15-08748
$0.57
Quantity
11860-700RUBBER 20x10xM61
15-01725
$15.15
Quantity
17440-147HEX./TORX-FLANGE SCREW M6X12- SW8T30 / TORQUE. 8 NM/71 IN.LB.3
15-08747
$1.12
Quantity
19222-423TEMPERATURE SENSOR2
15-08677
$23.95
Quantity
25951-500CLAMP 381x4.8 MM(1)
15-03425
$3.46
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Screw, nut and washers
  • b   Air filter including hose clamp
  • c   Ambient pressure and temperature
  • d   840-671 + 230-415 is replaced by 840-672


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
Description 912iS
Price
1
667-401
INTAKE MANIFOLD 1/3
2b
*
2
667-406
INTAKE MANIFOLD 2/4
1
*
3
N
850-091
ISOLATING FLANGE
1
*
5
  460-421 CONNECTING SOCKET
2
*
6
953-093
1-EAR-CLAMP 48.3-51.5 MM
1
*
7
667-411
AIRBOX
1
*
8
440-164
HEX. TORX-FLANGE SCREW M6x16
1
*
10
840-671
HOSE NIPPLE M6
1
*
21
951-562
CONNECTOR BRACKET
1
*
26
651-780
CONNECTOR BRACKET
4
*
