Cherrylock Power Riveter G784

$4848.00/Each
Quantity
Add to Wishlist
Part# 12-02998
MFR Model# G784

Overview

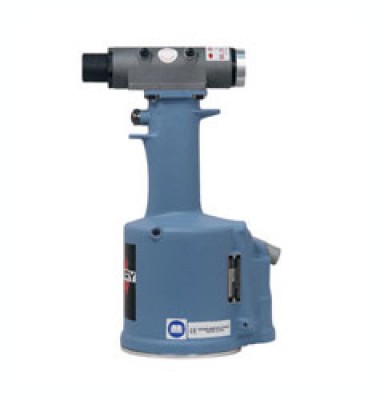

The G784 is a pneumatic-hydraulic tool designed specifically for installation of CherryLOCK rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.

This tool will install nearly all diameters of CherryLOCK rivets up to a half-inch grip, 'A' group only.

With proper adapters & pulling heads this tool can be used to install other types of rivets.

A comfortable grip for one handed operation in any position. Pulling heads not included with riveter.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
  • Noise Level: 69.7 dB (A)
  • Vibration: less than 2.5 m/s2
  • Air Consumption: .27 SCF / cycle (7.65 L / cycle)
  • Stroke: 7/8"
  • Pulling Force: 2,600 lbs (1, 179 kgs)
  • Weight: 8 lbs (3.6 kgs)
