Alcor 98214 Type K Thermocouple Wire - 50 Ft Pack

$139.95/Pack
Quantity
Add to Wishlist
Part# 05-22849
MFR Model# 98214

Overview

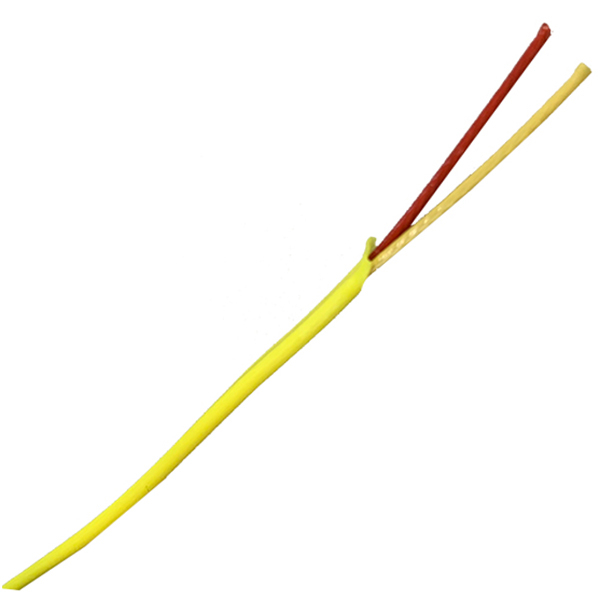

Alcor 98214 K Type Thermocouple Wire. 22 awg, 7/30 stranded insulated with FEP. Sold in 50 ft packs.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Conductor: 22 awg, 7 strands of 30 awg
  • Insulation: FEP 400-degree F
  • Wall: .008
  • OD: .046
  • Wire Color: Yellow/Red
  • Jacket: FEP 400 degrees F
  • Wall: .010
  • OD: .066
  • Wire Color: Yellow
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Ordered this product for Experimental class aircraft. Installing 4 EGT and 4 CHT is 8 wires. Consider that all wires should be the same length, thus 8 wires, 6ft in length total 48 feet. The wires are made of different alloys. One wire is magnetic. The red wire is the negative or ground side, and the yellow is the positive. If using Garmin avionics like the GEA, the red wire is LO and the yellow is HI. Use crimp style ring terminals.

Kenneth C
December 9, 2022
