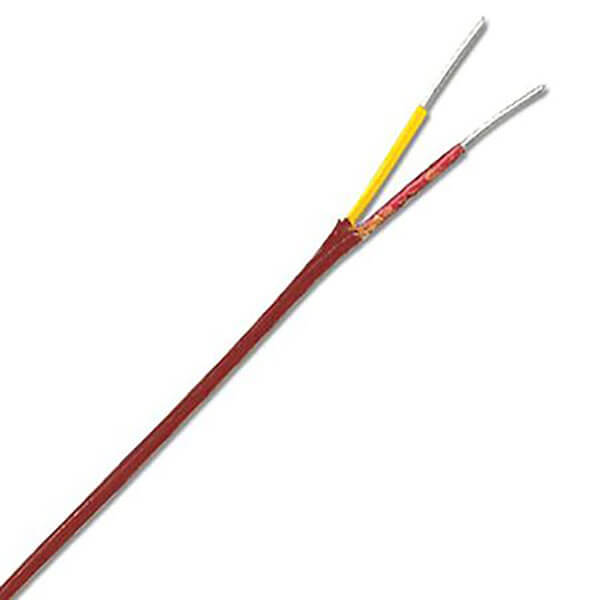

JPI TYPE K THERMOCOUPLE WIRE

$1.25/Foot
Quantity
Add to Wishlist
Part# 10-18600
MFR Model# TYPE K THERMOCOUPLE WIRE - 24G

Overview

K type Thermocouple Wire

Specifications

  • Wire Size: 24 AWG
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

This product is perfect choice for extending CHT or EGT thermocouple circuits. It will survive the high temperature environment being near engines hot cylinders. When I received this wire, it is indeed very small and I mistook it to be a single strand, not two. My wifes better eyes carefully examined the starnd and there are infact two wires there. It helps to peel back the outer sheath to see them. This is a great product!

Kenneth E
May 27, 2020

This is solid type K wire which is fine for applications where there is no flex. JPI yellow-jacket wire is stranded and has heavier outer insulation for firewall forward I would use that stuff for both reasons. For a long run to an OAT probe tucked away somewhere this wire will work fine.

Stefan
May 20, 2018

Q&A

Q: What gauge wire is the JPI Type K wire and is it stranded or solid wire?

This a 2 conductor solid core 24 gauge wire.

Q: Is this extension or thermocouple grade wire? Regarding JPI Type K wire

It could be considered both technically. It is thermocouple grade wire. It is just the wire itself, not a probe. This wire could be used as an extension or a lead.

Q: Which one is it, stranded or solid? Both are mentioned in different questions.

This wire is an outer jacket with two solid core insulated wires inside.

Q: What material is the insulation? For example, glass, polyvinyl or some other material

The insulation is neoflon.

Q: What color insulation is on the inner 2 leads? Red and Yellow?

Yes, red and yellow.

Q: What are the appropriate connectors to connect this wire to the wire coming from the probe?

Typically the manufacturer provides splices to connect the thermocouple. If none are provided, you can use part # 320559.
