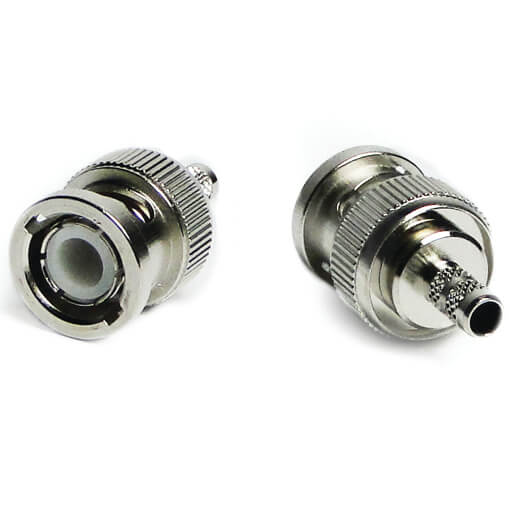

BNC MALE CONNECT RG 400 142

$2.10/Each
Quantity
Add to Wishlist
Part# 11-01802
MFR Model# 112514

Overview

BNC terminate to coaxial cable crimp on connectors.


  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Just right

James B
June 11, 2020

QUICK DELIVERY AND WELL MADE PRODUCT. EXACTLY AS EXPECTED, QUALITY ITEM.

Larry B
May 18, 2020

Worked well, but dont do what I did initially, - I didnt get the main bayonet body far enough on so the pin did not protrude far enough once assembled, had to redo them. IMPORTANT - After the pin is crimped and after sliding the bayonet over the insulation and under the shield, grab the cable with both hands and push hard (preferably with the bayonet against an immovable object). It will normally click and goes another 1/16 as it settles home and the pin will then be nearly flush with the end of the ceramic in the bayonet housing. If you dont do this you wont have full pin engagement in the connector. Pro tip - check that circuit is open with meter between shield and pin before final crimp to make sure you dont have an errant shield strand going into the pin area.

James
May 4, 2020

This is the proper connector for most aircraft antennas wires. See https://www.steinair.com/wp-content/uploads/2016/03/BNC-RG400_COAX-STRIPPING.pdf for details about stripping the antenna cable to install the BNC.

David H
October 24, 2019

AAA+++ As always fast shipping and the right part/product for the job.

Salvatore C
July 28, 2019

Slips right on crimp it up and your done. Works great for a longtime.

Hammerhead A
April 25, 2019

Good quality, easy to install, works great.

Steve
January 10, 2019

Just what I needed. Easy to install performs perfectly.

David S
November 22, 2018

Robert W
August 23, 2018

Both the male and female connectors arrived very quickly, and my son was able to bring them over to the UK on a business trip, a couple of days later. Exactly what was required and now fitted. As usual - great service by Aircraft Spruce.

Ian L
June 27, 2018

Q&A

Q: Does this BNC MALE CONNECT RG 400 142 include the pin and crimp sleeve?

Yes, the pin and crimp sleeve are included.

Q: What crimp tool do I use with these?

We recommend crimper part # 12-02378.

Q: Is this BNC connector can be used on RG 142 coax cable?

Yes, this connector can be used with RG 142.

Q: Is the impedance on these 50 ohm?

Yes: Impedance - 50 Ohm | Frequency - Max 4GHz | Connector Type - Plug, Male Pin | Cable Group - RG-55, 142, 223, 400 | Fastening Type - Bayonet Lock | Lead free / RoHS Compliant
