|Mil Spec||Conductor||Wire Gauge||Part Number|
This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.
*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

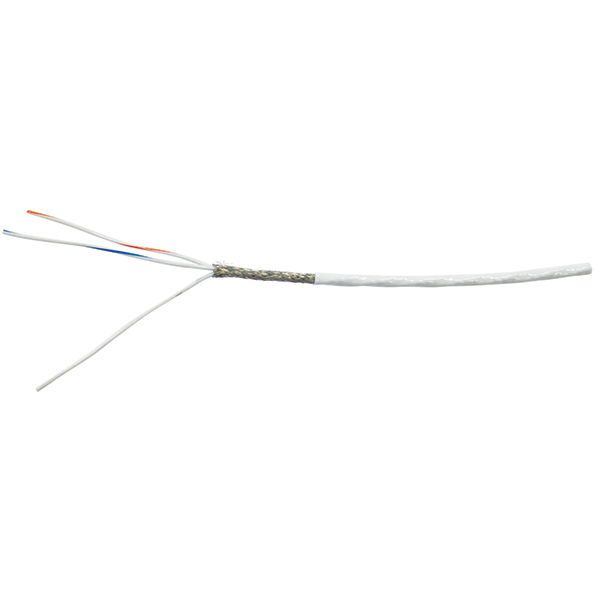

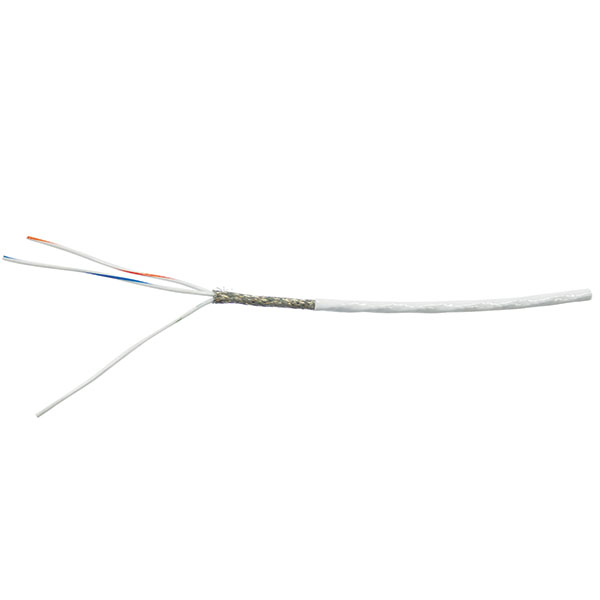

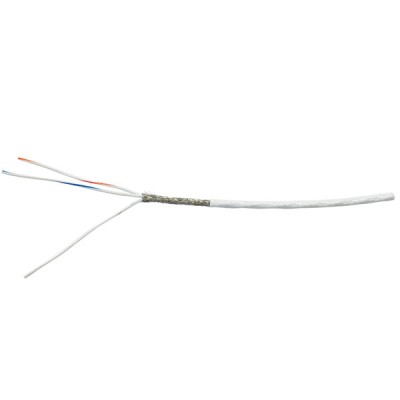

SHIELDED 20GA 3 CON WHITE WIRE M27500-20TG3T14
Product was correct came in on time worked out perfect for the job
Excellent, quick service. They sent me a very short amount of shielded circuit wire. It had been difficult to find someone on the Internet that would send me such a small amount.
I got it and it works
good product/ great service. A+ thank you very much
Excellent online experience. this is the PERFECT wire for my application. This is a very high quality shielded wire, Very small overall diameter even in the larger AWG sizes... The 22 AWG I am using is perfect for my application.
Outstanding condition, great packaging, meets spec and shipped fast
Got just what I ordered delivery was fast . Have always gotten good service from our craft Brewers. Have been purchasing from them for many years for experimental and certified aircraft.They are always helpful when you have questions.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
All the wire listed on this page is white.
The only approved tool is part number 12-02031. Otherwise a razor blade is used.
It is 5/16" diameter.
The diameter of shielded 20ga white wire M27500-20TG1T14 part # 11-14420 is 2mm.
The nominal outside diameter of 16 ga wire under m27500-16tg1t14 is .092 inches.
M27500-24TG1T14 is a single conductor. Please look at Part# 11-04477.
This has an external shield and has 3 individual wires inside.
.180 inch OD.
The installation manual for the unit in question must always be consulted for the recommended wire that must be used.
No this is Extruded Ethylene Tetrafluoroethylene
