Shielded 22GA White Wire M27500-22TG1T14 (1000Ft)

$1767.00/Spool
Part# 11-14422-1000
MFR Model# M27500-22TG1T14
Mil SpecConductorWire Gauge
M27500-22TG1T14122

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

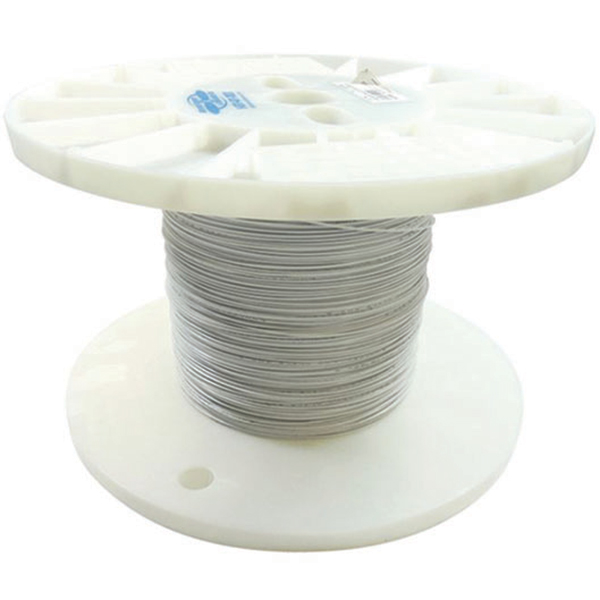

Continuous rolls of wire will be provided when available, but there can be rolls with up to three lengths of wire. Each length will be no less than 75 feet. Please advise in Special Instructions if a continuous length is required at the time of order, however, this may delay your order from shipping.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

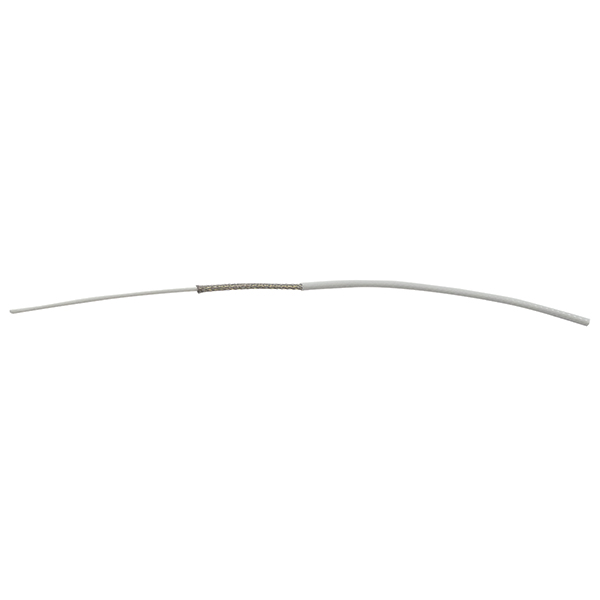

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White
