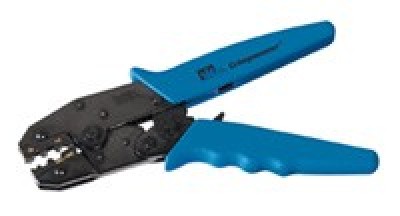

22-10 AWG Terminal Crimp Tool

Add to Wishlist
Part# 11-08688
MFR Model# 30-500


22-10AWG terminal crimp tool. 30-500 includes 30-506 frame and 30-579 die set. Crimpmaster crimp tool for #22 to #10 AWG (.324mm - 5.261mm) insulating ring tongue terminals and splices.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.


  • Provides good and consistent crimp every time
  • Dies change quickly and easily with a screwdriver
  • Interchangeable dies provide versatility in a single tool
  • Cushioned, comfort-grip handles



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this 22-10AWG TERMINAL CRIMP TOOL a ratcheting tool where it doesnt release until the crimp is complete?

Yes, you are exactly correct. This is a ratcheting tool where it doesn't release until the crimp is complete. Accurately described.

Q: Is this tool manufactured in the USA?

No, this is manufactured in Taiwan.

Q: Can this tool crimp insulated and uninsulated terminals?

No. It only lists insulated terminals under the specifications.

Q: Which dies would I need for coax cable that fit in these crimp tool?

Per Manufacturer: "This tool is not used on coax cable. It a crimp tool used on terminals, BNC, TNC and other connectors with proper die sets."

Q: Does this tool have calibration paperwork?

No. It does not.
