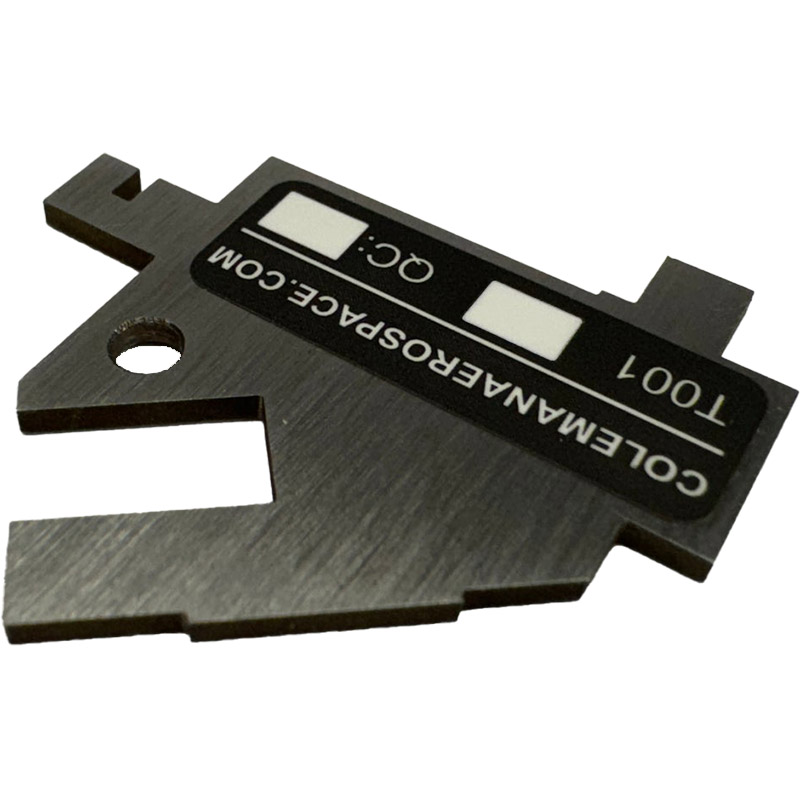

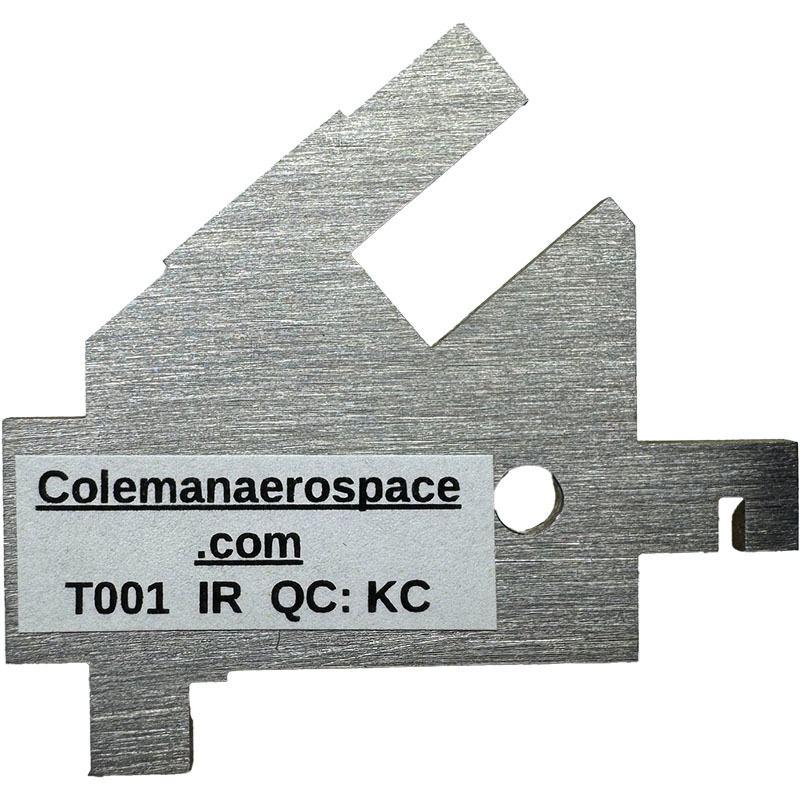

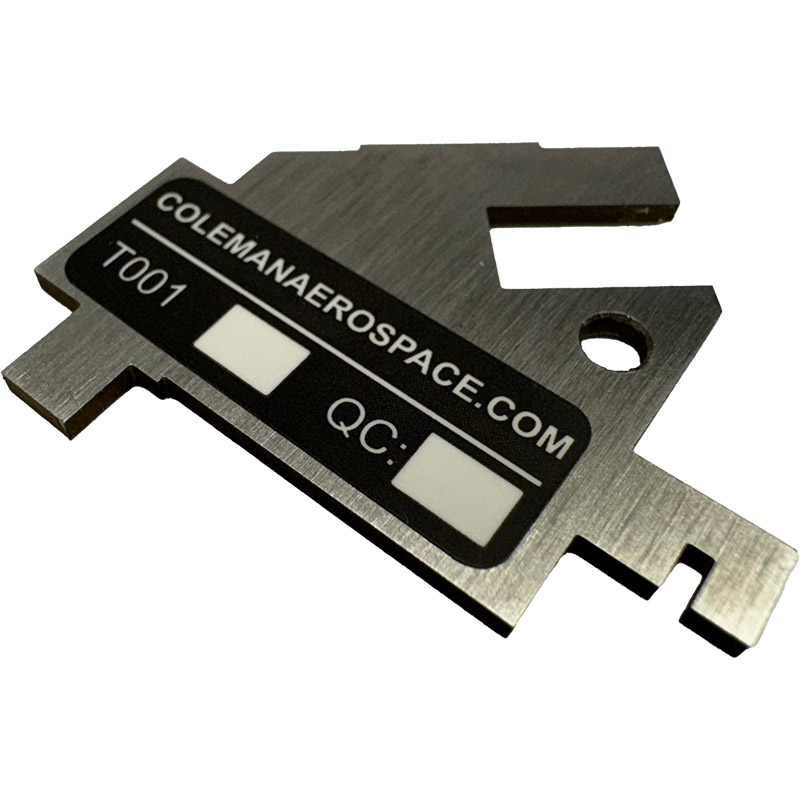

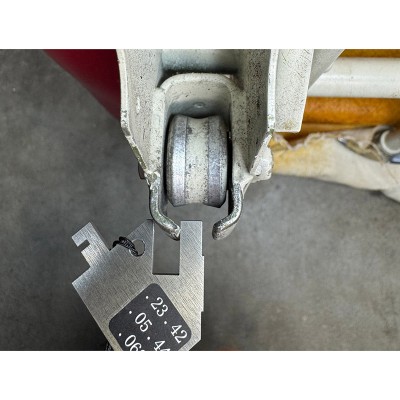

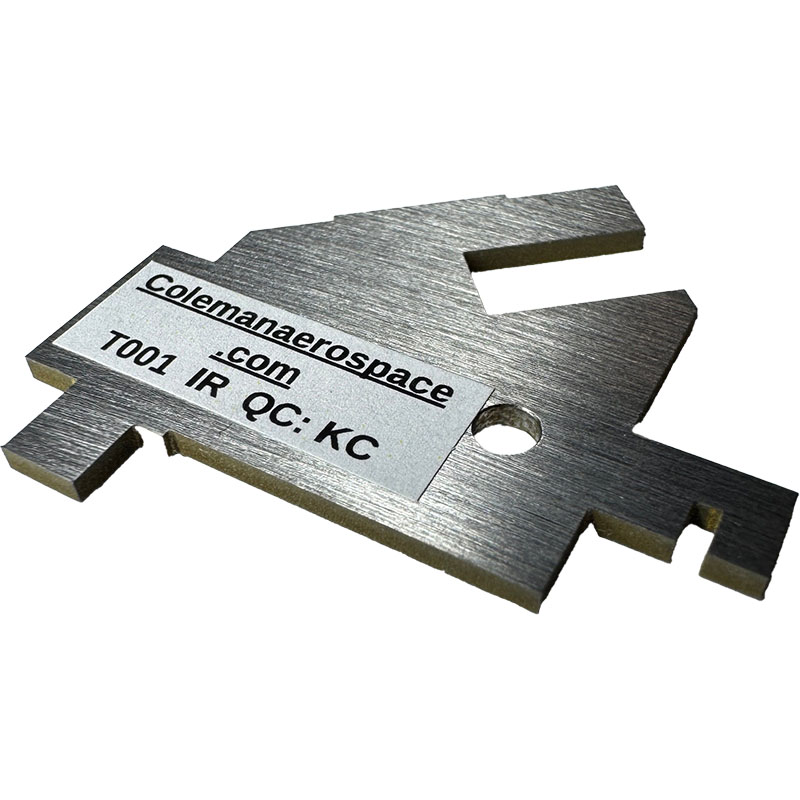

Coleman Aero Cessna Seat Rail Wear Inspection Tool for AD 2011-10-09
$89.00/Each
Part# 05-32572
MFR Model# T001
MFR Model# T001
FREE Shipping
Overview
| Coleman Aeros T001 inspection tool reduces inspection time and complexity of Cessna seat and seat rails per AD 2011-10-09. Unlike single-dimension tools on the market, T001 inspects 3 critical dimensions required by the airworthiness directive. This tool also costs significantly less than comparable multi-dimension tools. Whether you complete one inspection per year or maintain many aircraft, this tool will save you time. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Faster turnaround for mechanics
- Lower inspection costs for owner/operators

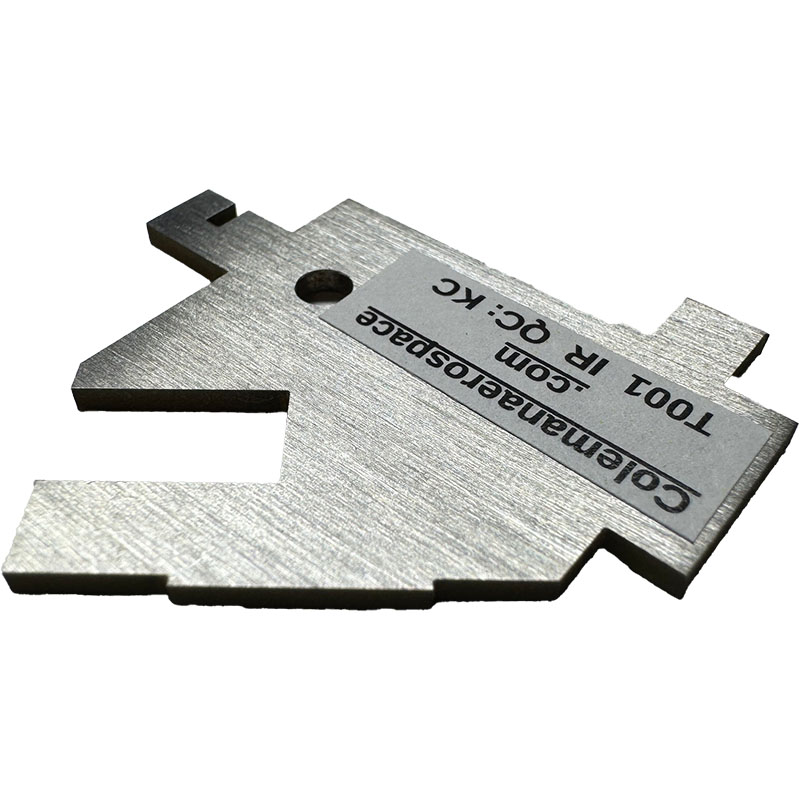

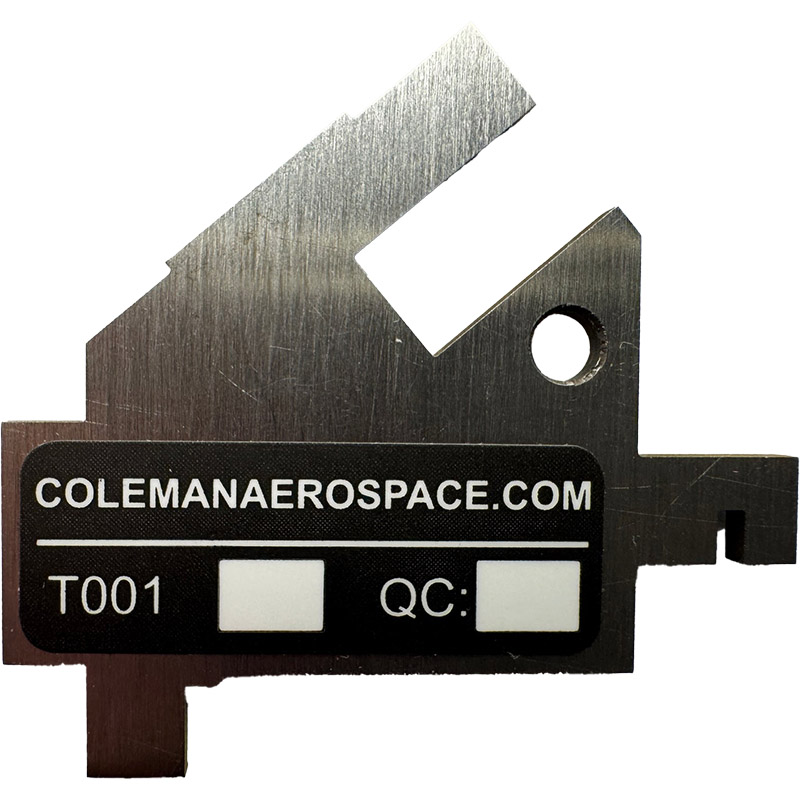

- Hardened steel construction for repeated use
- Excellent edge finish and tight dimensional tolerance

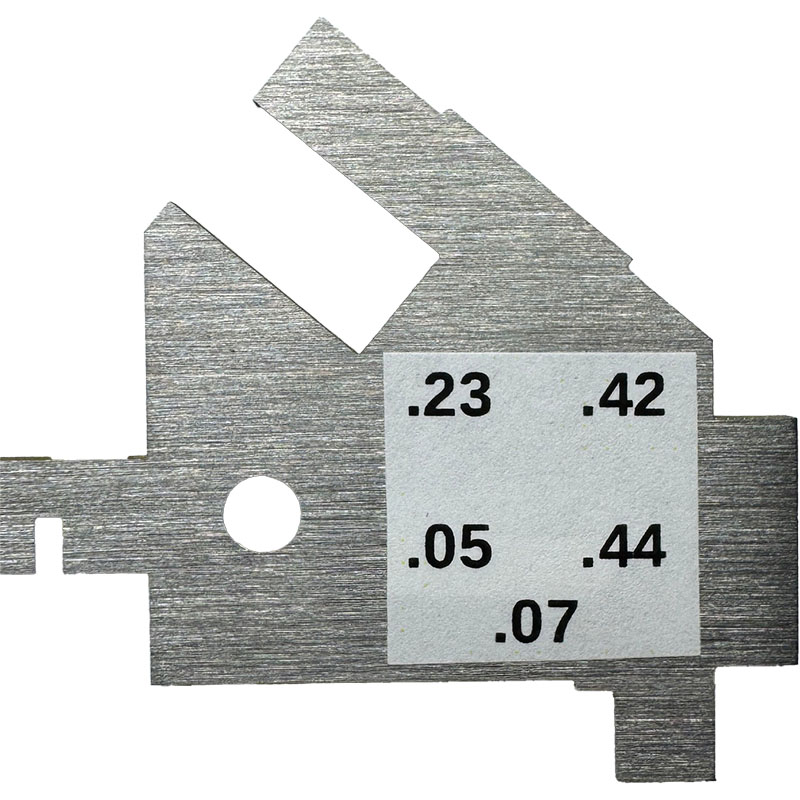

- Dimensions clearly identified on the tool

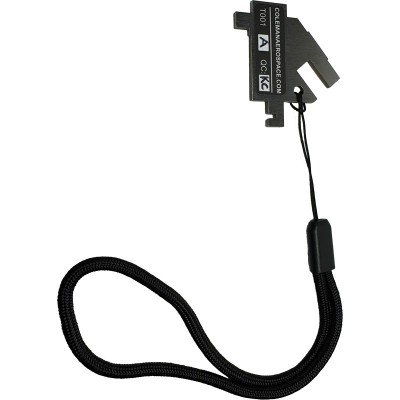

- Includes comprehensive instructions and lanyard
- Two additional reference dimensions on tool

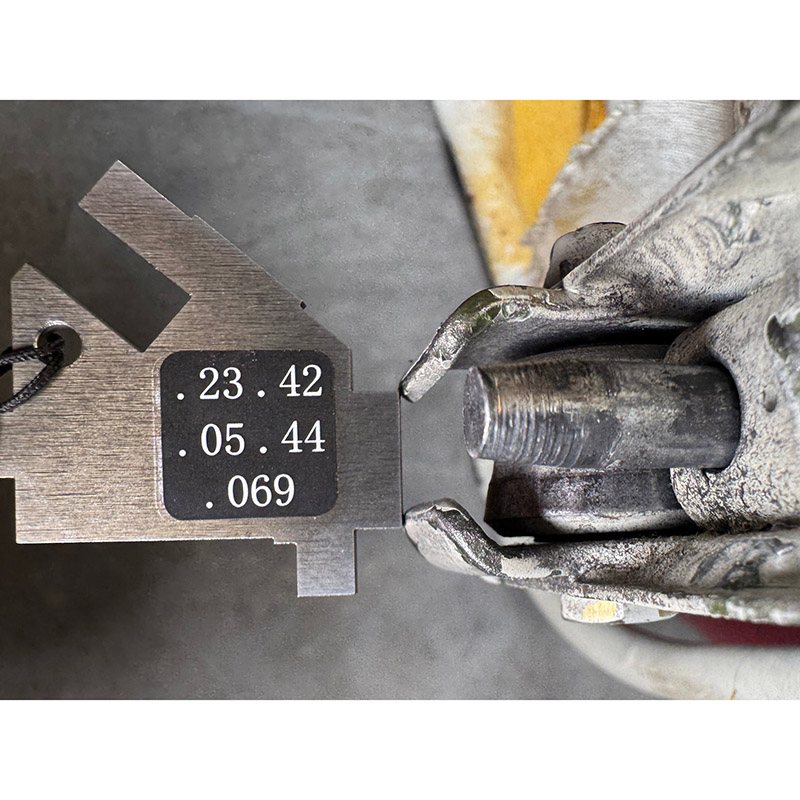

Specifications

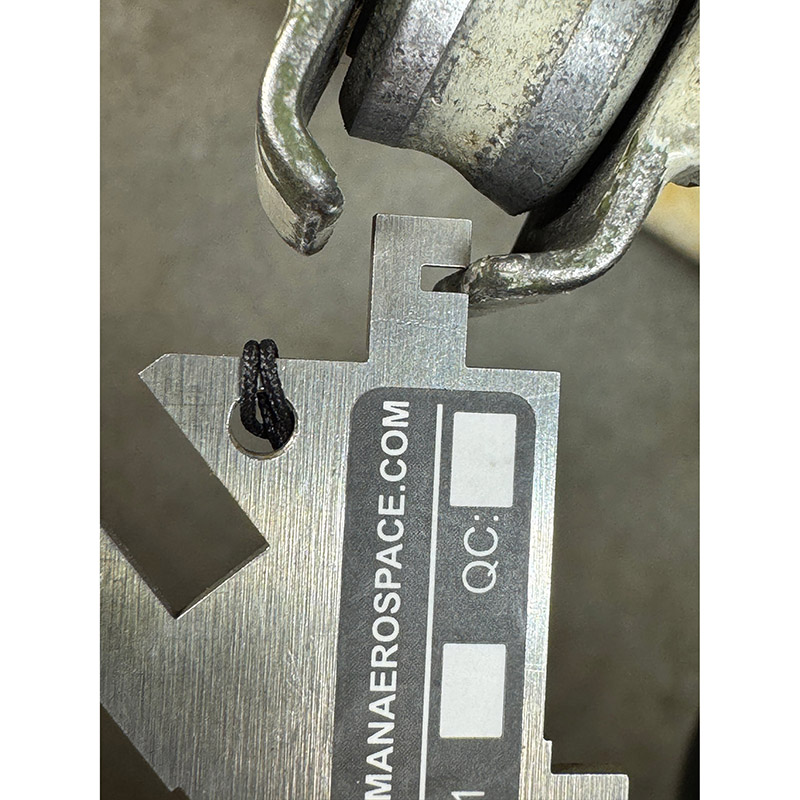

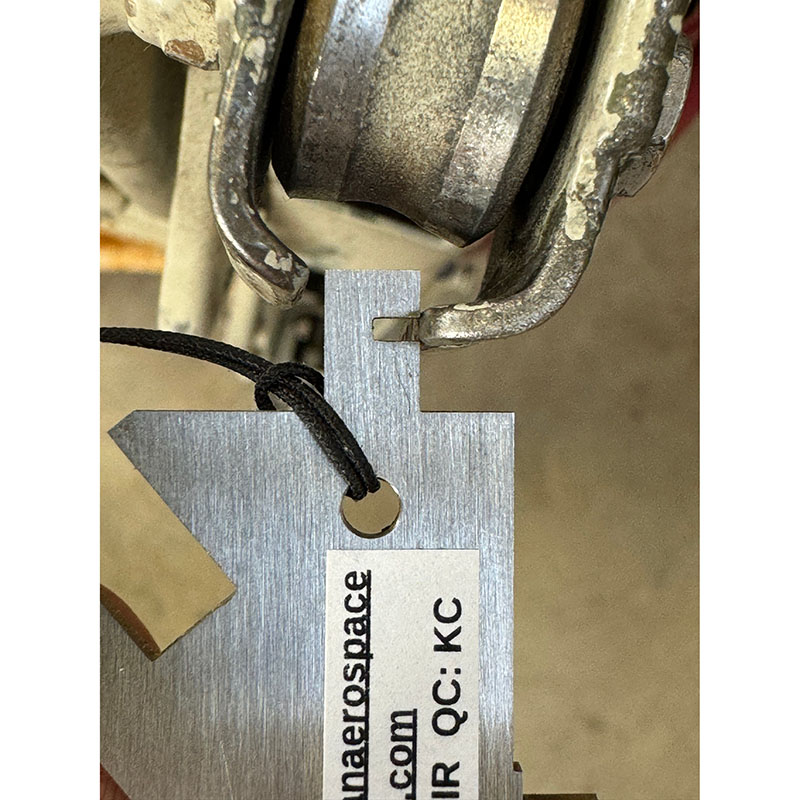

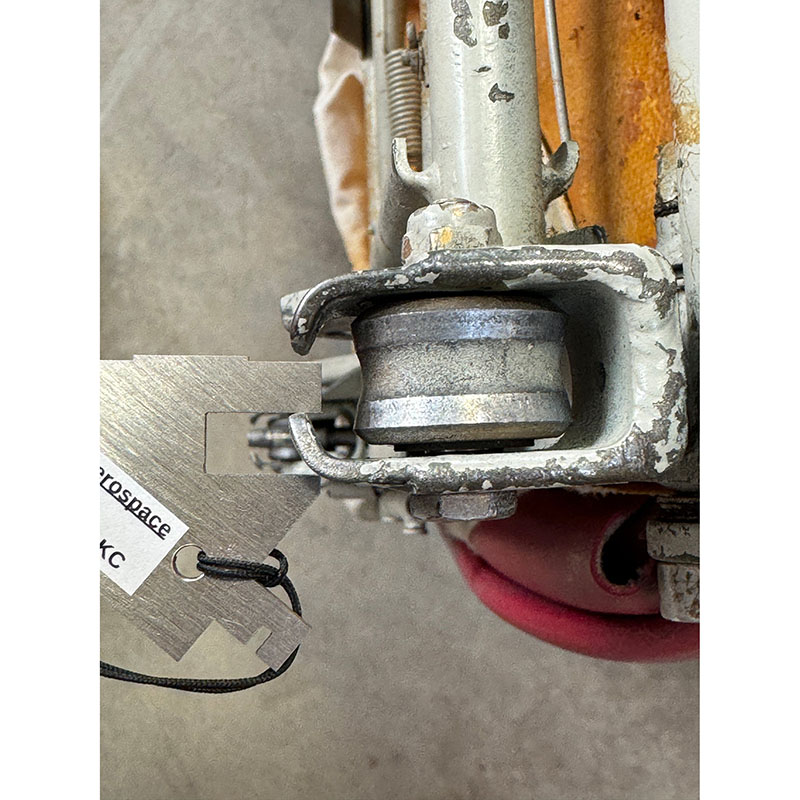

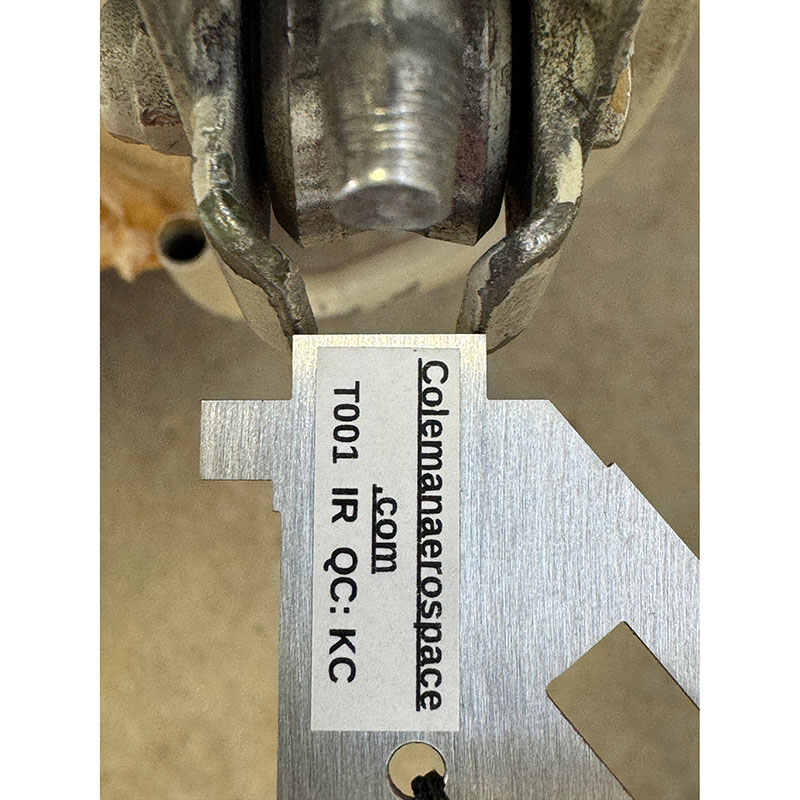

- Tang thickness: 0.050
- Tang length: 0.23

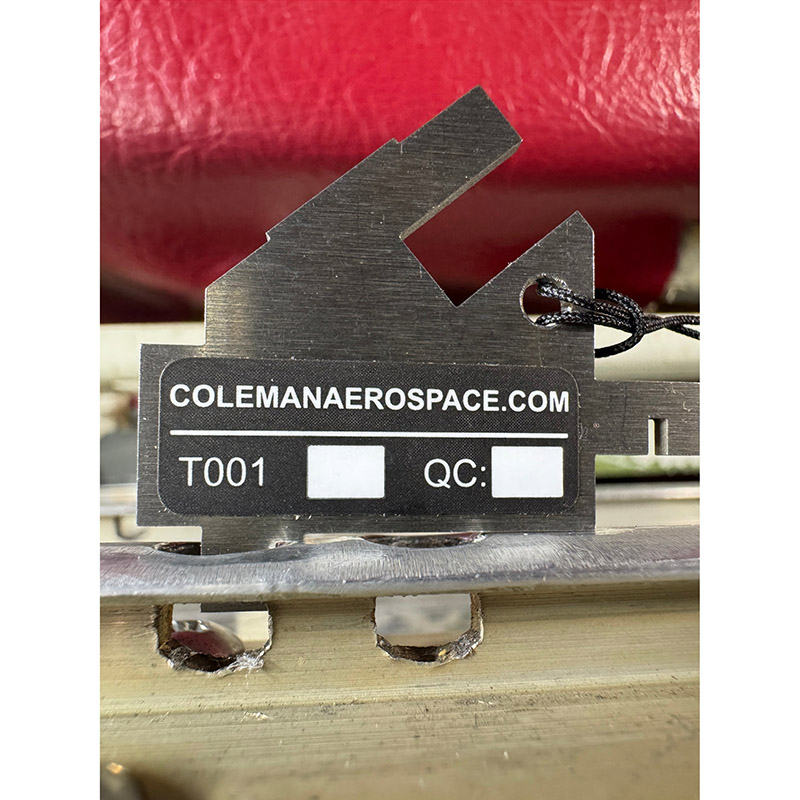

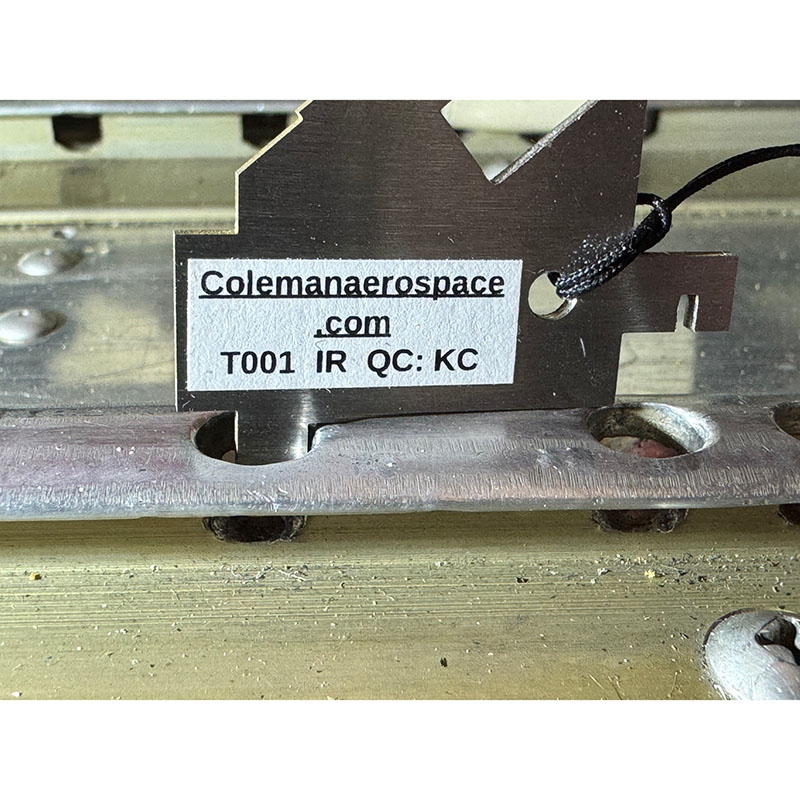

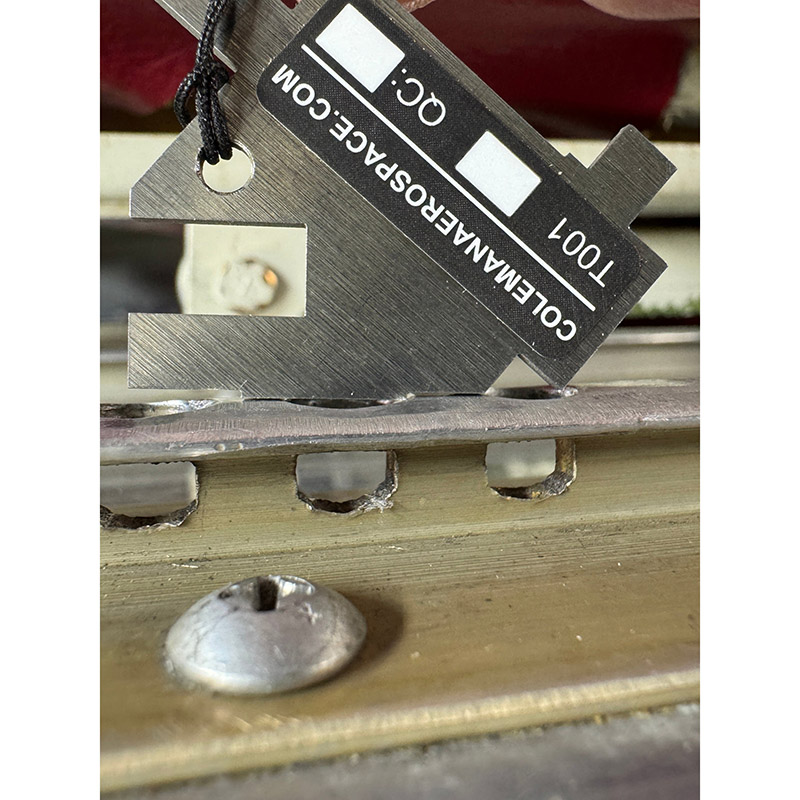

- Seat rail pin locking engagement hole diameter: 0.42 at 0.020 wear depth and radius of wear 0.069 (reference)

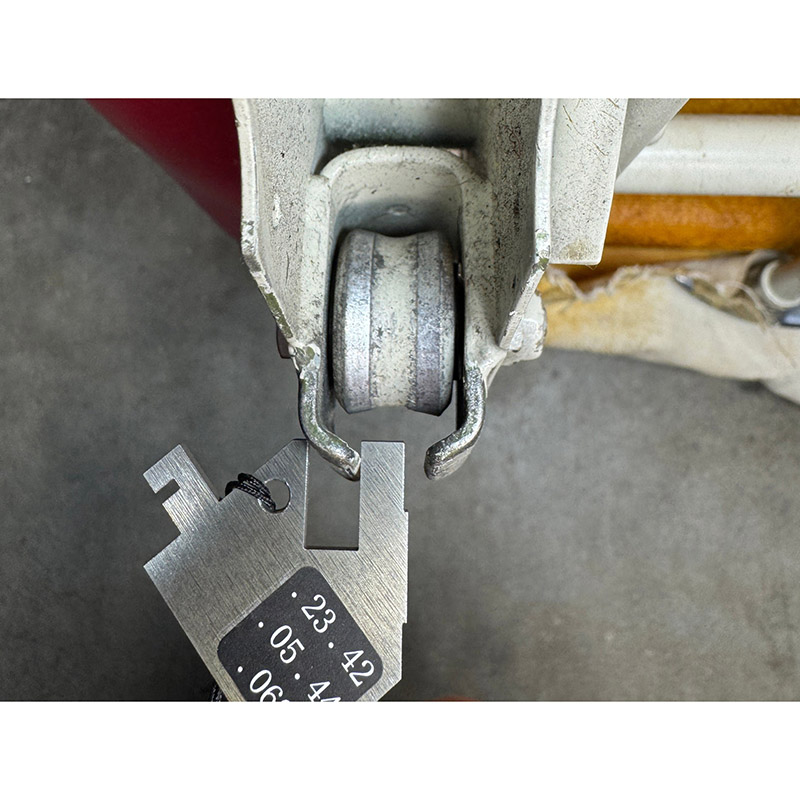

- Tang gap width: 0.44 (reference)
Applications
- Per the AD this tool applies to the Cessna Aircraft Company Models 150, 152, 170, 172, 175, 177, 180, 182, 185, 188, 190, 195, 206, 207, 210, T303, 336, and 337 Airplanes.
- Always refer to the most current revision of AD 2011-10-09 published by the FAA.
