No-Go Gage

$39.95/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-02861

Overview

The No-Go gage requires inspection of rollers; roller housings, seat rails, engagement pin, and attaching hardware. There are five measurements required for each pilot and co-pilot seat, these two tools will shorten the time to make these five measurements to minutes.

Specifications

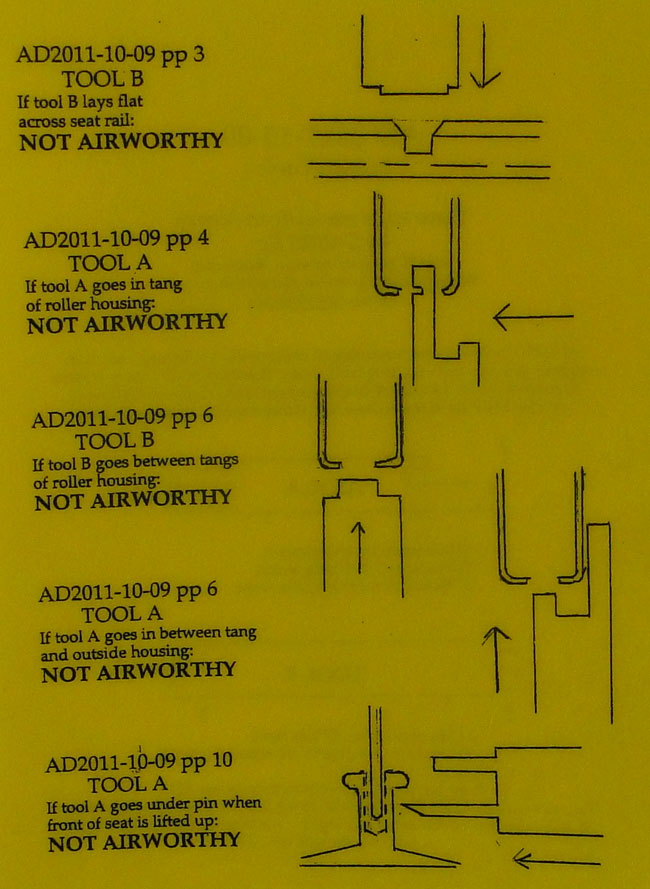

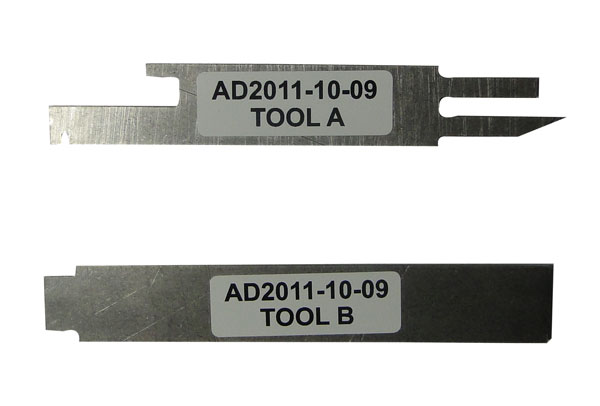

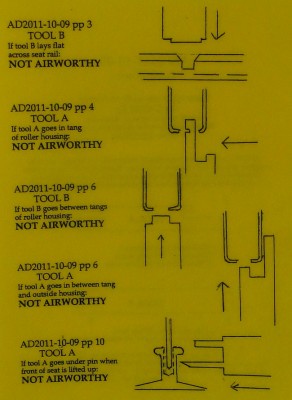

  • Tool A measures pin engagement, roller tang width, and roller tang thickness
  • Tool B measures seat rail hole wear and opening of roller housing tangs

Reviews

Excellent product ! Quick, easy, and exact way to inspect seats and seat rails. Highly recommend. All measurements can be checked in just a few minutes n

David M Verified Purchase

NO GO GAUGE TOOL

June 9, 2022

This made testing my seat rails and other parts extremely easy. With a certain other tool, it would have reported that I needed to replace a rail. This reports on diameter as instructed in the A.D.

Thomas B
November 3, 2021

very useful tool

Kenneth R Verified Purchase

NO GO GAUGE TOOL

October 13, 2021

Really makes the seat rail inspection easy.

Tom M Verified Purchase

NO GO GAUGE TOOL

August 2, 2021

Good directions included. easy to use.

Kenneth A
March 1, 2021

This works well, makes the inspection simple.

Taylor
September 14, 2019

Easy to use, quick, with simple directions.

Alaska A
January 22, 2019

Works great, lasts a long time. Good instructions.

Ccd A Verified Purchase

NO GO GAUGE TOOL

April 24, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What airframes is this no-go gage designed for? Looks like a great tool, but I don't see a guide for what year/make/model its designed for.

It is for the aircraft listed in AD2011-10-09. Cessna 150, 152, 170, 172, 175, 177, 180, 182, 185, 188, 190, 195, 206, 207, 210, T303, 336, and 337 series airplanes.
