Giga Flight Laser-Markable Arinc 429 Cable GF70-24A429

$7.50/Foot
Quantity
Add to Wishlist
Part# 11-19444
MFR Model# GF70-24A429

Overview

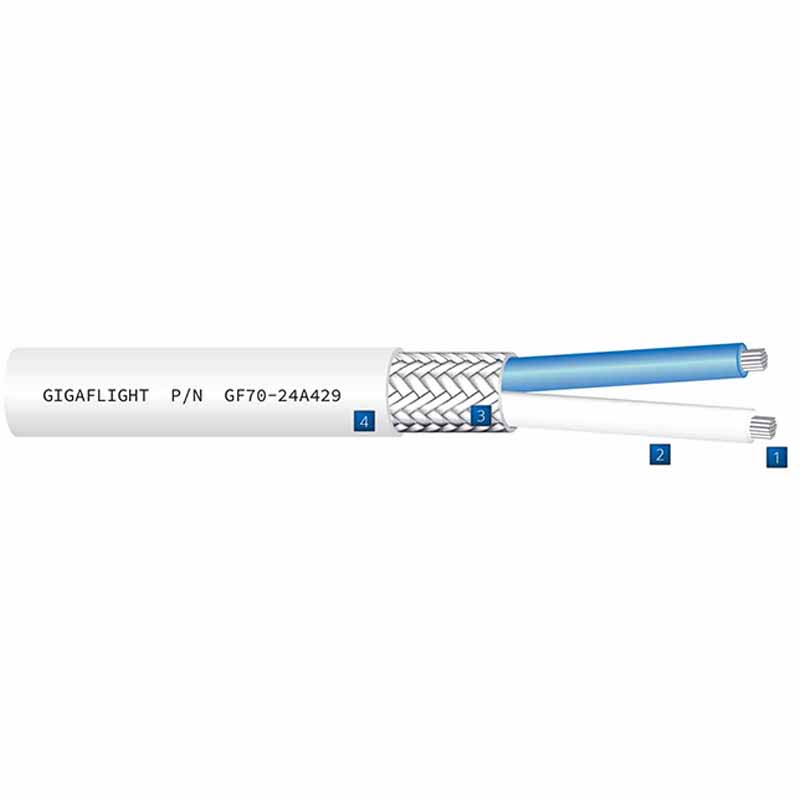

Giga Flight Laser-Markable Arinc 429 Cable GF70-24A429

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • Outer Diameter in (mm): 0.142 (3.56)
  • Weight lbs/1000ft (kg/1000m): 17 (25)
  • Operating Temperature: -55C to +150C
  • Minimum Bend Radius in (mm): 0.70 (17.78)
  • Impedence Ω: 70
  • Capacitance pF/ft (m): 30.0 (98.4)
  • VOP: 70%
  • DC Resistance Ω/1000ft (m): 26.2 (86.0)
  • Dielectric Voltage Rating kV RMS: 1.5
