Arinc 646 CAT 5 Data Bus Cable

$5.50/Foot
Quantity
Add to Wishlist
Part# 11-18304
MFR Model# 392404

Overview

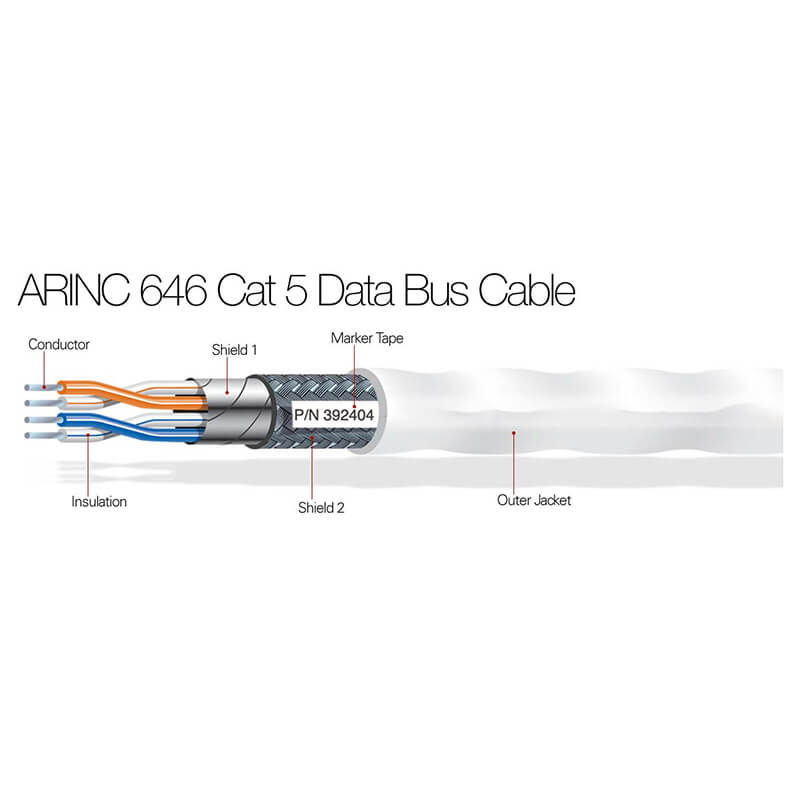

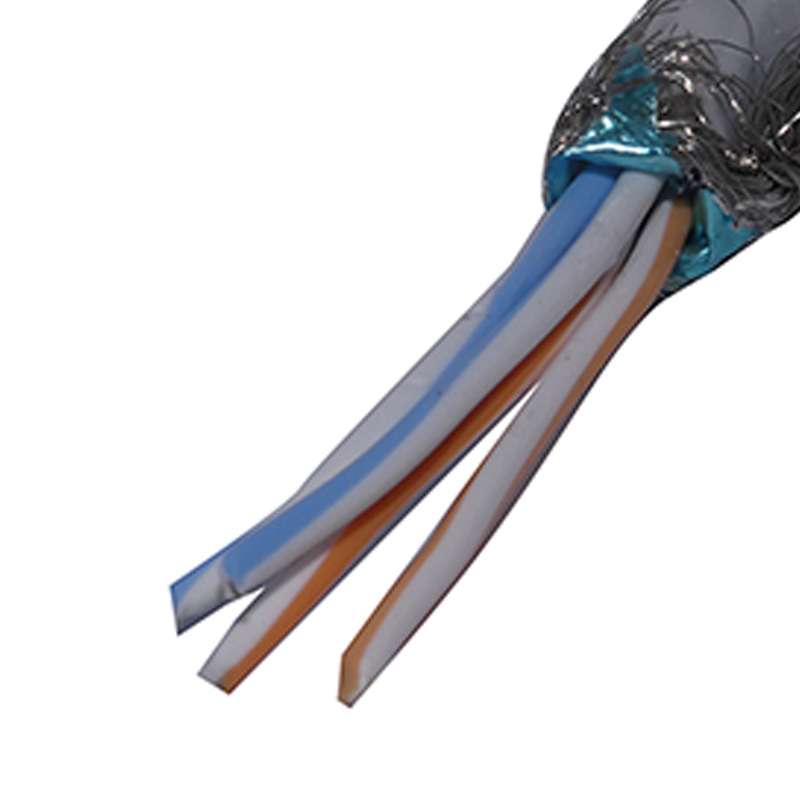

Carlisle ARINC 646 Cat 5 Data Bus Cable.
    Applications
  • ARINC 646, Cat 5, LAN, 10 Base T
    4 Conductors
      2 Twisted Pairs
    • Conductors: 24 AWG tin plated copper
    • Insulation: High temperature flouropolymer
      Color Code:
    • Pair 1: White/Blue, Blue/White
    • Pair 2: White/Orange, Orange/White
    Overall Cable:
  • Shield 1: Aluminum/Mylar foil
  • Shield 2: 38 AWG tin plated copper braid
  • Jacket: White high temperature flouropolymer (laser markable)
    Physical Characteristics
  • Outer Diameter: 0.234 inches nominal
  • Bend Radius: 1.2 inches nominal
  • Weight: 3.0 lbs/100 feet nominal
  • Temperature Range: -55° to +200° C
  • Skydrol Resistant: Yes
    Electrical Characteristics (each pair)
  • Impedance: 100 Ohms nominal
  • Capacitance: 12.4 pF/ft maximum
  • Velocity of Propogation: 78% nominal
  • Skew: 12.8 ns/100 ft BUS
  • Attenuation: 10 MHz 2.1 dB/100 ft nominal
