High-Pressure Brass Ball Valve 4112T22

$27.90/Each
Quantity
Add to Wishlist
Part# 05-06885
MFR Model# 4112T22

Overview

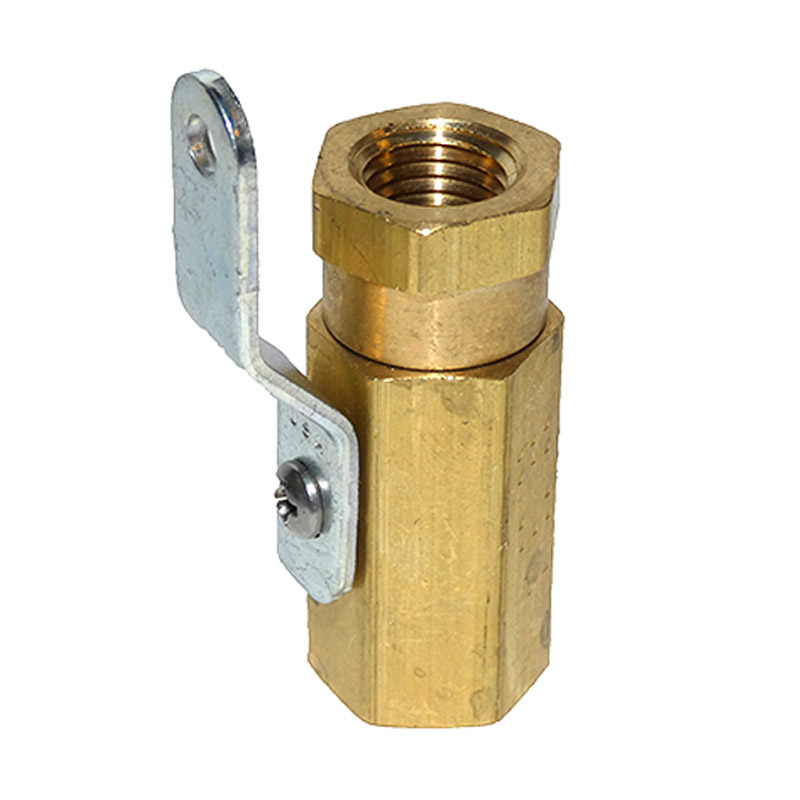

Compact High-Pressure Brass Ball Valve 4112T22.
Great for use in tight spaces, these compact valves are suitable for high-pressure applications. Connections are NPT. Body is brass, ball is nickel-plated brass, seats are PTFE, and seal is fluoroelastomer. Valves have unrestricted flow (full port).

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Female x Female
  • Pipe Size: 1/4"
  • End-to-End Lg.: 1 15/16"
  • Lever Handle
  • Max. Pressure for Water, Oil, and Inert Gas: 1000 psi @ 70°F
  • Max. Pressure for Steam: Not rated
  • Temp. Range: -40° to +300°F
  • Vacuum Rating: 29" Hg

Reviews

Alex A Verified Purchase

Compact High-Pressure Brass Ball Valves

May 2, 2024

Doesn’t leak yet, so that’s better then the one it replaced! Required a couple of AN-5 male fittings to fit my application.

Will M Verified Purchase

Compact High-Pressure Brass Ball Valves

February 27, 2024

What can you say about a ball valve ... it works (?) Aircraft Spruce, on the other hand ... always great service.

Paul A
September 29, 2018

Nice little valve good quality

William E
March 12, 2018

Its a great valve and one of good quality, however its not a full port valve as listed. A full port (or full bore) valve does not restrict flow, this valve does. By definition, a 1/4 full port valve would need to have the port (ball) opening of at least .364 to not restrict the flow (of standard schedule 40 pipe). This valve has an opening of slightly less than .250 (15/64), much less than .364. Thanks for listening. Stephen (Steve) Paradise

Stephen P
June 26, 2020
