STOP SLEEVES

2 Reviews 3 Answered Questions
From $0.35 to $0.65
Main Image
Main Image
Model No. Part No. Cable Dia. Price Buy
ST2-2
04-00899
1/16$0.35
Quantity
ST2-3
04-00901
3/32$0.48
Quantity
ST2-4
04-00902
1/8$0.48
Quantity
ST2-5
04-00903
5/32$0.65
Quantity
ST2-6
04-02061
3/16$0.65
Quantity
Subtotal $0.00
Add to Wishlist

Overview

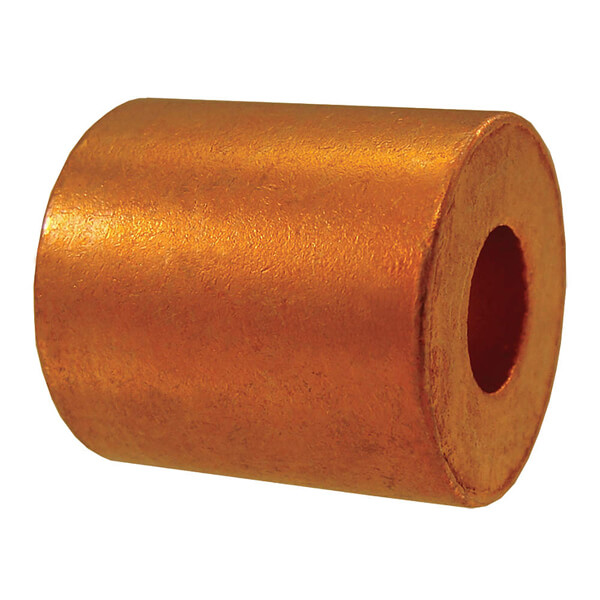

These copper stop sleeves are used on the ends of bare cables.

When properly applied with LocolocŪ Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions stop sleeves capable of holding only 1/3 to 1/2 of the rated breaking strength of the cable to which they are attached.

Specifications

Reviews

Submit a Review

Excellent. Easy to use

Edwin S
April 11, 2020

Stops are as described. Fast shipping

Dwight
October 22, 2019

Q&A

Submit
Q: Can the stops be used as cable stops to limit travel of control surfaces?

It is a swaged on cable to be used as a stop. The application, or location, of the stop to be determined by the builder.

Q: Do you stock a tool to compress nicopress stop / end sleeves (1/16, 3/32 and 1/8)?

Yes, part number 12-12400 will swage 1/16", 3/32, 1/8, 5/32, & 3/16" oval and stop sleeves, plus 7/32" stop sleeves.

Q: What is the outside diameter of ST2-2?

0.20 inches
