ZINC SLEEVE 28-1-C MS51844-22

Part# 05-03293
MFR Model# SL2-2P
Part No.
Sleeve Type
MS51844-2205-032931/16Zinc Plated

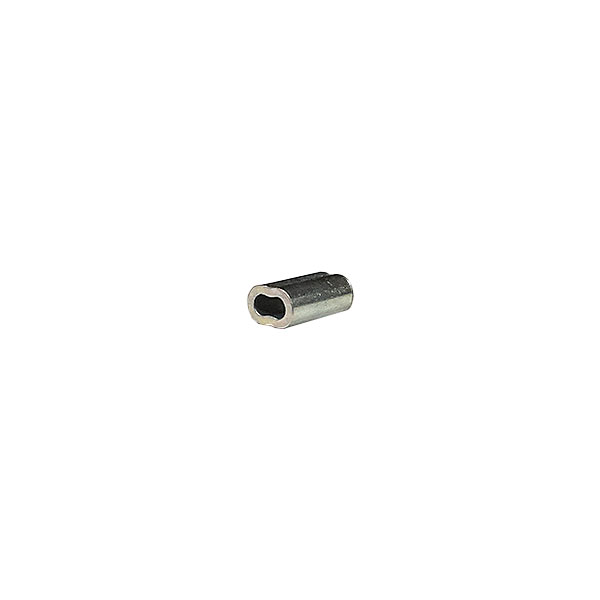

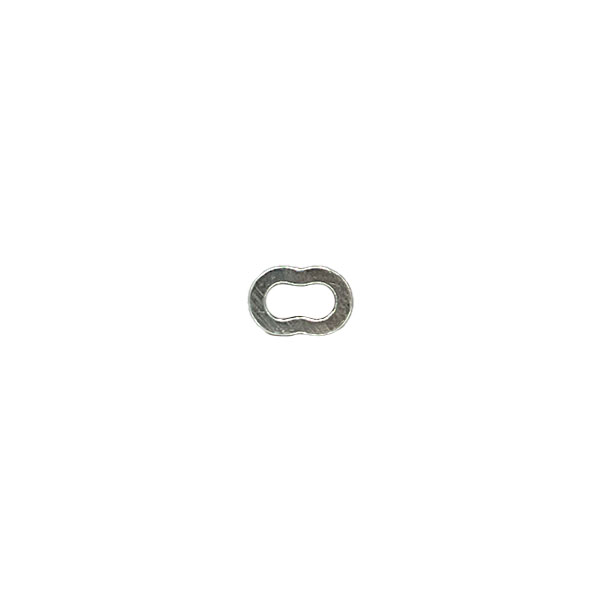

Oval shaped copper sleeves used in making eye or lap splices in flexible cable. Sleeves are slipped over the two strands of cable to be fastened and are then compressed with special Nicropress hand squeezers. Provides a bond that is even stronger than a standard splice. Plain copper and zinc coated sleeves are used with galvanized cable, and tin coated sleeves are to be used with stainless steel cable.

Refer to the documents tab for more details on these sleeves.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed


James G Verified Purchase

ZINC SLEEVE 28-1-C MS51844-22

January 30, 2024

Good product ,good service fast delivery

Edgardo G
January 25, 2021


Guest A
November 25, 2020

Great product.

Greg P
September 14, 2020

Worked very well.

April 20, 2020

Very nice product, speedy delivery

Robert A
March 22, 2020

Just what I needed

Kenneth T
March 5, 2020

Good pricing!

Thomas N
December 21, 2019

Exactly what I expected. Fast shipping.

October 22, 2019

Exactly what I expected. Fast shipping.

October 22, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which nicropress sleeves are used for stainless steel control cable?

Tin coated sleeves are used with stainless steel cable.

Q: Which tools are needed for fitting sleeves?

We have several installation tools to choose from. They are on page 775 of the 2013-2014 catalog. 12-12000, 12-12100, 12-12200, 12-12400, 12-00222, 12-02560, and 12-02561 are examples (see accessories). Verify the size tool will work with the sleeve to be used.

Q: Could you inform the procedure to installation the swaging sleeve MS51844-42 with the nicopress swaging tool 64-CGMP?

The proper cable sleeve swaging procedures are explained and illustrated in the FAA 43.13 acceptable, methods and practices publication.

Q: What is the part number for 1/4 inch diameter cable nicopress? You sell 1/4 inch cable, 1/4 inch thimbles, but I dont see the 1/4 inch nicopress...

See part # 04-01634

Q: What are zinc plated sleeves used for?

You would use zinc or tinned sleeves on stainless cables to avoid some corrosion issues.
