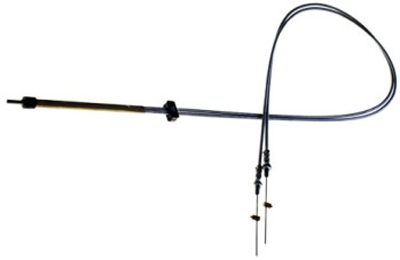

Quadrant Control Cables

0 Reviews 0 Answered Questions
From $206.95 to $257.95
Main Image
Description Part Number Price Buy
MCQ100D048 CONTROL QUADRANT DUAL 4FT
05-11273
$206.95
Quantity
MCQ100D072 CONTROL QUADRANT DUAL 6FT
05-11274
$217.95
Quantity
MCQ100D096 CONTROL QUADRANT DUAL 8FT
05-11275
$243.95
Quantity
MCQ100D144 CONTROL QUADRANT DUAL 12FT
05-11276
$257.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Quadrant Style Throttle Controls for Dual Carburetor 912/914 Series Rotax Engines
Innovative design allows a neat, clean installation without a clunky splitter box

These controls feature the same high quality construction and smooth operation as our popular MCT100D panel mount controls, but they are designed for use with a quadrant.

These controls are not for use on certified aircraft, or for flight controls or flight control trim tabs.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Quality stainless steel construction
  • High temperature Teflon™ lined conduit for smooth, consistent control (Cheapy controls with poly liners will not tolerate engine temperatures)
  • Available in 4, 6, 8, 12 foot and custom lengths
  • May be trimmed to length
  • Convenient dual conduit clamp for simple mounting
  • Versatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)
  • Adjustable cable stops to limit travel
  • Viton boot to dampen vibration and seal out dust on the quadrant end
  • Manufactured to the same quality standards as McFarlane's FAA-PMA controls

Specifications

  • Slip Fit Conduit Terminals: 2 each with M6x1-6g x 1.00 inch thread
  • Conduit: 0.188 inch OD Teflon™ lined wound conduit
  • Inner Wire: Heavy duty 0.062 inch diameter, 1x7 stainless steel twisted wire per MIL-DTL-87161
  • Travel (stroke): 4 inch maximum
  • Design Work Loads: Pull: 25 lbs maximum (not designed for push loads)
  • Operating Temperature: -65 to 450 deg F
  • Pushrod Thread (quadrant end): 10-32 UNF x 0.65"
