Timken Bearing Lm29749-20629 FAA-PMA

$97.75/Each
Quantity
Add to Wishlist
Part# 05-29749
MFR Model# LM29749-20629

Overview

Note: This part # 05-29749 is the bearing only. Cup is ordered separately.

The most basic and widely used tapered bearing, the single-row type consists of the cone assembly and the cup. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be set to the required clearance (endplay) or preload condition to optimize performance.

Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Approvals

  • CESSNA 650
  • AIR TRACTOR AT-300, AT-301, -302, -400A, AT-401, -401A
  • CESSNA 206
  • CESSNA 207
  • CESSNA 421C, 425
  • CESSNA 188, A188, 188A, A188A, 188B, A188B, T188C
  • CESSNA 177, 177RG
  • PIPER PA-28-180, PA-28-181, PA-28-235, PA-28-236
  • PIPER PA-34-200T SENECA II
  • PIPER PA-34-220T SENECA II
  • PIPER PA-38-112 TOMAHAWK
  • PIPER PA-31-350 CHIEFTAIN
  • PIPER PA-31-300, PA-31-325, PA-31-350
  • PIPER PA-31T
  • RAYTHEON 58P, 58TC, B60
  • RAYTHEON B19, C23
  • RAYTHEON 77
  • REIMS F177RG
  • REIMS AVIATION FA152
  • TWIN COMMANDER 690B, 690C, 695, 695A
  • WACO YMF
  • WEATHERLY AVIATION CO. 201A, 201, 201C, 620, 620A, 620TP, 620B

Reviews

Timken is the best!

Wayne S Verified Purchase

TIMKEN BEARING LM29749-20629 FAA-PMA

October 24, 2023

Freeland A
April 5, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these bearings FAA-PMA approved?

Yes, our part # 05-29749, is FAA-PMA Approved.

Q: The description states that included are the bearing and the cup. Is the cup part # LM29710?

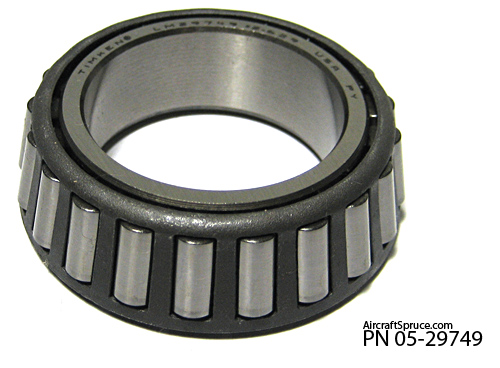

This is just the bearing shown in the photo. Part number 08-12392 is the FAA approved cup.
