APPROACH SPORT HUB AVIONICS WIRING SYSTEMS

From $48.95 to $545.00
Steps Description Sport + Spot Lite
Cable PN
Spruce
Part No.
Price Buy
Select Approach Hub Sport Lite Hub for basic instrument panel configuration N/A 11-01457 $199.95
Quantity
Sport Hub for VFR instrument panel configurations N/A 11-01458 $372.95
Quantity
Pro Hub for IFR instrument panel configurations N/A 11-01459 $545.00
Quantity
Pro G Hub for Garmin Stacks N/A 11-01893 $489.95
Quantity
Pro X Hub for IFR EFIS Centric instrument panel configurations N/A 11-15887 $545.00
Quantity
Select Approach Cables for your Avionics Cable for KMA24 7110-0111 11-01461 $102.95
Quantity
Cable for KMA28 7110-0151 11-01462 $102.95
Quantity
Cable for GMA340 7110-0131 11-01463 $149.95
Quantity
Cable for PM4000 7110-0121 11-01464 $102.95
Quantity
Cable for Intercom 7110-0121 11-01465 $48.95
Quantity
Cable for Null Plug 7110-0141 11-01466 $56.00
Quantity
Cable for SL60 7110-0331 11-01468 $136.95
Quantity
Cable for GNC250XL 7110-0341 11-01469 $148.95
Quantity
Cable for GNS430 7110-0342 11-01470 $250.95
Quantity
Cable for KLX125A 7110-0352 11-01471 $89.95
Quantity
Cable for KLX135A 7110-0351 11-01472 $89.95
Quantity
Cable for KI208 7110-0421 11-01473 $102.95
Quantity
Cable for ARGUS 3000 7110-0431 11-01474 $102.95
Quantity
Cable for 360 Map 7110-0411 11-01475 $102.95
Quantity
Encoder Cable for AK350-KT76 7100-0451 11-01516 $98.00
Quantity
Single Ended Cable for Generic 15 7100-0452 11-01517 $90.25
Quantity
Single Ended Cable for Generic 25 7100-0453 11-01518 $48.95
Quantity
Single Ended Cable for Generic 37 7100-0454 11-01519 $58.95
Quantity
Single Ended Cable for Generic 44 7100-0455 11-01520 $72.95
Quantity
Single Ended Cable for Generic 78 7100-0456 11-01521 $104.95
Quantity
Cable, intercom, stub for DRE244E 7101-0210 11-01522 $68.95
Quantity
Cable, intercom, 2-pl for PS1000 7101-0212 11-01523 $89.95
Quantity
Cable, intercom, 4-pl for PS1000 7101-0214 11-01524 $148.95
Quantity
Cable, intercom, 2-pl for PS3000 7101-0222 11-01525 $148.95
Quantity
Cable, intercom, 4-pl for PS3000 7101-0224 11-01526 $148.95
Quantity
Cable, intrcom, 6-pl for PS3000 7101-0226 11-01527 $199.95
Quantity
Cable, intercom, 2-pl for PS6000 7101-0232 11-01528 $102.95
Quantity
Cable, intercom, 4-pl for PS6000 7101-0234 11-01529 $271.95
Quantity
Cable, intercom, 6-pl for PS6000 7101-0236 11-01530 $199.95
Quantity
Cable, intercom, 2-pl for PS7000 7101-0242 11-01531 $102.95
Quantity
Cable, intercom, 4-pl for PS7000 7101-0244 11-01532 $140.00
Quantity
Cable, intercom, 6-pl for PS7000 7101-0246 11-01533 $199.95
Quantity
Cable, intercom, 2-pl for KMA28 7101-0252 11-01534 $102.95
Quantity
cable, intercom, 4-pl for KMA28 7101-0254 11-01535 $129.95
Quantity
Cable, intercom, 6-pl for KMA28 7101-0256 11-01536 $174.95
Quantity
Cable, intercom, 2-pl GMA340 7101-0262 11-01537 $102.95
Quantity
Cable, intercom, 4-pl for GMA340 7101-0264 11-01538 $148.95
Quantity
Cable, intercom, 6-pl for GMA340 7101-0266 11-01539 $199.95
Quantity
APPROACH PRO KMA-20 CABLE 7120-0101 11-01476 $102.95
Quantity
APPROACH PRO KMA-24 CABLE 7120-0111 11-01477 $102.95
Quantity
APPROACH PRO KMA-28 CABLE 7120-0151 11-01478 $102.95
Quantity
APPROACH PRO GMA340 CABLE 7120-0131 11-01479 $149.00
Quantity
APPROACH PRO SL15 CABLE 7120-0132 11-01480 $102.95
Quantity
APPROACH PRO PM 4000 CABLE 7120-0121 11-01481 $232.95
Quantity
APPROACH PRO INTERCOM CABLE 7120-0121 11-01482 $48.95
Quantity
APPROACH PRO NULL PLUG CABLE 7120-0141 11-01483 $48.95
Quantity
APPROACH PRO KX155A CABLE 7120-0311 11-01484 $168.75
Quantity
APPROACH PRO KX165A CABLE 7120-0312 11-01485 $154.95
Quantity
APPROACH PRO SL60 CABLE 7120-0331 11-01486 $109.95
Quantity
APPROACH PRO GX60 CABLE 7120-0332 11-01487 $125.95
Quantity
APPROACH PRO GX50 CABLE 7120-0333 11-01488 $125.95
Quantity
APPROACH PRO SL30 CABLE 7120-0334 11-01489 $157.95
Quantity
APPROACH PRO GNC250XL CABLE 7120-0341 11-01490 $129.95
Quantity
APPROACH PRO GNC 300XL CABLE 7120-0344 11-01496 $129.95
Quantity
APPROACH PRO GNS 420 CABLE 7120-0345 11-01497 $199.95
Quantity
APPRAOCH PRO GNS 430 CABLE 7120-0342 11-01508 $290.95
Quantity
APPROACH PRO GNS 530 CABLE 7120-0343 11-01498 $399.00
Quantity
APPROACH PRO KLX125A CABLE 7120-0352 11-01499 $102.95
Quantity
APPROACH PRO KLX135A CABLE 7120-0351 11-01501 $93.00
Quantity
APPROACH PRO KI206 CABLE 7120-0422 11-01502 $102.95
Quantity
APPROACH PRO KI208 CABLE 7120-0421 11-01503 $102.95
Quantity
APPROACH PRO KI209 CABLE 7120-0425 11-01504 $99.95
Quantity
APPROACH PRO MD200 CABLE 7120-0423 11-01505 $99.95
Quantity
APPROACH PRO GI106A CABLE 7120-0424 11-01506 $102.95
Quantity
APPROACH PRO ARGUS 3000 CABLE 7120-0431 11-01507 $89.95
Quantity
APPROACH PRO 360 MAP CABLE 7120-0411 11-01509 $89.95
Quantity
APPROACH PRO SN3308 CABLE 7120-0411 11-01510 $102.95
Quantity
APPROACH PRO KI525 CABLE 7120-0442 11-01511 $102.95
Quantity
APPROACH PRO MX20 CABLE 7120-0443 11-01512 $113.95
Quantity
APPROACH PRO SL70 CABLE 7120-0501 11-01513 $82.25
Quantity
APPROACH PRO GTX 327 CABLE 7120-0511 11-01514 $102.95
Quantity
APPROACH PRO ACU CABLE 7120-0601 11-01515 $148.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Approach products are designed to modernize aircraft avionics installation and upgrade process making avionics installs fast, cost-effective and safe. Simply install the appropriate Approach hub for your instrument panel (basic, VFR or IFR), select the appropriate Approach cables for your avionics, and plug it in and your done. Upgrading and replacing avionics only requires a new Approach cable and future maintainability is greatly enhanced eliminating most hand writing and troubleshooting. All cabling is Milspec Tefzel and complies with FAA AC43-13B.

Reference Chart

Step 1: Select the appropriate Approach Hub for your instrument panel configuration.
Sport Life Hub for basic instrument panel configuration - The Sport Lite Hub Systems is an all-inclusive hub and cable solution enabling you to install a GPS/Com and intercom in record time and designed for pilots that don't require a full panel, just a single radio and intercom. Perfect for kit planes, sport-life planes, & aerobatic aircraft.
Sport Hub for VFR instrument panel configurations - The Sport Hub and Cable System is compatible with most NAV/GPS/Com (single & dual), modern audio panels, intercoms, moving map displays, VOR indicators and any other RS-232 formatted device.

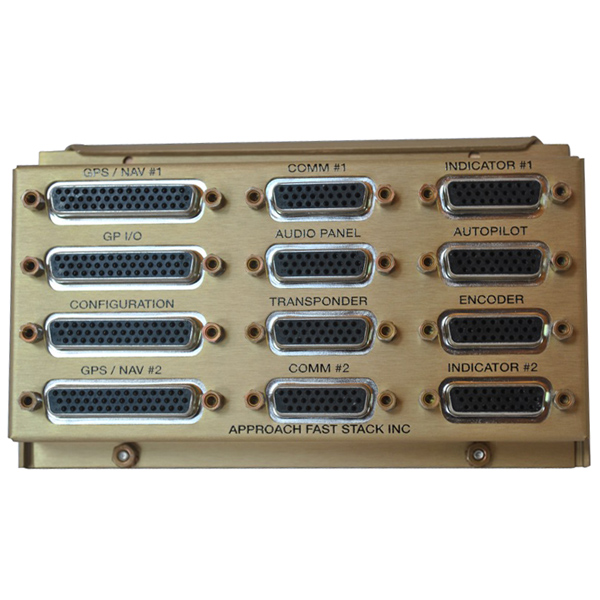

Pro Hub for IFR instrument panel configurations - The Pro Hub and Cable system is designed for a full Garmin, Apollo, or King/Bendix stack. The Pro Hub system is compatible with most NAV/GPS/Com (single & dual), modern audio panels, auto pilots, intercoms, moving map displays, VOR indicators, HSIs, RMIs, ADFs, annunciators, mode control and any other RS-232 formatted device.
Pro G Hub for Garmin Stacks
Step 2: Now choose the Approach cables for your specific avionics. Note that certain cables work only with certain Approach Hubs. Cables for the same avionics have different part number for different hubs. Call us if you do not see the cable require. Approach continually releases new cables. The Approach Sport Lite Hub is bundled with and only supports two Approach cables.

Approach Cables

Sport & Sport Lite Cable P/N
Our Sport/ Sport Lite P/N
KMA24
Cable
7110-0111
11-01461
KMA28
Cable
7110-0151
11-01462
GMA340
Cable
7110-0131
11-01463
PM4000
Cable
7110-0121
11-01464
Intercom
Cable
7110-0121
11-01465
Null Plug
Cable
7110-0141
11-01466
KX155A
Cable
7110-0311
11-01467
SL60
Cable
7110-0331
11-01468
GNC250XL
Cable
7110-0341
11-01469
GNS430
Cable
7110-0342
11-01470
KLX125A
Cable
7110-0352
11-01471
KLX135A
Cable
7110-0351
11-01472
KI208
Cable
7110-0421
11-01473
ARGUS 3000
Cable
7110-0431
11-01474
360 Map
Cable
7110-0411
11-01475
Approach Cables Generic Family
AK350-KT76
Encoder Cable
7100-0451
11-01516
Generic 15
Single Ended Cable
7100-0452
11-01517
Generic 25
Single Ended Cable
7100-0453
11-01518
Generic 37
Single Ended Cable
7100-0454
11-01519
Generic 44
Single Ended Cable
7100-0455
11-01520
Generic 78
Single Ended Cable
7100-0456
11-01521
Approach Cables Intercom Family
DRE244E
Cable,intercom, stub
7101-0210
11-01522
PS1000
Cable,intercom, 2-pl.
7101-0212
11-01523
PS1000
Cable, intercom, 4-pl.
7101-0214
11-01524
PS3000
Cable, intercom, 2-pl.
7101-0222
11-01525
PS3000
Cable, intercom, 4-pl
7101-0224
11-01526
PS3000
Cable, intercom, 6-pl
7101-0226
11-01527
PS6000
Cable, intercom, 2-pl.
7101-0232
11-01528
PS6000
Cable, intercom, 4-pl.
7101-0234
11-01529
PS6000
Cable, intercom, 6-pl.
7101-0236
11-01530
PS7000
Cable, intercom, 2-pl.
7101-0242
11-01531
PS7000
Cable. intercom, 4-pl.
7101-0244
11-01532
PS7000
Cable, intercom, 6-pl.
7101-0246
11-01533
KMA28
Cable, intercom, 2-pl.
7101-0252
11-01534
KMA28
Cable, inercom, 4-pl.
7101-0254
11-01535
KMA28
Cable, intercom, 6-pl.
7101-0256
11-01536
GMA340
Cable, intercom, 2-pl.
7101-0262
11-01537
GMA340
Cable, intercom, 4-pl.
7101-0264
11-01538
GMA340
Cable, intercom, 6-pl.
7101-0266
11-01539


Pro Cable Part No.
Our Pro Cable P/N
Hub & Cable Compatibility
--
Sport Lite
Sport
Pro
7120-0101
11-01476
7120-0111
11-01477
7120-0151
11-01478
7120-0131
11-01479
7120-0132
11-01480
--
7120-0121
11-01481
7120-0121
11-01482
7120-0141
11-01483
7120-0311
11-01484
7120-0312
11-01485
--
7120-0331
11-01486
7120-0332
11-01487
--
--
7120-0333
11-01488
--
--
7120-0334
11-01489
--
--
7120-0341
11-01490
7120-0344
11-01496
--
--
7120-0345
11-01497
--
--
7120-0342
11-01508
7120-0343
11-01498
--
--
7120-0352
11-01499
7120-0351
11-01501
7120-0422

11-01502

--
--
7120-0421
11-01503
7120-0425
11-01504
7120-0423
11-01505
--
--
7120-0424
11-01506
--
--
7120-0431
11-01507
7120-0411
11-01509
7120-0411
11-01510
--
--
7120-0442
11-01511
--
--
7120-0443
11-01512
--
--
7120-0501
11-01513
--
--
7120-0511
11-01514
--
--
7120-0601
11-01515
--
--
7100--0451
11-01516
7100-0452
11-01517
7100-0453
11-01518
7100-0454
11-01519
7100-0455
11-01520
7100-0456
11-01521
7101-0210
11-01522
7101-0212
11-01523
7101-0214
11-01524
7101-0222
11-01525
7101-0224
11-01526
7101-0226
11-01527
7101-0232
11-01528
7101-0234
11-01529
7101-0236
11-01530
7101-0242
11-01531
7101-0244
11-01532
7101-0246
11-01533
7101-0452
11-01534
7101-0454
11-01535
7101-0456
11-01536
7101-0462
11-01537
7101-0464
11-01538
7101-0466
11-01539

Reviews

Incredibly clean and simple install. Avionics wiring harnesses are as quality as you can get. I was able to isolate all avionics wiring separate from the airframe wiring, greatly simplifying future troubleshooting and repair of airframe systems. However, Iâm so impressed with the quality of the avionics install, I doubt I will ever see any problems in the harness assemblies themselves. Hats off to an idea that has been long overdue in the aviation industry.

Kenlon S
May 13, 2019
