Comant UHF Antenna CI-275

Connector:
BNC Connector - CI 275TNC Connector - CI 275-2N Connector - CI 275-5
Quantity
Add to Wishlist

Overview

Frequency 406-512 MHz

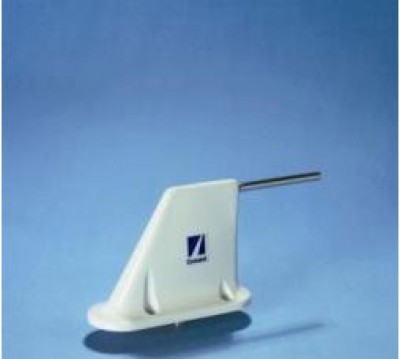

Wide band UHF antenna designed for high-performance aircraft over the full frequency range of 406-512 MHz. Low profile, blade-type antenna is encased in a low drag, low weight molded body to ensure high reliability. The CI 275 comes standard with a BNC connector. Other connectors available. See order option chart. Color is white standard.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 275 SERIES UHF ANTENNA
Electrical
Frequency
406-512 MHz
VSWR
2.0:1 Maximum
Polarization
Vertical
Radiation Pattern

Equivalent of ¥ë / 4 Stub

Impedance
50 Ohms
Power RF
50 Watts Average
Mechanical
Weight
0.5 lb. Maximum
Height
3.5 in. Maximum
Finish
Polyurethane Enamel
Material
Lexan Housing
Connector
BNC (Female)
Environmental
Temperature
-55¨¬C to +70¨¬C
Altitude
50,000 ft.
Air Speed
600 Knots TAS @ 25,000 ft
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I need Cobham CI-275 antenna. Is the COMANT CI-275 same product?

Yes, the Comant CI-275 works in the same applications as the Cobham CI-275. They are interchangeable.
