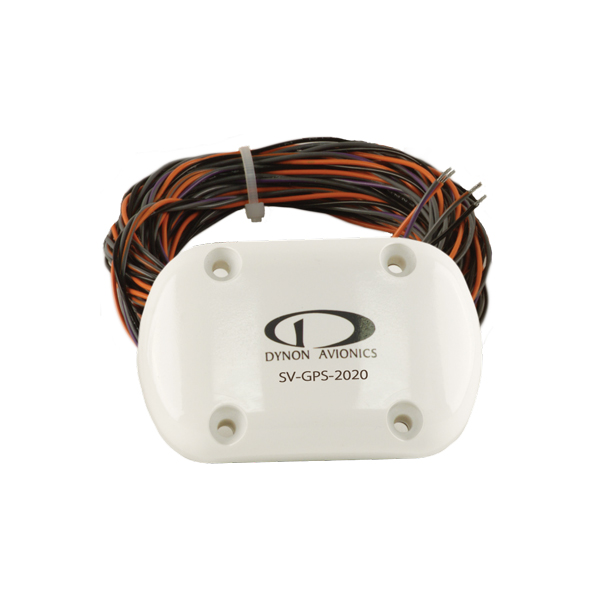

DYNON SKYVIEW SV-GPS-2020 GPS / ADS-B RECEIVER

$575.00/Each
Part# 10-05909
MFR Model# 102749-000

Overview

The SV-GPS-2020 GPS Receiver/Antenna from Dynon Avionics allows existing and SkyView and Advanced AF-5000 series customers to add a 2020-compliant GPS position for ADS-B Out. As a drop-in replacement for the existing SVGPS-250 receiver, existing customers do not need to run any additional wires, coax, or install any new boxes in their aircraft.

When combined with Dynons SV-XPNDR-261 Mode-S transponder, SkyView and Advanced Flight Systems customers meet all the transponder and ADS-B Out requirements. Pilots can also add the SVADSB-470 Traffic and Weather Receiver for the best possible situational awareness in their aircraft.

Features

  • GPS Navigation
  • Synthetic Vision
  • 2-Axis Autopilot
  • High Resolution Terrain
  • Redundancy
  • Pilot-Designed Interfaces
  • Engine Monitoring
  • Worldwide Navigation Data
  • Weather
  • Traffic
  • ARINC-429
  • Mode-S Transponder (with ADS-B Out)
  • 3-Year Warranty
  • Integrated COM Radio
  • 2-Place Stereo Intercom

Specifications

  • Size: 2.19 W x 0.75 H x 3.44 D
  • Weight: 7 oz
  • Maximum Velocity: 400 knots
  • Update Rate: 4 Hz
  • Temperature: Storage -40 C to +70 C
  • Operating -30 C to +60 C
  • Source Integrity Level (SIL): 3
  • Interface: 115,200 baud RS-232 NMEA
  • Output w/ integrity dataTransponder Compatibility: SV-XPNDR-261
SV-GPS-2020 + SV-XPNDR-261 System
  • System Design Assurance (SDA): 2
  • Compliance: Meets FAR section 91.225, 91.227 and performance requirements of TSO-c166b
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

The new Dynon GPS was easy to install and works great. Aircraft Spruce service also great.

Michael L
April 25, 2019

Quick shipping, easy online ordering.

Jimmie B
February 10, 2019

Q&A

Q: Does installation manual come with Dynon gps 2020?

No it does not. That installation instruction can be found in the dynon skyview instructions.

Q: What size are the flathead screws that mount the antenna?

Per the manual it states you need #8 screws with 100 degree countersunk heads.
