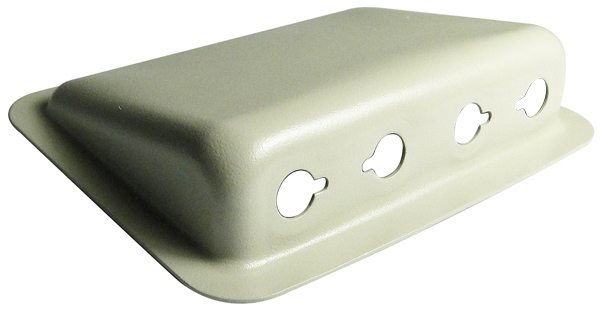

4 Hole Surface Mounted Mic & Phone Jack Housing

Select Model:
Black Wrinkle FinishTan Wrinkle FinishAluminum (with Holes)Aluminum (No Holes)
Quantity
Add to Wishlist

Overview

If panel space is scarce or you'd prefer to locate your headphone jacks in a more convenient spot, this housing is perfect. Mounts flush to any flat surface. Heat-treated aluminum with a powder coat finish. Jacks not included(See electrical section). This is the housing ONLY.

Specifications

  • Dimensions: 3.75" W X 5.0" L X 1.13" H (to outer edge of flange)
  • Mount with (4) small screws (hardware not included)
  • Holes: .380 dia. x 1.0" between centers
  • Weight: 40 grams

Reviews

This is a very nice stamped part with excellent finishing. I needed the headset jack holes plus two stereo jacks for Music In and Audio Recorder out. This was the perfect solution over bending up one from sheet stock. The flanges were just a bit narrow for me, but I was still able to fit 6-32 pan head screws to mount it.

Rick K
December 12, 2019

Love this for my C150, mounted in the center under panel. very good construction! And price!

Michael B
June 24, 2018

Arrived on time. Item as expected.

Edward A
March 17, 2021

My main complaint with this is that the angle between the surface that holds the headset jacks and the back surface of this part is less than 90 degrees. This causes the headset plugs to hit the back surface making them difficult to install and remove. Secondly the exterior surface should be wider which would make it easier to secure. Other than that, its a great invention.

Paul R
January 25, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of cable is acceptable to run to the jacks in this housing? Should it have Tefzel insulation? Thank you

Yes, tefzel wire will work great for the jacks.
