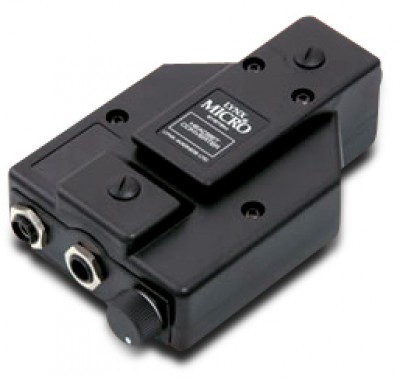

Lynx Avionics Headset Converter (Twin Jack)

$345.00/Each
Quantity
Add to Wishlist
Part# 11-09306
MFR Model# M070

Overview

The Headset Converter (Twin Jack) is for use with aviation headsets or helmets fitted with standard twin jack plugs and allows the headset or helmet to connect to a Lynx Micro System Radio/Power Interface.

The converter will allow virtually any twin jack military or general aviation headset or helmet to be used in aircraft which have Lync Micro System equipment installed.

The converter can be configured to work with speaker impedance from 8 to 600 Ohms and dynamic electric or carbon (Amplified) microphones. Active Noise Reduction (ARN) headsets can be powered form the converter using the tip of the microphone jack plug.

The Converter is backwards compatible with all Micro System products and maintains all of the power/radio interface functions including selective PTT operation and microphone muting.

The Converter effectively transforms the Micro System Radio/Power Interface into a high quality general aviation intercom system and is very useful in syndicated aircraft where some users wish to retain the use of the general aviation headset or helmet

The Converter is also useful for pilots of Vintage aircraft as it allows classic helmets to be used with State of the Art intercom system and modern radios including hand held radios.

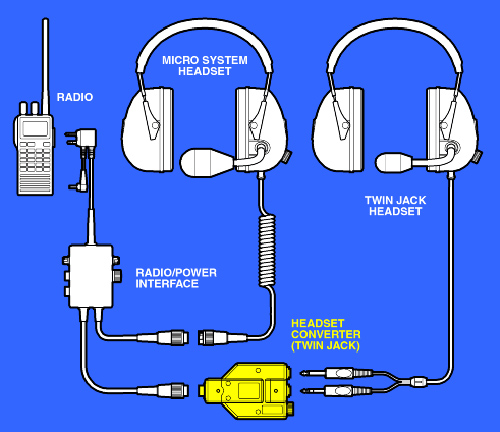

Schematic Diagram

Download the Instruction Sheet (PDF)
Download the Configuration Instructions (PDF)
Download the Fixing Kit Instruction Sheet (PDF)


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Connects twin jack headset or helmet
  • Works with speakers from 8 to 600 Ohms
  • Accepts dynamic, electret or carbon microphones
  • ANR power to microphone jack tip
  • Headset volume control
  • Maintains selective PTT operation and muting
  • Water resistant bayonet locking connector
  • Supplied with fixing kit

Reviews

My old hand-held radio and headset date back to the 80s. Theyre GA (I was using them for sailplanes/motorgliders), and now I have a new interest in ultralight trikes to get back into soaring. Turns out that micro-systems are popular/standard in LSA, so this is exactly what I needed for some dual-time in a 2-seater. It just plugs right in and works!

Tom
November 7, 2017
