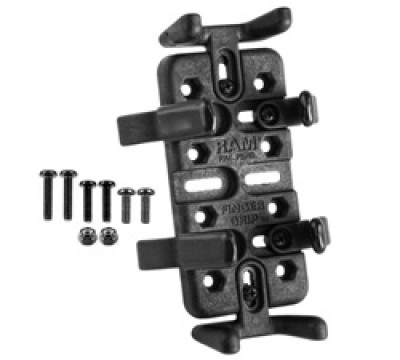

Adjustable RAM Cradle For Two-Way Radios / Mobile Devices
MFR Model# RAM-HOL-UN4U
Overview
| The RAM Composite Universal Finger Grip Holder is designed to hold a large amount of cell phones and electronic devices. The holder comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount. The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including samsung accessories and lg accessories. The spine plate contains the universal AMPs and 1.5" x 2" hole patterns. |
Compatibility
- Cell Phones (check measurements below for dimensions)
- 2-Way Radios
- GPS Devices
- Works with OtterBox (Defender, Commuter, Impact) Cases, Phones with Bumper, Twisted Metal Case and More
- Perfect rugged solution for the Blackberry, HTC Evo, Droid X, iPhone, and More
- Use on your Motorcycle, ATV, UTV, Car, Boat and More
Specifications
- Height Dimensions:
Minimum with Top and Bottom Plates: 5.25"
Maximum with Top and Bottom Plates: 6.0"
The top and bottom plates can be removed for larger devices. - Spine Plate Dimensions: 3" Width x 3" Height
- Using Short Arm Side Clamps:
Maximum Depth: 0.75"
Minimum Width: 1.25"
Maximum Width: 3.0" - Using Medium Arm Side Clamps:
Maximum Depth: 1.25"
Minimum Width: 1.5"
Maximum Width: 3.5" - Using Long Arm Side Clamps:
Maximum Depth: 1.6"
Minimum Width: 2.25"
Maximum Width: 3.5" - Material: High Strength Composite
- Note: Packaged in poly bag. RAM holders do not include the RAM-B-238U (Diamond Base and Ball, part number 11-00471) or RAP-B-238U (Diamond Composite Base and Ball), required to attach to the holder and RAM mounting system.
Documents
Videos
Reviews
Not a bad holder, although it is difficult even with the variety of various length fingers to get everything positioned and hold a handheld radio with out interfering with components of the radio itself
Verified Purchase
RAM CRADLE 2 WAY RADIO
Holds portable transceiver as advertised. Only problem is you have to shift radio up or down to keep mount fingers from pressing ptt or other side mounted radio controls. If you slide it up radio doesnt sit on bottom bracket, even if you install small one. Grip is tight enough that it holds radio firmly. In my case a Yaesu fta-750l and Sportys PJ2. Ill eventually glue a cushion of some type to bottom bracket to give radio support.
