Mid-Continent Remote Switching Relay Unit

From $1232.00 to $1278.00
Model Number Description Part Number Price Buy
MD41-24424-pole, 14V, TSO
10-06793
$1232.00
Quantity
MD41-24824-pole, 28V, TSO
10-06016
$1278.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

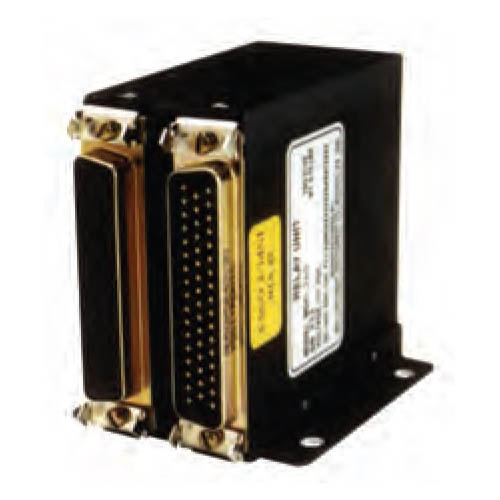

This remote-mounted 24-pole unit features eight nitrogen-filled relays (3 poles per relay) with gold-plated contacts. Ideal for GPS/VOR transfer and audio switching applications, this unit provides unequaled integrity with fail-safe fault monitoring through interlocking of all internal relays.

Features

  • Remote mounted 24-pole unit features eight Nitrogen-filled relays (3 poles per relay) with Gold-plated contacts
  • Ideal for GPS/VOR transfer and audio switching applications
  • Relays are activated individually by voltage or ground keying or as a group by ground keying
  • FAA PMA Approved (certified to 55,000 ft.)
  • Versatile Mounting - Horizontal, Vertical or flat mount configurations
  • Fail-safe fault monitoring through interlocking of all internal relays
  • Adjustable dimmer output for external annunciations
  • Quality MIL-SPEC connector kit included

Specifications

  • Width: 2.86"
  • Height: 1.52"
  • Depth: 2.6"
  • Weight: .75lbs
