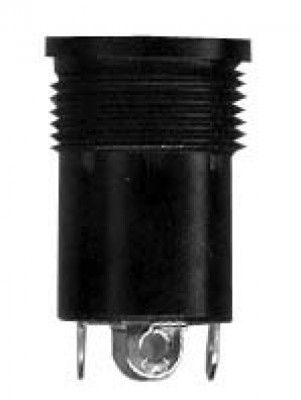

HELICOPTER FRONT MOUNT JACK - TJT-120

$12.80/Each
Part# 11-09334
MFR Model# TJT-120

Overview

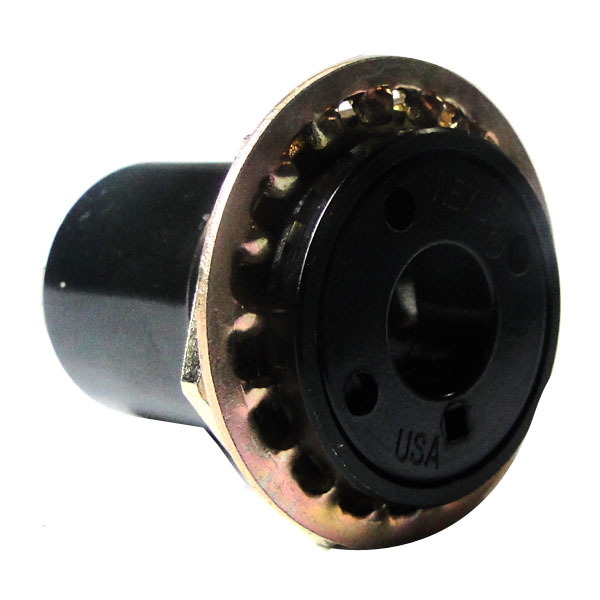

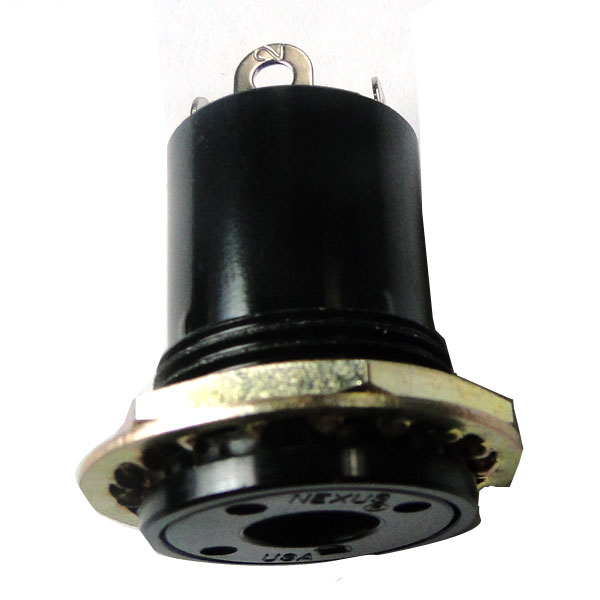

Mates with NEXUS Series TP-120 plugs and plugs TP-101 and TP-102. Same material and construction as the TJ-120. Jack housing is threaded for front mounting by screwing into threaded mounting hole or by inserting into front of panel and securing with nut and lockwasher from behind.

Documents

  • Customers Also Viewed
  • Frequently Purchased With

Reviews

High quality part, and very well made. Aircraft Spruce shipped these to me very quickly. Price is better than some other electronics parts houses.

Rob H
June 24, 2017

Just the part I was looking for. There was great communication by Aircraft Spruce and item was sent out quickly. I would be happy to do business again with them.

Ted
March 16, 2017

Ordered 2 and it appeared to be real Nexus parts. The price is right but one of the jacks were broken. When ever I plugged my headsets, one of the leafs would pop out of position causing problems. If you order, order more than you need just in case this happens to you.

Hae
June 19, 2020

Q&A

Q: What size hole would be required to fit this helicopter front mount jack TJT-120 into a panel?

The panel cut out diameter is 11/16".

Q: Is the TJT-120 panel jack supplied with the nut and washer?

Yes, this will include the nut and washer.

Q: What are the pin numbers?

This plug mates with NEXUS Series TP-120 plugs and plugs TP-101 and TP-102.

Q: Does this connector provide stereo capabilities? I have a Lightspeed Zulu.2 with single U/174 connector.

Per the manufacturer this will allow for stereo headsets to be used.

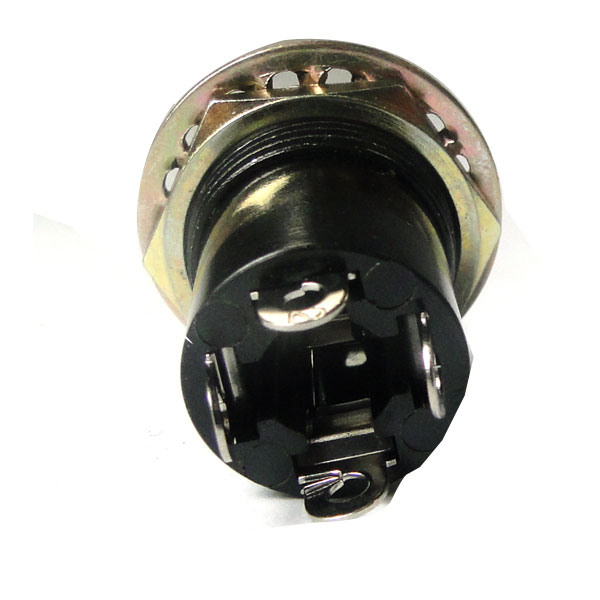

Q: Are the 4 connections marked so you can tell which one is tip and so on.

Yes, they are marked 1-4.
