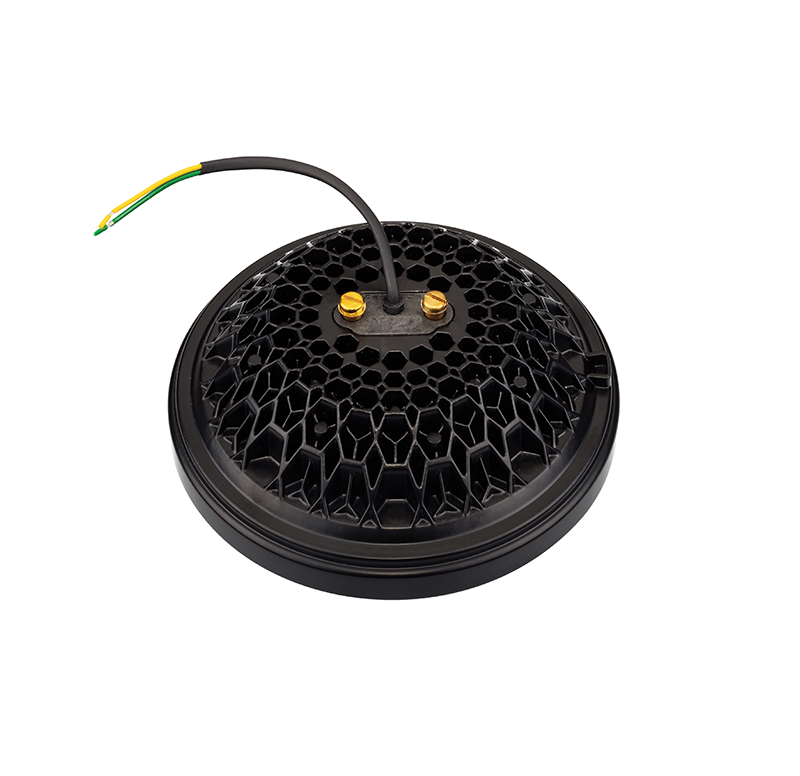

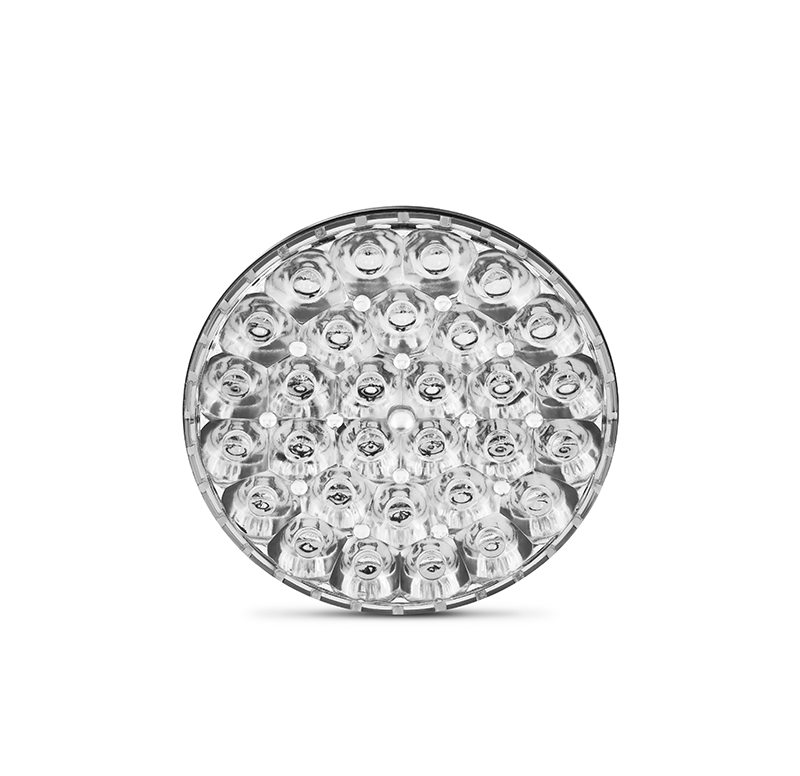

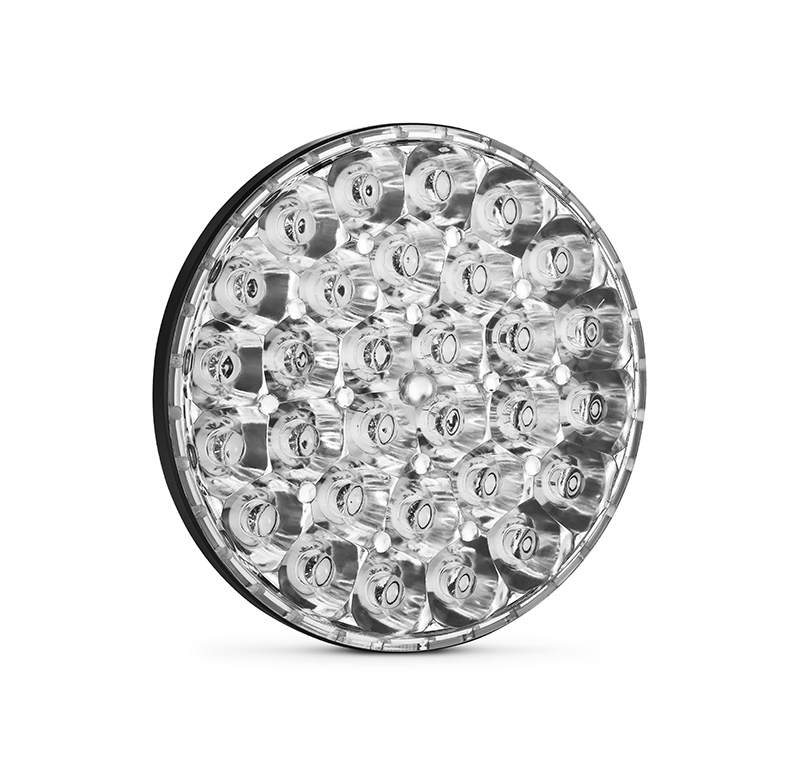

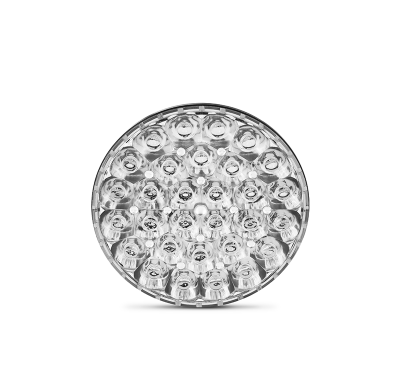

AeroLEDs SunSpot 46 Equinox Dual-Function LED Landing and Taxi Light

Select Voltage:
12V24V
Quantity
Add to Wishlist

Overview

Equinox is the industries first dual-function landing and taxi light, providing a tailored lighting experience when operating both at night, during the day, and in conditions of reduced visibility. The perfect solution for single light applications or a multi-light installation where additional light is desired. SunSpot Equinox consumes less power, output more lumens, and are not affected by vibrations compared to incandescent bulbs.
In landing mode, it outputs a bright white beam for high-speed take-offs and landing to improve visibility both on the ground and in the air. While in taxi mode it produces a wider beam spread for unmatched illumination of the runway/taxiway without impairing the vision of other pilots. SunSpot 46 Equinox replacement LED's utilize the existing PAR46 mount and electrical connections with only a Double Pole Double Throw (DPDT) Switch needed for dual modes.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Part Number 01-2230-LT-12 (11-19692) 01-2230-LT-24 (11-19693)
Color White White
Voltage 12 24
Power 145w Landing / 135w Taxi 175w
Wigwag Yes Yes
Synchronization Yes Yes
Lumens 15,950 19,250
Candela 230,000 Landing / 50,000 Taxi
Beam Profile 20 x 20 Landing / 20 x 50 Taxi 20 x 20 Landing / 20 x 50 Taxi
Length 5.6 5.6
Width 5.6 5.6
Depth 1.9 1.9
Weight 22 oz 22 oz
